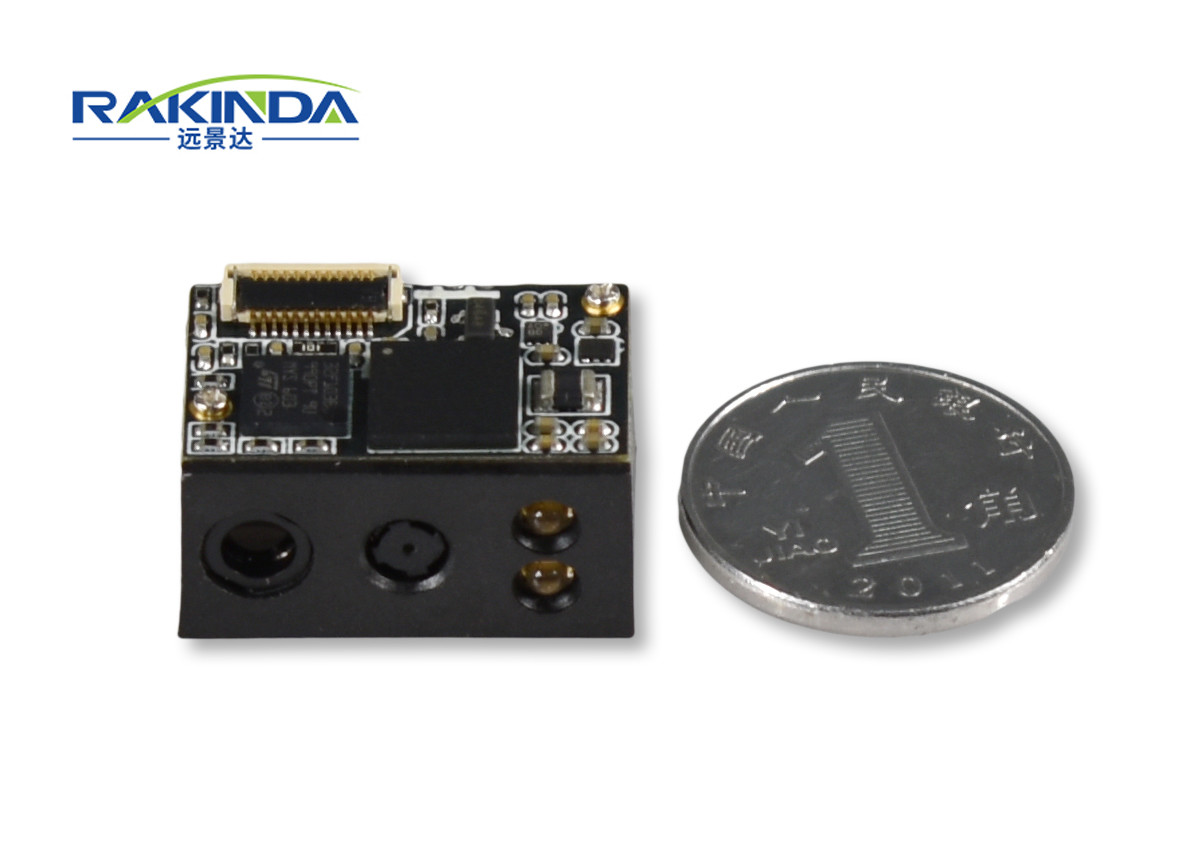

Smallest 2D Barcode Scanner Module LV3296 for Mobile POS / PDA / Smartphone

Smallest 2D Barcode Scanner Module LV3296 for Mobile POS / PDA / Smartphone

    • Smallest 2D Barcode Scanner Module LV3296 for Mobile POS / PDA / Smartphone
    • Smallest 2D Barcode Scanner Module LV3296 for Mobile POS / PDA / Smartphone
  • Smallest 2D Barcode Scanner Module LV3296 for Mobile POS / PDA / Smartphone

    Product Details:

    Place of Origin: China
    Brand Name: RAKINDA
    Certification: FCC,CE,Rosh
    Model Number: LV3296-01

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: 17*14*7cm
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 10000 pcs per month
    Contact Now
    Detailed Product Description
    Name: Barcode Scanner Module To Scan Qr Code Type: OEM Scan Engine
    Symbologies: 1D/2D Reading Mode: CMOS
    Interface: TTL232 Wireless: None
    Category: Compact Size, Excellent Performance Dimensions: 21.2(W)×14(D)×11.1(H)mm
    Weight: 4g Operating Voltage: 3.3 VDC±10%
    Image Sensor: 640×480 CMOS

    Smallest 2D Barcode Scanner Module LV3296 for Mobile POS / PDA / Smartphone





    RAKINDA (Rakinda Technologies Co., Ltd) is a company established in 2000. Our offices are located at GuangZhou, Shenzhen, Xiamen, Suzhou and Beijing. With Auto ID technology as our major focus, we are devoted to provideing enterprise-grade competitive IoT solutions and serves for clients.



    RAKINDA has been devoted to Auto-ID industry for 17 years and we have mature system in providing application solutions and R&D service. We have professional R&D team and we have strong technical support and rich experience in intelligent firmware R&D. Our core firmware products in mobile payment and intelligent community have been used successfully in public transport, logistics, manufacturing sector, shops, catering industry, medical industry and government public service area and receive good market feedback.



    FEATURES
    Miniature and Ultralight Form Factor
    1. Ultra-compact, light and integrator-friendly, the LV3296 caters for miniaturization needs of OEM applications.

    Multiple Interfaces
    2. The LV3296 supports USB and TTL-232 interfaces to meet diverse customer needs.

    Two-In-One Design

    3. Seamless integration of image sensor and decoder board makes the scan engine small, lightweight and easy to fit into even the most space-constrained equipment.

    Outstanding Power Efficiency

    4. The advanced NLDC technology incorporated in the scan engine helps reduce the powerconsumption and prolong the service life of the device.

    Application Scenarios (as an accessory)

    5. Self-service cabinets used in e-commerce,express delivery services and smart homes; ATMs; kiosks; queue machines;lottery machines; certificate makers.
    Smallest 2D Barcode Scanner Module LV3296 for Mobile POS / PDA / Smartphone

    SPECIFICATIONS

    Performance Image Sensor 640×480 CMOS
    Illumination Red LED 625±10 nm
    Aiming Red LED 625±10 nm
    Symbologies 2D PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140), Chinese Sensible Code
    1D Code 128, UCC/EAN-128, AIM128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited, RSS-Expand)
    Resolution* ≥4mil
    Typical Depth of Field* EAN-13 50mm-365mm (13mil)
    Code 39 40mm-165mm (5mil)
    Data Matrix 35mm-115mm (10mil)
    QR Code 35mm-145mm (15mil)
    PDF 417 45mm-115mm (6.67mil)
    Symbol Contrast* ≥25%
    Scan Angle** Roll: 360°, Pitch: ±50°, Skew: ±50°
    Field of View Horizontal 44°, Vertical 33.2°
    Mechanical/ Interface TTL-232, USB (HID-KBW, COM Port Emulation, HID-POS)
    Electrical Rated Power Consumption 437mW (typical)
      Operating Voltage 3.3 VDC±10%
      Current@3.3VDC Operating 141mA (typical), 198mA (max.)
      Standby 10mA
      Sleep <10uA
      Dimensions 21.2(W)×14(D)×11.1(H)mm
      Weight 4g
    Environmental Operating Temperature -20℃ to 50℃(-4°F to 122°F)
    Storage Temperature -40℃ to 70℃(-40°F to 158°F)
    Humidity 5% to 95% (non-condensing)
    Ambient Light 0~100,000lux
    Certifications   FCC Part15 Class B,CE EMC Class B
      EVK Software development board, equipped with a trigger button, beeper and RS-232 & USB interfaces.
    Accessories Cable USB Used to connect the EVK to a host device.
      RS-232 Used to connect the EVK to a host device.
      Power Adapter DC5V power adapter used to provide power for the EVK

    Smallest 2D Barcode Scanner Module LV3296 for Mobile POS / PDA / Smartphone




    FAQ
    Q1: What is your payment method?
    A1: We accept online credit card, TT, Paypal, Western Union.
    Q2: Can I visit your factory:
    A2: Yes, you are warmly welcome.
    Q3: How long is your warranty time:
    A3: 1 Year.
    Q4: Where can we download the user manual of the scanners?
    A4: We will send by email after you get samples.
