| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Brand Name: | RAKINDA |
| Certification: | CE, RoHS |
| Model Number: | RD4500I |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotiation |
| Packaging Details: | barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam. |
| Delivery Time: | within 5 working days after receiving the balance |
| Payment Terms: | Western Union, T/T, paypal |
| Supply Ability: | 1000 PCS/ week |
| Product Category: | Barcode Scanner Auto 2D Module | Wireless: | None |
|---|---|---|---|
| Stock: | Yes | Light Source: | White Light |
| Image Sensor: | 752×480 CMOS | Humidity: | 5% - 95% （ Non-condensing ） |
| Color: | Black | Certification: | FCC Part15 Class B, CE EMC Class B |
| Highlight: | qr barcode scanner,smartphone barcode scanner |
||

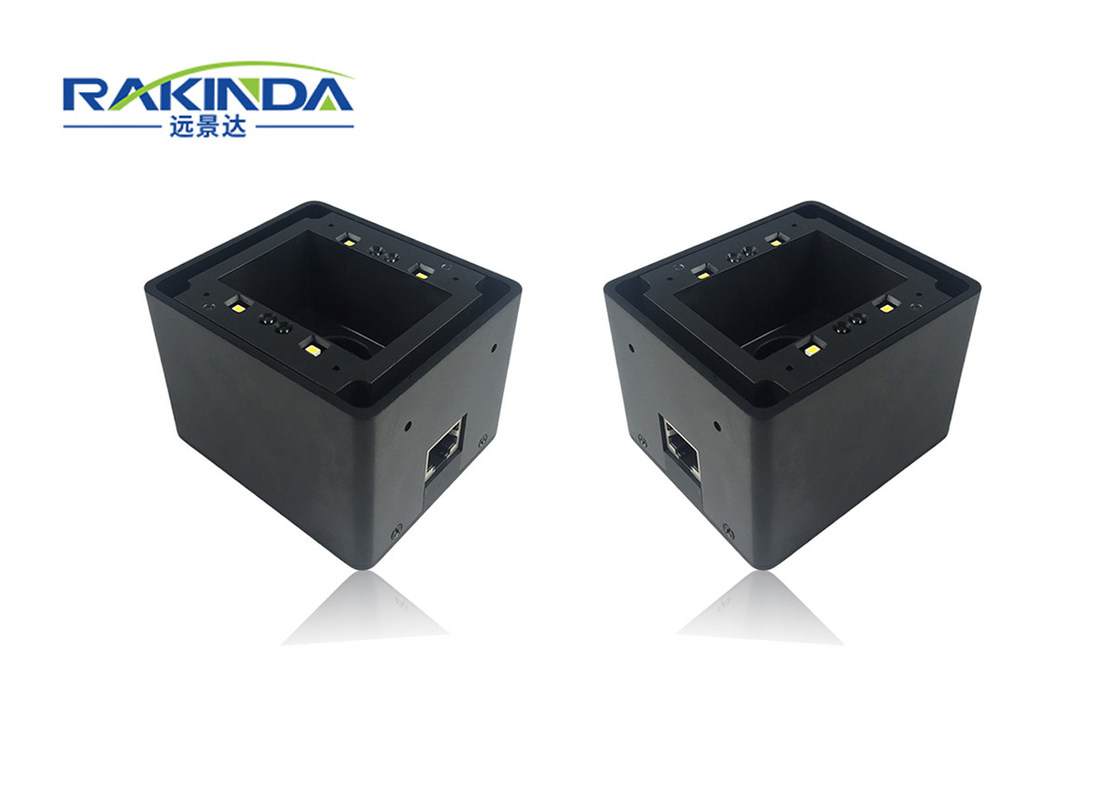

Access Control QR Code Barcode Scanner Auto 2D Module Scanning Phone Screen
QR Code Barcode Scanner Auto 2D Module Scanning Phone Screen for Access Control
2D BARCODES
Tag barcodes are the newest edition of 2D barcodes. They are more flexible than older formats by providing better design and content capability. Tag barcodes are linked to data sources and are suitable for use with mobile sites. Content can be updated at any time without requiring any tag alteration. These tags can be used on business cards, resumes, and custom company images; they can be printed in black and white or color. The Quick Response Code (QR) was the first 2D barcode. It’s best suited for simple designs that don’t require integration with your branding.
Access Control Solutions Share: Protecting company assets and employees is a concern every business has regardless of their size. Security is a greater concern than ever and advances in access control technology have moved well beyond the traditional lock and key method. Electronic access control provides improved security and better management of your facility access by utilizing secure IDs that can be tracked at every doorway. Control who as access to your building and never have to change a lock again.
Technical Specifications of RD4500I Auto 2D Barcode Reader Module
| Performance | |||
| Processor | IOTC 0370 CHIP | ||
| Image Sensor | 752×480 CMOS | ||
| Interface | RS-232/ USB | ||
| Symbologies | 2D | PDF417, Data Matrix, QR Code | |
| 1D | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey | ||
| Scan Mode | Sense mode | ||
| Precision | 10mil | ||
| Light Source | White LED | ||
| Scan Window | 38.3mm×60.4mm | ||
| PCS | ≥30% | ||
| FOV | Diagonal: 85°, Horizontal: 63.7°, Vertical: 70° | ||
| Mechanical/Electrical | |||
| Power Consumption | 1.75W (max.) | ||
| Notification | Beep | ||
| Dimensions (L x W x H) | 71×61×50mm | ||
| Weight | 280g | ||
| Environmental | |||
| Operating Temperature | -10°C - +50°C | ||
| Storage Temperature | -20°C - +60°C | ||
| Humidity | 5% - 95% (non-condensing) | ||
| Ambient Light | 0 ~ 100,000 LUX | ||
| Certifications | |||
| FCC Part15 Class B, CE EMC Class B | |||
Barcode Scanner FAQ
Q1: Can I get some samples? are they free?
A1: Of course, but samples are not free.
Q2: What's the delivery time?
A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
Q3: What about payment?
A3: Payment terms: T/T,West Union and L/C etc.
Q4: Can you list the product of your company?
A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
Q5: What's the OS of the POS?
A5: Android and Windows,details please refer to the technical data of the Product.
Q6: Where can we download the SDK/user manual for some of your products?
A6: SDK/User manual will be sent to you by email after the sample order.
Q7: Warranty time?
A7: 1 year
Q8: Do you provide Evaluation Kit for testing barcode scanner module?
A8: Yes, but you need to pay for EVK separately.
Q9: Product OEM?
A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
Q10: Customer service?
A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
