Home ProductsArduino Barcode Scanner Module

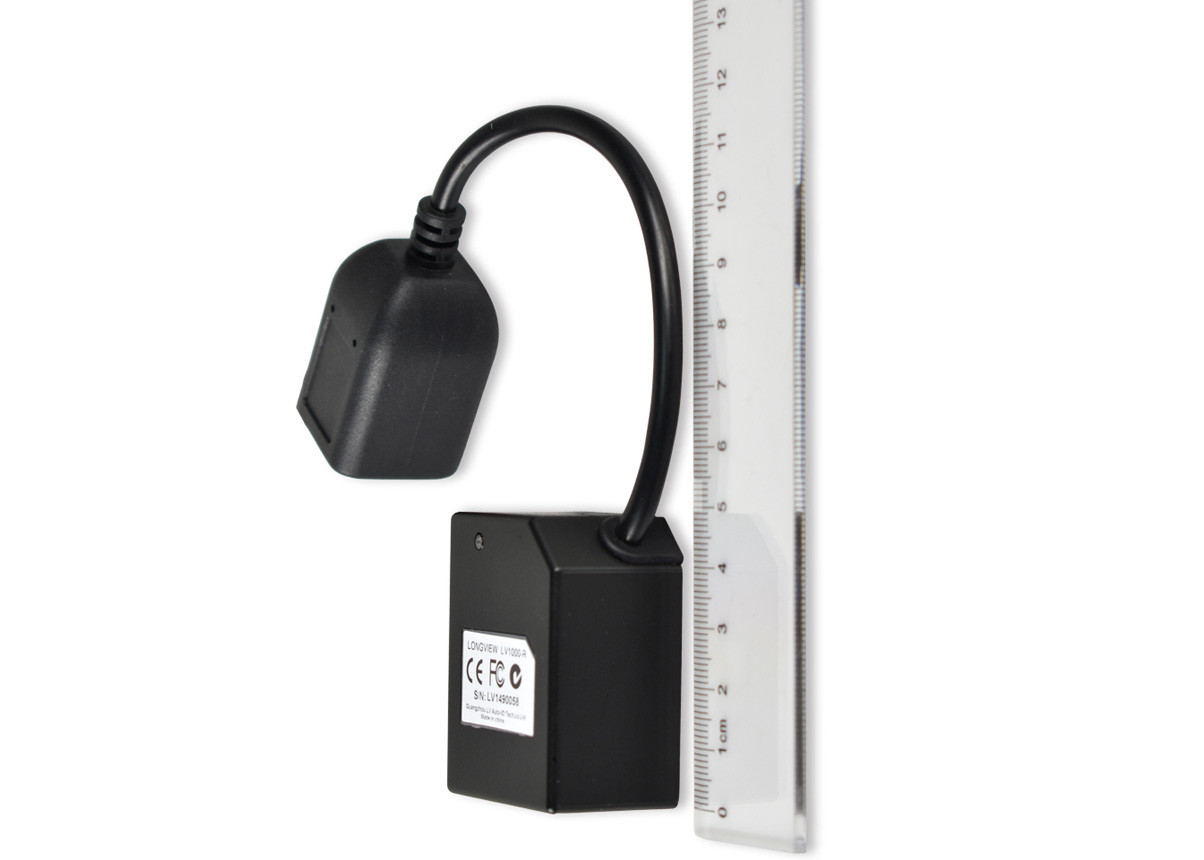

Self Service Machines Arduino Barcode Scanner Module USB 1D Scan Engine

Self Service Machines Arduino Barcode Scanner Module USB 1D Scan Engine

    • Self Service Machines Arduino Barcode Scanner Module USB 1D Scan Engine
    • Self Service Machines Arduino Barcode Scanner Module USB 1D Scan Engine
  • Self Service Machines Arduino Barcode Scanner Module USB 1D Scan Engine

    Product Details:

    Place of Origin: Shenzhen, Guangdong, China
    Brand Name: RAKINDA
    Certification: CE, RoHS
    Model Number: LV1000R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
    Delivery Time: within 5 working days after receiving the balance
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 1000 PCS/ week
    Contact Now
    Detailed Product Description
    Product Name: USB 1D Scan Engine Image Sensor: CCD
    Operate Temperature: -5°C - +45°C Storage Temperature: -40°C - +60°C
    Payment: T/T, Western Union, Paypal Port: Shenzhen
    Delivery Time: Within 5 Working Days After Receiving The Balance Trade Term: FOB, CIF And Others We Can Negotiate

    Self Service Machines Arduino Barcode Scanner Module USB 1D Scan Engine



    We stock a huge range of barcode scanners, swipe badge reader and handheld readers with bluetooth, cordless and wireless scanners, USB, CCD / 1D / 2D barcode scanners, omni directional desktop scanner and ruggedised hand-held barcode scanning technology.



    Our barcode readers are available with a number of interfaces allowing cabled connection to variety of host devices. For most PC and MAC users the USB (HID) interface provides the most flexible and easy to use, simply plug the usb barcode scanner into a USB port (no driver required) and scanned barcodes appear on screen as keyboard emulation. Alternative interface options include RS232, USB (VCP - Virtual COMM Port) and PS2 keyboard wedge, if you are unsure please contact us for expert advice on the most suitable interface.



    And LV1000R 1D barcode scan engine has USB and RS-232 interfaces. LV1000R can be strong light resistant with RS232 interface, but LV1000R doesn't have this function with USB interface.

    RS232 interface deliver the data stably, and USB interface is not stable enough but easily.



    Technical Specifications of LV1000R USB 1D Scan Engine

    Product name CCD Scan Engine
    Item number LV1000R
    Interface RS232/ USB
    Image Sensor CCD
    Symbologies Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codabar, Interleaved 2 of 5,ISBN/ISSN,Code 93, UCC/EAN-128, GS1Databar, etc.
    Precision ≥ 5mil (Condition: PCS=0.9, testing code: Code 39)
    Light Source LED(622 nm - 628 nm)
    Light Intensity 265 LUX (130 mm )
    Depth of Field* 40mm-430mm
    Print Contrast Signal ≥ 30%
    Sensitivity

    Pitch: ±65°@ 0°Roll and 0° Skew

    Roll: ±30°@ 0°Pitch and 0° Skew

    Skew: ±60°@ 0°Roll and 0° Pitch

    Illumination 0 ~ 100,000 LUX
    Power Consumption 1.25W
    Voltage DC5V
    Current

    Working: 170mA

    Idle: 65mA

    Max: 250mA

    Weight 70g
    Dimensions 49(W)*37(D)*26(H)mm
    Operating Temperature -5 ℃ to + 45 ℃
    Storage Temperature -40 ℃ to + 60 ℃
    Humidity 5% - 95% ( non-condensing )
    Certification FCC Part15 Class B, CE EMC Class B

    Self Service Machines Arduino Barcode Scanner Module USB 1D Scan Engine



    Barcode Scanner FAQ



    Q1: Can I get some samples? are they free?

    A1: Of course, but samples are not free.

    Q2: What's the delivery time?

    A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.

    Q3: What about payment?

    A3: Payment terms: T/T,West Union and L/C etc.

    Q4: Can you list the product of your company?

    A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.

    Q5: What's the OS of the POS?

    A5: Android and Windows,details please refer to the technical data of the Product.

    Q6: Where can we download the SDK/user manual for some of your products?

    A6: SDK/User manual will be sent to you by email after the sample order.

    Q7: Warranty time?

    A7: 1 year

    Q8: Do you provide Evaluation Kit for testing barcode scanner module?

    A8: Yes, but you need to pay for EVK separately.

    Q9: Product OEM?

    A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.

    Q10: Customer service?

    A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
