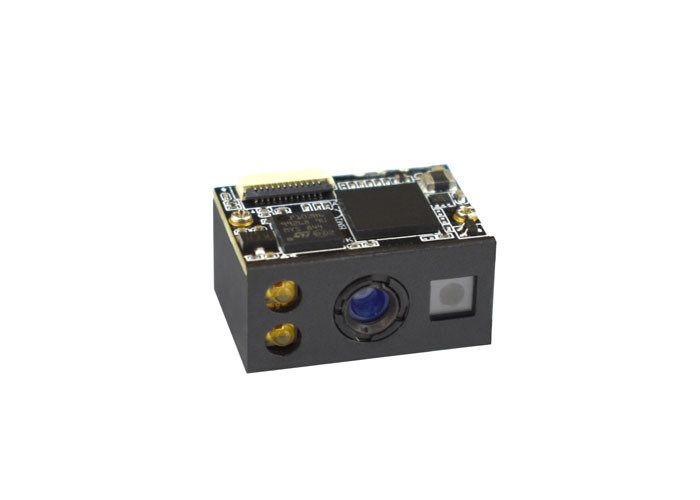

752×480 CMOS Image 2D Barcode Scanner Module LV30 Mini Image Scanning Engine

Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAKINDA
Certification: CE, RoHS
Model Number: LV30
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Normal craft paper and foam
Delivery Time: within 5 working days after receiving the balance
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 1000 PCS/ week
Interface: TTL-232, USB (optional) Resolution: > 3mil
Weight: 5.0g Operating Temperature: -20℃~ +60℃
Ambient Light: 0 ~ 100,000 LUX Dimensions: 21.3(W)×11.6(D)×15.5(H)mm
Highlight:

2d barcode module

,

barcode scanning solutions

LV30 bar code reading engine, the application of the world's leading chip smart new continent image recognition technology to create a new era of image-based two-dimensional bar code reading engine. Rakinda's two-dimensional decoder chip, the advanced image recognition algorithms and advanced chip design and manufacturing technology perfect fusion, which greatly simplifies the design of 2D bar code reader product design difficulty, establish two-dimensional video products, high performance, high reliability, low power Consumption of excellent benchmarking.



Product Parameters:

Interface TTL-232, USB (optional)
Image Sensor 752×480 CMOS
Symbologies 2D: PDF 417, DataMatrix (ECC200,ECC000,050,080,100,140), QR Code1D: Code 128,EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5,ITF-6,ITF-14,ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc.
Illumination Red LED 612nm-624nm, 650nm laser
Resolution > 3mil
Ambient Light 0 ~ 100,000 LUX
Power Consumption 0.76 W
Operating Voltage 3.3±10% VDC
Current @ 3.3 VDC Operating Current   230 mA

Standby Current   4mA (USB communication not supported); 7mA (USB communication supported)

Sleep Current   <5 uA
Dimensions 21.3(W)×11.6(D)×15.5(H)mm
Weight 5.0g
Operating Temperature -20℃~ +60℃



LV30 Mini image 2D scanning engine



LV30 2D Barcode Scanner Module Details:



LV30 Mini image 2D scanning engine



Seamless integration of CMOS image sensor and decoder board makes the engine small, lightweight

and easyfor integration.LV30 is seamless upgrade for Motorola SE955 due to theirsame size and bottom

screw hole. Thus,if you want to upgrade your solution from 1D to 2D, there is no need to change mould



LV30 Mini image 2D scanning engine



Confirguring Way:

Rakinda can supply user guide and intergration guide of barcode scanner to help you

embed it into device. Confirguring scanner by scanning setting code in user guide
