Black Control Access Barcode Reader Module 280G White LED Light Source

Black Control Access Barcode Reader Module 280G White LED Light Source

    • Black Control Access Barcode Reader Module 280G White LED Light Source
    • Black Control Access Barcode Reader Module 280G White LED Light Source
  • Black Control Access Barcode Reader Module 280G White LED Light Source

    Product Details:

    Place of Origin: Shenzhen, Guangdong, China
    Brand Name: RAKINDA
    Certification: CE, RoHS
    Model Number: RD4500I

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
    Delivery Time: within 5 working days after receiving the balance
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 1000 PCS/ week
    Contact Now
    Detailed Product Description
    Item Name: Control Access QR Code Reader Scan Element Type: CMOS
    Type: Fix Mounted Barcode Scanner Wireless: None
    Weight: 280g Size: 71mm(L) X 61mm (W) X 50mm(H)
    Humidity: 5% - 95% ( Non-condensing ) Color: Black

                Black Control Access Barcode Reader Module 280G White LED Light Source



    1. The RD4500I barcode scanner engine is excellent for great design, low cost, high sensitivity for 1D/ 2D bar codes and for on-screen bar codes even if the screen is covered with protective film in poor light with RS-232/ USB interface.



    2. The white light of the RD4500I barcode scan engine doesn't hurt eyes, even protect eyes, we have patent about that. And it has beep when scanning.



    Application Scenarios

    Self-service cabinets used in e-commerce, express delivery services and smart homes; ATMs; kiosks; queue machines; lottery machines; certificate makers, turnstiles etc.



    Technical Specifications of RD4500I Control Access QR Code Reader

    Performance
    Processor IOTC 0370 CHIP
    Image Sensor 752×480 CMOS

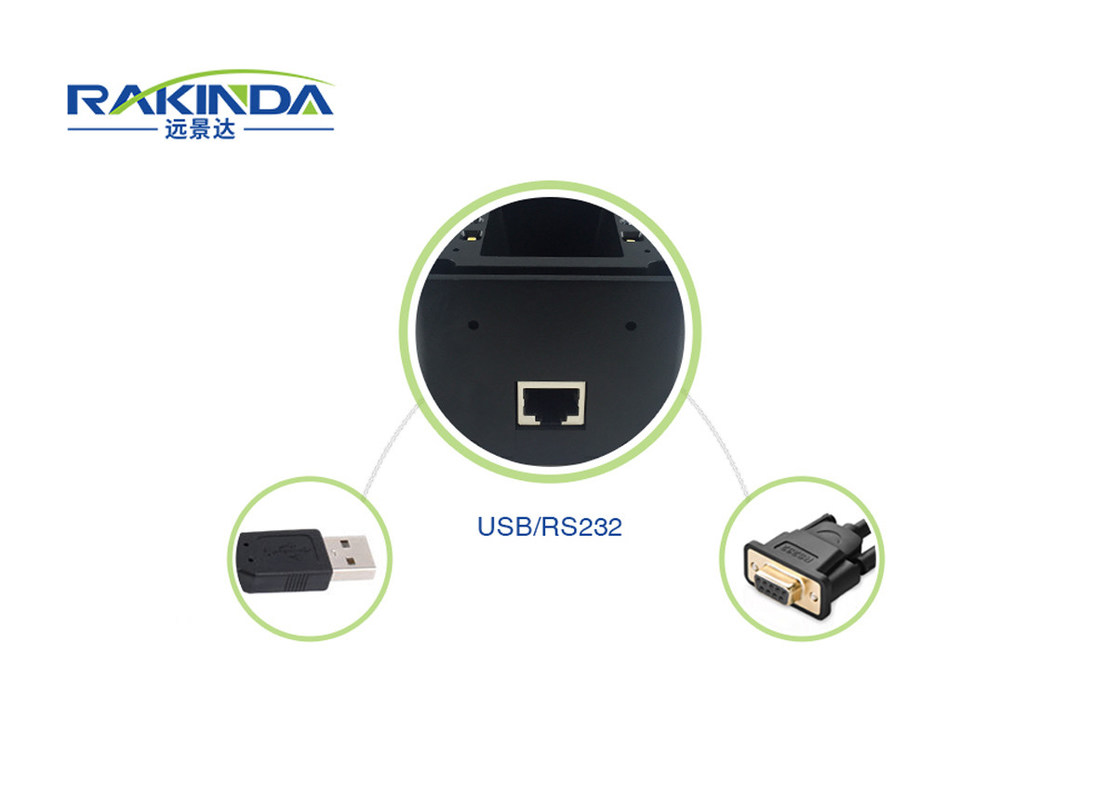

    Interface RS-232/ USB
    Symbologies 2D PDF417, Data Matrix, QR Code
    1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
    Scan Mode Sense mode
    Precision 10mil
    Light Source White LED
    Scan Window 38.3mm×60.4mm
    PCS ≥30%
    FOV Diagonal: 85°, Horizontal: 63.7°, Vertical: 70°
    Mechanical/Electrical
    Power Consumption 1.75W (max.)
    Notification Beep
    Dimensions (L x W x H) 71×61×50mm
    Weight 280g
    Environmental
    Operating Temperature -10°C - +50°C
    Storage Temperature -20°C - +60°C
    Humidity 5% - 95% (non-condensing)
    Ambient Light 0 ~ 100,000 LUX
    Certifications
    FCC Part15 Class B, CE EMC Class B

    Black Control Access Barcode Reader Module 280G White LED Light Source

    Principle of 2D bar code Scanning of the Access Control System

    It’s convenient for the residents to apply to intelligent access control in the community, saving a lot of trouble. In order to meet the users’ needs of the mobile access and interaction experience of the access control system, the intelligent access control system is developed by Shenzhen Rakinda and the domestic first-class software integration through the access control in the RD4500I 2D code bar code scanner with increasing mobile APP reading code access control functions to improve the efficiency of property management and the region within the security level.



    Barcode Scanner FAQ

    Q1: Can I get some samples? are they free?
    A1: Of course, but samples are not free.
    Q2: What's the delivery time?
    A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
    Q3: What about payment?
    A3: Payment terms: T/T,West Union and L/C etc.
    Q4: Can you list the product of your company?
    A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
    Q5: What's the OS of the POS?
    A5: Android and Windows,details please refer to the technical data of the Product.
    Q6: Where can we download the SDK/user manual for some of your products?
    A6: SDK/User manual will be sent to you by email after the sample order.
    Q7: Warranty time?
    A7: 1 year
    Q8: Do you provide Evaluation Kit for testing barcode scanner module?
    A8: Yes, but you need to pay for EVK separately.
    Q9: Product OEM?
    A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
    Q10: Customer service?
    A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
