LV3296 Arduino Barcode Scanner Module 640 x 480 CMOS Image Sensor

LV3296 Arduino Barcode Scanner Module 640 x 480 CMOS Image Sensor

    • LV3296 Arduino Barcode Scanner Module 640 x 480 CMOS Image Sensor
    • LV3296 Arduino Barcode Scanner Module 640 x 480 CMOS Image Sensor
  • LV3296 Arduino Barcode Scanner Module 640 x 480 CMOS Image Sensor

    Product Details:

    Place of Origin: Shenzhen, Guangdong, China
    Brand Name: RAKINDA
    Certification: CE, RoHS
    Model Number: LV3296

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
    Delivery Time: within 5 working days after receiving the balance
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 1000 PCS/ week
    Contact Now
    Detailed Product Description
    Product Name: 2D Bar Code Scan Engine Resolution: ≥ 5mil
    Interface: TTL-232 Colour Depth: 32 Bit
    Scan Speed: 300 Scans/sec Color: Black
    Weight: 4g Dimensions: 21.2(W)×14(D)×11.1(H)mm

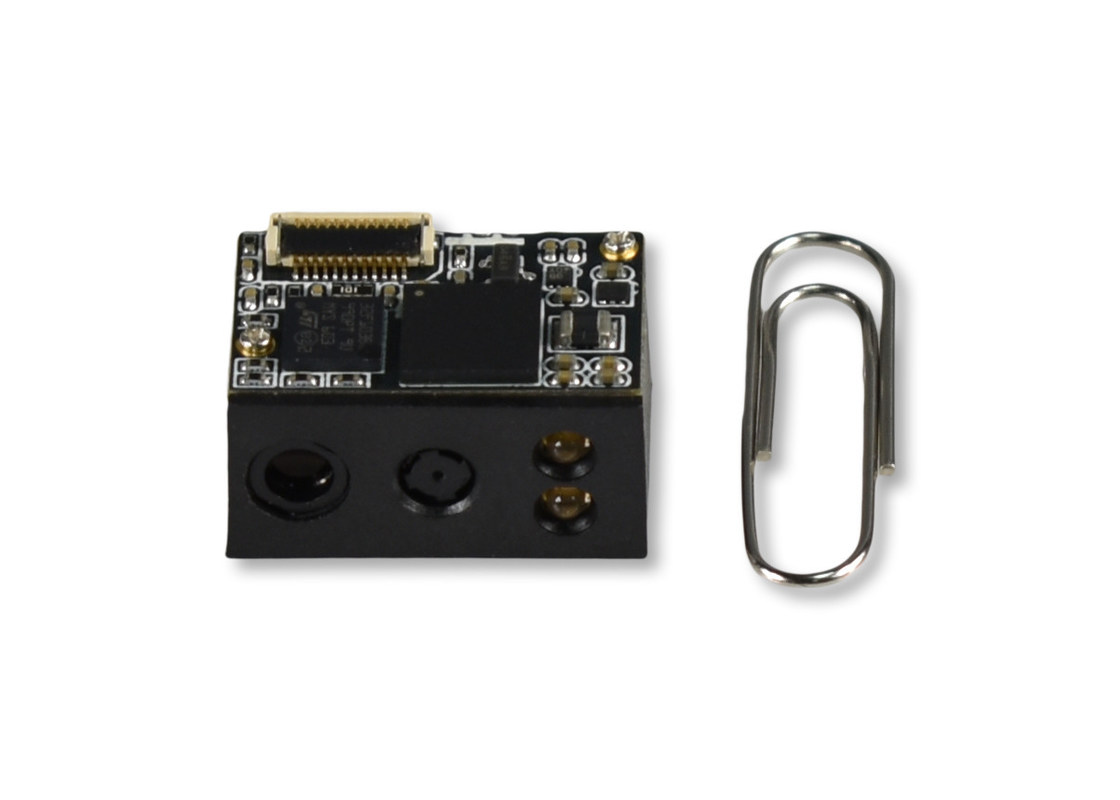

                 LV3296 Arduino Barcode Scanner Module 640 x 480 CMOS Image Sensor



    The LV3296 OEM scan engines, armed with the Rakinda patented, a computerized image recognition system, bring about a new era of 2D barcode scan engines.



    The LV3296’s 2D barcode decoder chip ingeniously blends technology and advanced chip design& manufacturing, which significantly simplifies application design and delivers superior performance and

    solid reliability with low power consumption.



    The LV3296 supports all mainstream 1D as well as PDF417, QR Code (QR1, QR2, Micro QR), Data Matrix and GS1-DataBar TM (RSS) (Limited/ Stacked/ Expanded versions).



    Technical Specifications of LV3296 2D Barcode Scanner Module

    Performance





















    Image Sensor 640 x 480 CMOS
    Light Source Red LED 625±10nm
    Symbologies 2D PDF417, QR code (QR1/2, Micro), Data Matrix (ECC200, ECC000, 050, 080, 100, 140)
      1D Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN, UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5, Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11, Plessey, MSI-Plessey, GS1 DataBarTM(RSS), (RSS-14, RSS-Limited, RSS-Expand)
    Resolution ≥5mil
    Typical Depth of Field



    EAN-13 45mm-370mm(13mil)
    PDF417 40mm-120mm (6.67mil)
    Code 39 35mm-170mm (5mil)
    Data Matrix 30mm-120mm (10mil)
    QR Code 30mm-150mm (15mil)
    Symbol Contrast ≥30% reflectance difference
    Scan Angle**

    Pitch ±50°@ 0°Roll and 0° Skew
    Roll 360°@ 0°Pitch and 0° Skew
    Skew ±60°@ 0°Roll and 0° Pitch
    Field of view Horizontal 44°, Vertical 33.2°

    Mechanical/Electrical







    Interface TTL-232, USB (HID-KBW, COM Port Emulation, HID-POS)
    Operating Voltage 3.0~3.6VDC
    Current@3.3VDC Operating 175mA
      Standby 8mA
      Sleep <5uA
    Dimensions 14(D)×21.2(W)×11.1(H)mm
    Weight 4g

    Environmental









    Operating Temperature -20℃~+50℃ (-4°F~122°F)
    Storage Temperature -40℃~+70℃(-40°F~158°F)
    Humidity 5%~95% (non-condensing)
    Ambient Light 0~100000lux (natural light)

    LV3296 Arduino Barcode Scanner Module 640 x 480 CMOS Image Sensor

    Barcode Scanner FAQ

    Q1: Can I get some samples? are they free?
    A1: Of course, but samples are not free.
    Q2: What's the delivery time?
    A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
    Q3: What about payment?
    A3: Payment terms: T/T,West Union and L/C etc.
    Q4: Can you list the product of your company?
    A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
    Q5: What's the OS of the POS?
    A5: Android and Windows,details please refer to the technical data of the Product.
    Q6: Where can we download the SDK/user manual for some of your products?
    A6: SDK/User manual will be sent to you by email after the sample order.
    Q7: Warranty time?
    A7: 1 year
    Q8: Do you provide Evaluation Kit for testing barcode scanner module?
    A8: Yes, but you need to pay for EVK separately.
    Q9: Product OEM?
    A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
    Q10: Customer service?
    A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
