| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Brand Name: | RAKINDA |
| Certification: | CE, RoHS |
| Model Number: | LV3096 |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotiation |
| Packaging Details: | barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam. |
| Delivery Time: | within 5 working days after receiving the balance |
| Payment Terms: | Western Union, T/T, paypal |
| Supply Ability: | 1000 PCS/ week |
| Product Name: | 2D Barcode Scan Engine | Humidity: | 5% ~ 95% (non-condensing) |
|---|---|---|---|
| Symbol Contrast: | ≥ 30% Reflectance Difference | Operating Voltage: | 3.3±10% VDC |
| Size: | 21.17(W)×14.6(D)×11.52(H)mm | Rated Power Consumption: | 0.76W |
| Field Of View: | Horizontal 36°; Vertical 23° | Illumination: | Red LED 625±10 Nm |
| High Light: | qr barcode scanner,square barcode scanner |
||

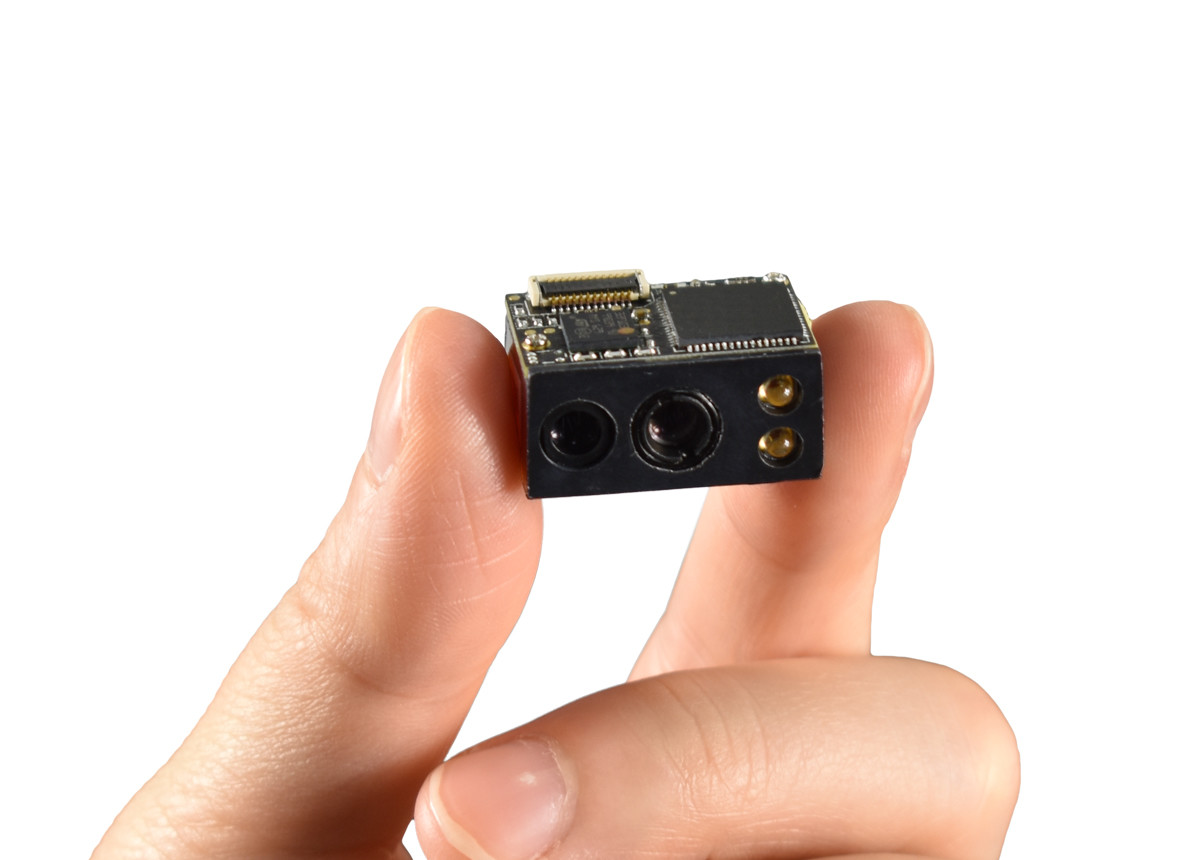

Data Collector QR Barcode Scanner , 3.3VDC 2D Barcode Reader Scanner
Overview
The LV3096 supports all mainstream 1D as well as PDF417, QR Code (QR1, QR2, Micro QR), Data
Matrix and GS1-DataBar TM (RSS) (Limited/ Stacked/ Expanded versions).
Aimer
The LV3096 has a view finder that produces a solid circle-shaped aiming pattern to help the user to easily position the target barcode within the engine’s field of view to increase scan efficiency. The aiming pattern can be turned On or Off. It is advisable to turn it on when scanning barcodes.
Barcode Scanning
Powered by area-imaging technology and Rakinda patented technology, the LV3096 features fast scanning and accurate decoding. Barcodes rotated at any angle can still be read with ease. When scanning a barcode, simply center the aiming beam or pattern projected by the LV 3096 over the barcode.
Technical Specifications of LV3096 2D Barcode Scanner Module
| Performance | |||
| Image Sensor | 752×480 CMOS | ||
| Processor | Rakinda IOTC 2D decoder chip 48MHz | ||
| Illumination | Red LED 625±10 nm | ||
| Symbologies | 2D | PDF 417, Data Matrix(ECC200,ECC000,050,080,100,140), QR Code | |
| 1D | Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, Code 93, UCC/EAN-128, GS1 Databar, Matrix 2 of 5, Code 11, Industrial 2 of 5, Standard 2 of 5, Plessey, MSI-Plessey, etc. | ||
| Reading Precision | ≥ 5mil | ||
| Depth of Field* | EAN13 (13mil) | 55mm - 185mm | |
| Code 39 (5mil) | 55mm - 100mm | ||
| PDF 417 (6.67mil) | 40mm - 130mm | ||
| Data Matrix (10mil) | 40mm - 135mm | ||
| QR Code (15mil) | 40mm - 160mm | ||
| Symbol Contrast | ≥ 30% reflectance difference | ||
| Scan Angle** | Roll: 360°, Pitch: ±55°, Skew: ±55° | ||
| Field of View | Horizontal 36°; Vertical 23° | ||
Barcode Scanner FAQ
Q1: Can I get some samples? are they free?
A1: Of course, but samples are not free.
Q2: What's the delivery time?
A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
Q3: What about payment?
A3: Payment terms: T/T,West Union and L/C etc.
Q4: Can you list the product of your company?
A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
Q5: What's the OS of the POS?
A5: Android and Windows,details please refer to the technical data of the Product.
Q6: Where can we download the SDK/user manual for some of your products?
A6: SDK/User manual will be sent to you by email after the sample order.
Q7: Warranty time?
A7: 1 year
Q8: Do you provide Evaluation Kit for testing barcode scanner module?
A8: Yes, but you need to pay for EVK separately.
Q9: Product OEM?
A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
Q10: Customer service?
A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
