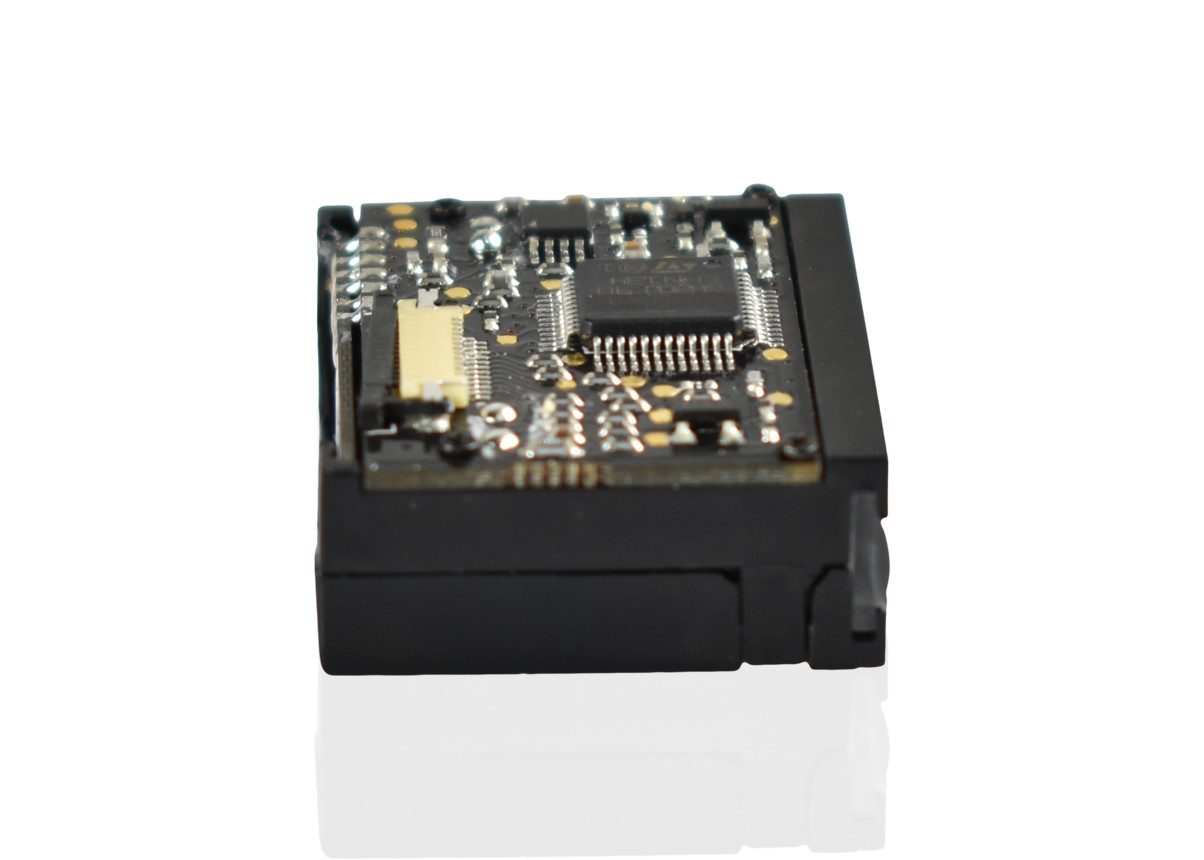

High Sensitivity Barcode Reader Module 1 mA Current Sleep 32 Bit

High Sensitivity Barcode Reader Module 1 mA Current Sleep 32 Bit

    • High Sensitivity Barcode Reader Module 1 mA Current Sleep 32 Bit
    • High Sensitivity Barcode Reader Module 1 mA Current Sleep 32 Bit
  • High Sensitivity Barcode Reader Module 1 mA Current Sleep 32 Bit

    Product Details:

    Place of Origin: Shenzhen, Guangdong, China
    Brand Name: RAKINDA
    Certification: CE, RoHS
    Model Number: LV1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
    Delivery Time: within 5 working days after receiving the balance
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 1000 PCS/ week
    Contact Now
    Detailed Product Description
    Item Name: Arduino Barcode Scanner Module Type: Barcode Scanner Module
    Scan Element Type: CCD Colour Depth: 32 Bit
    Current Working: 150mA(Max) Current Idle: 45mA
    Current Sleep: 1 MA Weight: 6.2g

    High Sensitivity Barcode Reader Module 1 mA Current Sleep 32 Bit​





    The LV1000 barcode scan engine is a linear scan engine delivering optimal and high-speed scanning performance from a compact form factor. It comes in two versions: the LV1000 barcode scanner module long range version, which can scan barcode up to 460mm away, and the LV1000 engine wide angle high density version, which supports 65-degree wide angle data capture with 3-Mil high density scanning capability. The scan engine blends compact size, powerful scanning as well as versatility for space-constrained OEM applications of both portable and fixed devices.



    The LV1000 barcode scanner module is the long range version high speed bar code scan engine. Thanks to its latest decoding technology and high-quality sensor, LV1000 provides high-speed scan rate up to 400 scans per second and is able to read virtually any bar codes including poorly printed, scratched, low contrast or on-screen bar codes, from a long distance of 460mm away. Featuring great ambient light immunity from total darkness to direct sunlight, the LV1000 is suitable for both indoors as well as outdoors applications, making it the optimal choice for portable devices including industrial PDAs, terminals and peripherals.





    Technical Specifications of LV1000 Barcode Scanner Module

    Item name  Barcode Scanner Module
    Item number LV1000
    Interface TTL-232
    Scan Element Type CCD
    Symbologies Code128,EAN-13,EAN-8,Code39,UPC-A,UPC-E,Codabar, Interleaved 2 of 5,ISBN/ISSN,Code 93, etc.
    Precision ≥ 5mil (Condition:PCS=0.9, testing code: Code 39)
    Light Source LED(622 nm - 628 nm)
    Light Intensity 265 LUX (130 mm )
    Depth of Field* 40mm-430mm
    Print Contrast Signal ≥ 30%
    Sensitivity

    Pitch: ±65°@ 0°Roll and 0° Skew

    Roll: ±30°@ 0°Pitch and 0° Skew

    Skew: ±60°@ 0°Roll and 0° Pitch

    Illumination 0 ~ 100,000 LUX
    Power Consumption 0.33W
    Voltage DC3.3V
    Current

    Working: 150mA(Max)

    Idle: 45mA

    Sleep: 1mA

    Weight 6.0g
    Dimensions 28.2(W)*23.4(D)*11.2(H)mm
    Operating Temperature -20 ℃ to + 60 ℃
    Storage Temperature -40 ℃ to + 85 ℃
    Humidity 5% - 95% ( non-condensing )
    Certification FCC Part15 Class B, CE EMC Class B



    High Sensitivity Barcode Reader Module 1 mA Current Sleep 32 BitHigh Sensitivity Barcode Reader Module 1 mA Current Sleep 32 Bit

    Interface Cable

    A 50 mm flexible cable is included in the package. Both of the two ends are 12 PINS. One connects to the interface socket, the other connects to external device. Figure below shows how the cable is connected to the interface socket.

    High Sensitivity Barcode Reader Module 1 mA Current Sleep 32 Bit



    Barcode Scanner FAQ



    Q1: Can I get some samples? are they free?

    A1: Of course, but samples are not free.

    Q2: What's the delivery time?

    A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.

    Q3: What about payment?

    A3: Payment terms: T/T,West Union and L/C etc.

    Q4: Can you list the product of your company?

    A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.

    Q5: What's the OS of the POS?

    A5: Android and Windows,details please refer to the technical data of the Product.

    Q6: Where can we download the SDK/user manual for some of your products?

    A6: SDK/User manual will be sent to you by email after the sample order.

    Q7: Warranty time?

    A7: 1 year

    Q8: Do you provide Evaluation Kit for testing barcode scanner module?

    A8: Yes, but you need to pay for EVK separately.

    Q9: Product OEM?

    A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.

    Q10: Customer service?

    A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
