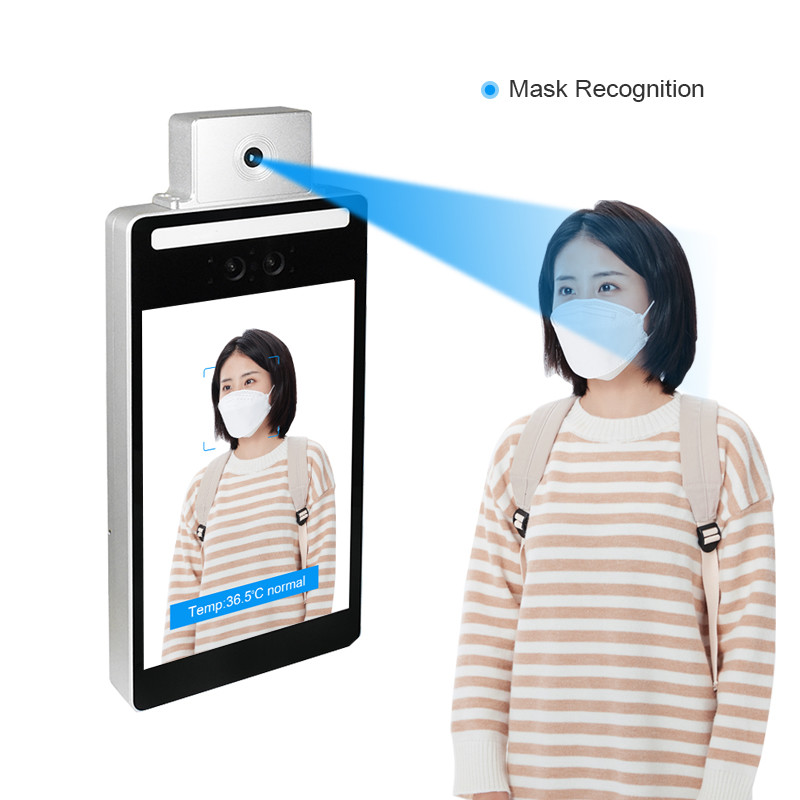

MTK Android Face Recognition Temperature Measurement Attendance Machine

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE FCC ROHS
Model Number: F3
Minimum Order Quantity: 1pcs
Packaging Details: 1pcs/box
Supply Ability: 500pcs per week
Screen Resolution: 800*1200 Operating System: Android 9.0
Software: Free Software White Balance: Automatic
Wide Dynamic: Support
High Light:

Android Face Recognition Temperature Measurement

,

MTK Face Recognition Temperature Measurement

,

MTK Face Recognition Attendance Machine

MTK Android Face Recognition Temperature Measurement Attendance Machine



Weigand 8inch Multi Person MTK Android Facial Recognition with Temperature Checking Access Control Attendance Machine



This product is very mature and hot sale, which already have exported a lot to foreign countries, such as Israel, Serbia, Italy, Chile, etc. And customer can developed his own application based on our SDK and API. And our engineer is very professional and can communication with customer directly.



The core features of the product are as follows:
a Face recognition and temperature detection, non-contact safer
b Not wearing a mask, warning of abnormal body temperature
c.Health code check, after swiping the face and measuring the temperature, the health code will be displayed and the code will pass, and the health code will alarm
d Face access control, the access control system is linked in and out while scanning the face and measuring the body temperature
e Check-in and attendance, replacing the risk of contact cross-infection caused by traditional fingerprint check-in machines
f Real-time generation of body temperature records, attendance data, data management and traceability in the background
g Comparison of personal identification, black and white list confirmation and alarm to detect intruders or missing persons
h Flexible deployment and wide application. Support 4G, wifi, network cable and other networking methods, optional column, wall, gate installation methods, flexible deployment to a wide range of application scenarios

F3-M34-F Face Recognition Access Control Terminal
Model No. F3-M34-F
Display 8 inches, Full Viewing Angle, 170IPS LCD Screen
Screen Resolution 800*1200

























Camera

Type RGB Thermal Imaging
Resolution 2 Million Pixels 256*192
Aperture F2.8 F2.8
Focal Length 3.18mm 3.18mm
White Balance Automatic Automatic
Wide dynamic Support Support



Vertical Wide Angle



Android HD Thermal Imaging Camera 256X192 Temperature Measuring Device 11



Horizontal Wide Angle

Android HD Thermal Imaging Camera 256X192 Temperature Measuring Device 12













Basic Specification



Operating System



Android9.0 or above



Power Supply



DC12V(±10%)3A

Power Consumption 15w MAX
Relative Humidity 0%¨ 90%(In the State of Non-condensing Drops)
Operating Temperature 5℃-50℃
IP Grade IP55(Wall Mounting, Water is Not Allowed at the Junction with the Outlet Box, and a Ceiling Can Be Added)
Working Environment Indoor and Outdoor (with sunshade) Environment (no wind and direct sunlight)
Size 275.2MM*123.2MM*30.2MM



















Hardware Configuration



Recognition Method

  • ¨Face Recognition
  • ¨Mifare Card(Optional)
  • ¨IC Card(Optional)
Face Recognition Parameters
  • ¨Face Verification Accuracy >99%
  • ¨Face Recognition Distance 0.5m-1.5m
  • ¨Card Verification Time 600MS
Local Storage 30000 faces









Interface

Micro USB 1pc
RJ45 Gigabit Network 1pc
Relay Output
Wiegand Interface
RS-232
Door Contact
Exit Switch
Power Supply
White Fill Light Support
Indicator Light Support Green Light for Authentication Success and Red Light for Authentication Failure
Speaker Dual Speakers, 1.0w
Microphone Non-noise Reduction



Basic Parameters

WIFI 2.4G 802.11b/g/n
Bluetooth BluetooH 4.0



Temperature Measurement Module

Operating Temperature 5℃ ~ +50℃
Operating Temperature -20℃ ~ +55℃
Power consumption < 0.3w
Pixel 256*192 Real-time Temperature Output
Measurement Accuracy ± 0.5℃
Measuring Distance 0.3 ~ 1.0m



MTK



Motherboard

Chip Octa-core A73
Operating System Android9.0
RAM 2GLPDDR4
Storage 16GB eMMC
Power Input 12V/2A
Display MIPI DSI Maximum Support Resolution 2400 * 1080
WIFi 2.4GHz and 5GHz;802.11a/b/g/n/ac
USB

Micro USB Type A Host*1;Micro USB Type A Device*1

USB 2.0 Host*2(1.25mm wafer)



Microphone 2W*2 Speaker output





MTK Android Face Recognition Temperature Measurement Attendance Machine 2MTK Android Face Recognition Temperature Measurement Attendance Machine 3
