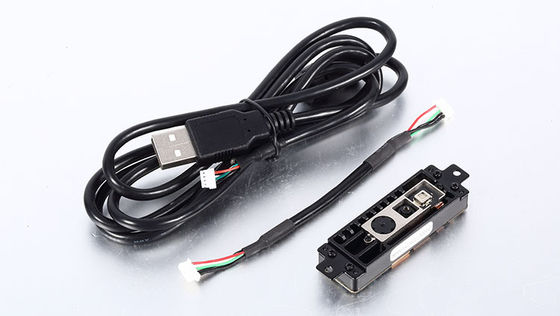

5MP 1080P TOF RGB Face Recognition Device Module With USB Interface

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE FCC ROHS
Model Number: M5
Minimum Order Quantity: 1pcs
Packaging Details: 1pcs/box
Supply Ability: 500pcs per week
Resolution (horizontal X Vertical): 640*480 Support 1080P/960P/720P/VGA Frame Rate (fps): Maximum 30
Measurement Accuracy: 1% Light Source: 940nm VCSEL
Interface: USB
High Light:

RGB Face Recognition Device Module

,

5MP 1080P Face Recognition Device

,

5MP 1080P Face Recognition Module

5MP 1080P TOF RGB Face Recognition Device Module With USB Interface



5MP 1080P TOF RGB Camera Module Facial Module with USB Interface

The product integrates a 640 × 480 pixel TOF depth camera and a 5 million pixel RGB camera.

The miniaturized and ultra-thin size structure is suitable for various embedded and handheld detection terminals, and realizes functions such as face recognition, living body detection, scene recognition, and gestures. The product provides a complete SDK, and users can perform device integration and secondary development according to their own needs.



M5 Face Module with 3D Living Detection Product Features:

1. High precision-more than 99.9% recognition accuracy
2. Super fast recognition speed by facial scanning
3. Flexible&multiple scenarios in many files
4. 3D TOF living detection with efficient & stable performance
5. High resolution, depth map resolution is 640 × 480;
6. Using 940nm VCSEL light source to support outdoor applications;
7. Miniaturized and ultra-thin design, the appearance size is 55mm × 18mm × 10.6mm, suitable for various embedded applications;
8. Accurate synchronization and alignment between depth, IR and RGB images.



The Main Components Of The Product Hardware
⚫ A TOF camera module;
⚫ A VCSEL laser;
⚫ One RGB camera module
⚫ A dedicated ASIC processing chip;
⚫ A control motherboard (including CPU, FLASH, etc.);Camera module.



Applications:

RAKINDA M5 product can be widely used in various types of deep vision detection scenarios, mainly including:

Industry Application
Somatosensory entertainment Somatosensory games, bone extraction, 3D fitting, gesture recognition, etc.
Face Recognition Face payment, face access control, witness integrated machine, etc.
Robot Avoidance

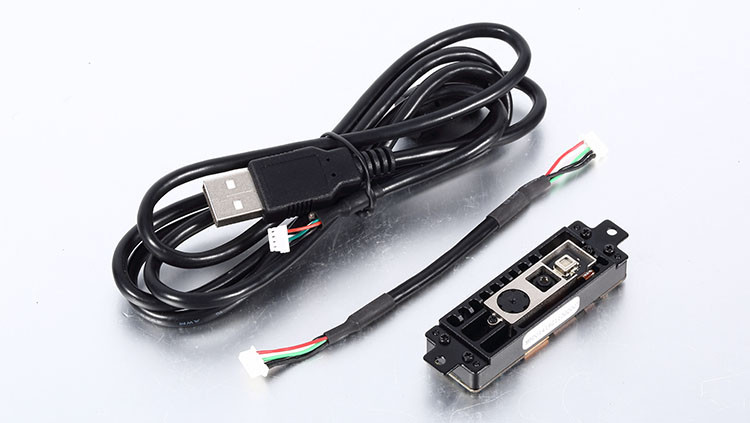

5MP 1080P TOF RGB Face Recognition Device Module With USB Interface 0





Product Parameters:

Parameter Specifications
Model RAKINDA M5





TOF

Resolution (horizontal x vertical) 640×480
Field of view (horizontal and vertical) 60°× 45°
Frame Rate (fps) Maximum 30









RGB

Resolution (horizontal x vertical) Support 1080P/960P/720P/VGA





Field of view (horizontal and vertical)

74°× 56° @960P(Default)

63°× 37° @1080P

74°× 42°@720P

74°× 56°@VGA

Frame Rate (fps) Maximum 30
Video Coding JPEG,RGB
Detection range(unit:m) 0.3 - 1.2
Measurement accuracy 0.1%
Measurement accuracy 1%
Light source 940nm VCSEL
Data transmission interface Micro USB
Power supply 5V
Typical power consumption(W) 3.4
Operating temperature(℃) 0-45
Operating system Windows7 and above,Linux,Android

Structure size (length × height × depth, single

Bit: mm)

55×18×10.6(Module without mounting steel)

65.8×18×10.6( Module without mounting steel)

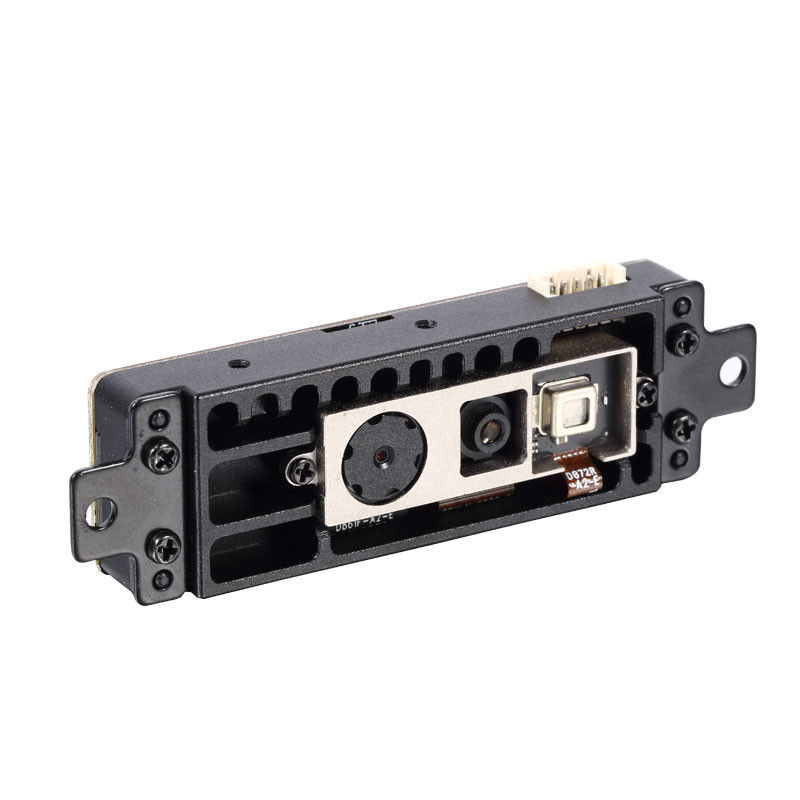

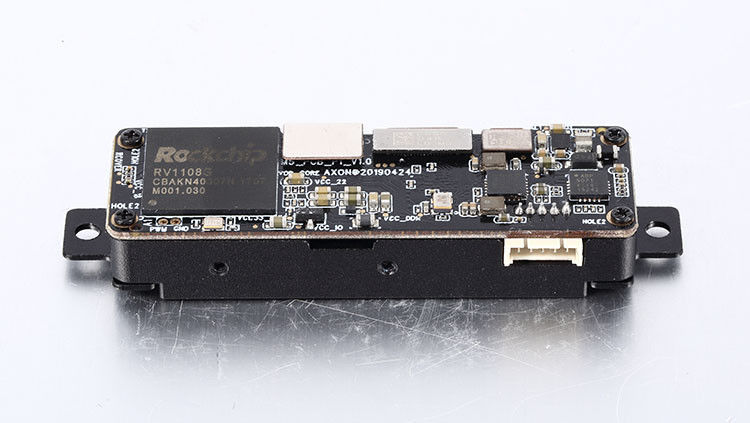

5MP 1080P TOF RGB Face Recognition Device Module With USB Interface 15MP 1080P TOF RGB Face Recognition Device Module With USB Interface 2

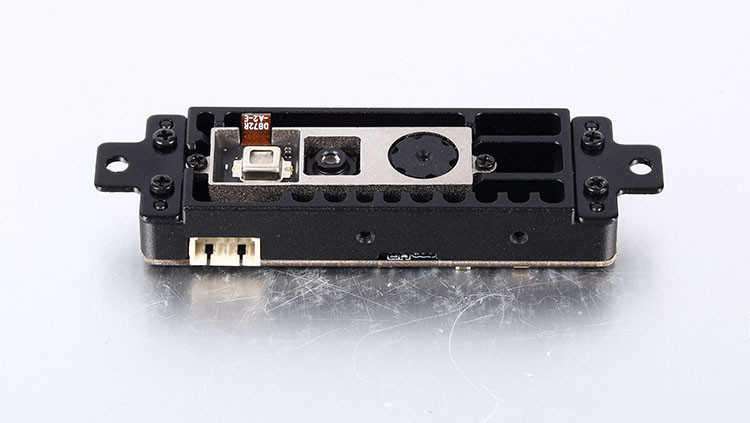

5MP 1080P TOF RGB Face Recognition Device Module With USB Interface 3



FAQ
Q: Can I get some samples? Are they free?
A: We support 1pc sample order. Samples should be paid.
Q: Can I get extra cables for the scanners?
A: Yes you can. We will provide according to your request.
Q: How can I buy?
A: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q: What is your payment method?
A: We accept online credit card, TT, Paypal, Western Union.
Q: Can I visit your factory:
A: Yes, you are warmly welcome.
Q: How long is your warranty time:
A: 1 Year.
Q: Where can we download the user manual of the scanners?
A: We will send by email after you get samples.
Q: What's the lead time?
A: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q: Can you provide OEM service?
A: Yes. We need further discuss about details.
Q: How do you ship the scanners usually?
A: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
