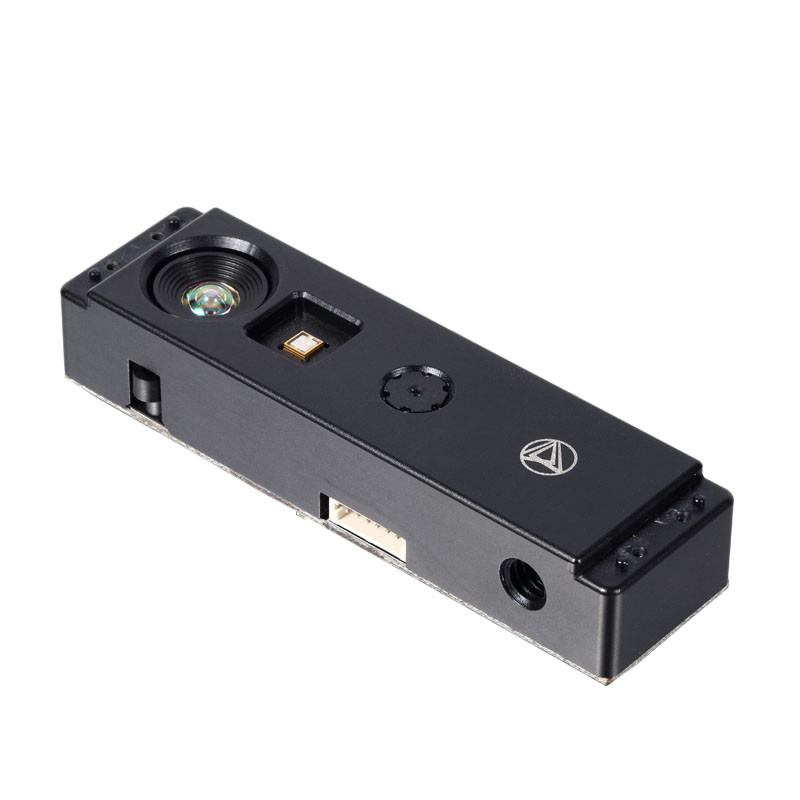

M3 Binocular ROHS Face Recognition Camera Module 850nm VCSEL

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE FCC ROHS
Model Number: M3
Minimum Order Quantity: 1pcs
Packaging Details: 1pcs/box
Delivery Time: 5-8days
Supply Ability: 500pcs per week
Resolution (horizontal X Vertical): 640*480 Frame Rate (fps): Maximum 30
Video Coding: JPEG、RGB Light Source: 850nm VCSEL
Operating Temperature(℃): 0-50
High Light:

ROHS Face Recognition Camera Module


FCC Face Recognition Camera Module


ROHS face recognition module

Compact Size M3 Binocular Face Recognition Biometric Camera Module TOF RGB Face Module

Product Description
It is a derivative product belonging to the M3 series. It has a more compact size and lower power consumption. It uses a standardized appearance size and is responsible for a unified interface. Data transmission and power supply are mainly applicable to scene applications such as face recognition and gesture recognition, which is more convenient for users' system integration.
The product integrates a TOF depth camera of 640 × 480 pixels and a 5-megapixel RGB camera. The product provides a complete SDK, and users can perform device integration and secondary development according to their own needs.


Product Features:

1. Dynamic Face Detection

Tracking and Recognition Algorithms Based on

2. Video Stream

Local Storage of 10,000 Supporting Devices

3. Personnel library

support screen display content configuration.

The Main Components Of The Product Hardware
⚫ A TOF camera module;
⚫ A VCSEL laser;
⚫ One RGB camera module
⚫ A dedicated ASIC processing chip;

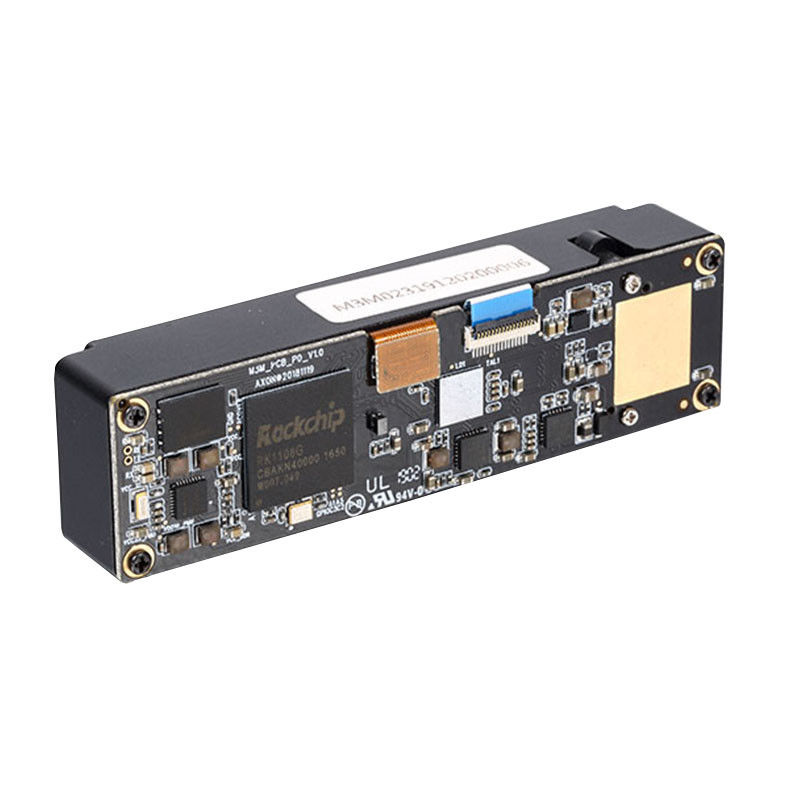

⚫ A control motherboard (including CPU, DDR, FLASH, etc.);

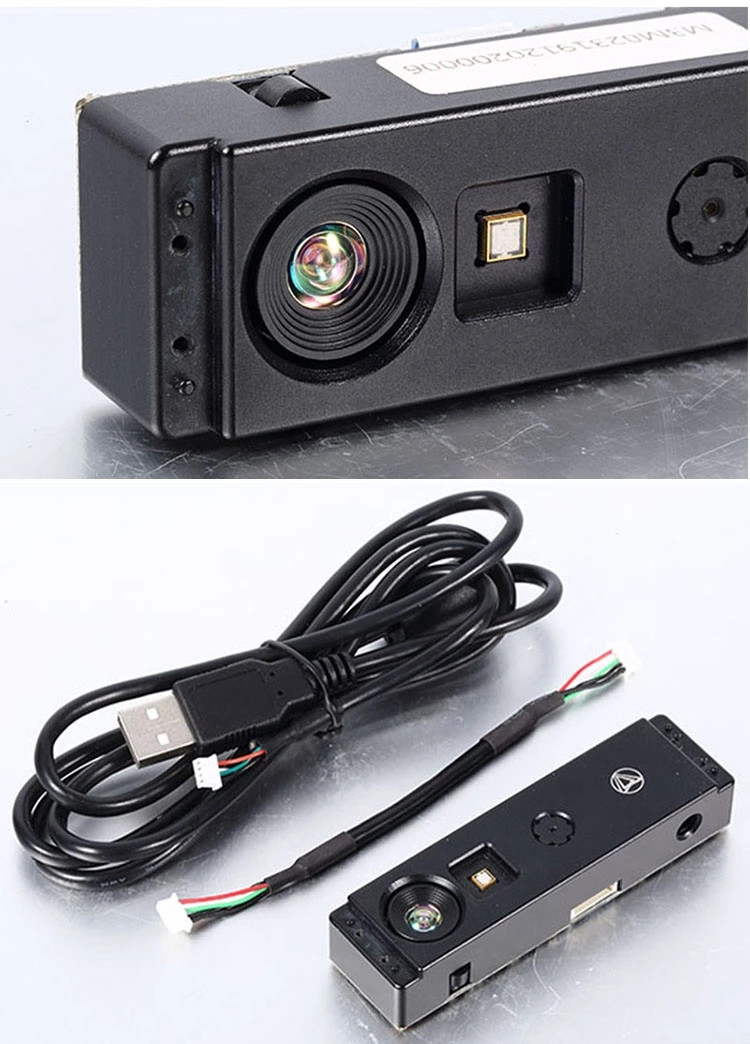

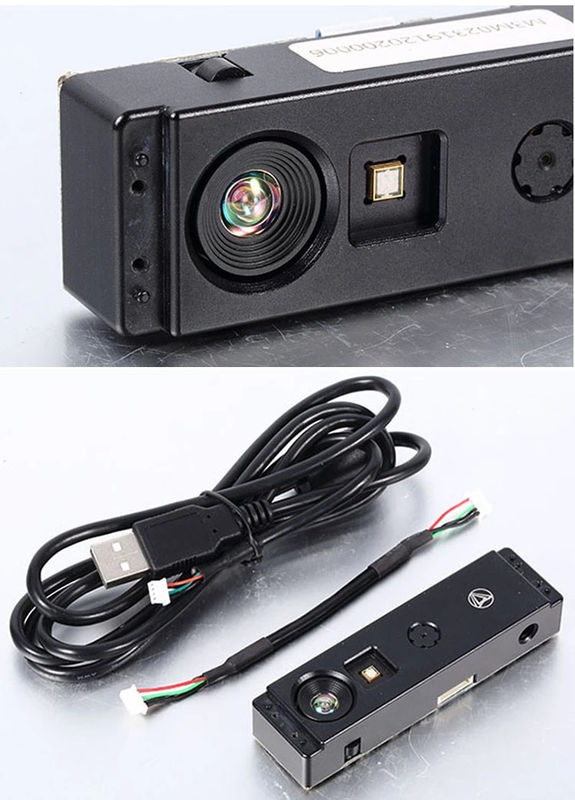

⚫ A 6pin to USB + power interface cable (5V);


Product Specifications


Specifications Specifications
Model M3
T O F Resolution (horizontal x vertical) 640×480
Field of view (horizontal and vertical) 80°× 60°
Frame Rate (fps) Maximum 30





Resolution (horizontal x vertical) Support 1080P/960P/720P/VGA


Field of view (horizontal and vertical)

74°× 56° @960P(Default)

63°× 37° @1080P

74°× 42°@720P

74°× 56°@VGA

Frame Rate (fps)

Maximum 30fps @ 960P/720P/VGA

Maximum 15fps @ 1080P

Video Coding JPEG,RGB
Detection range(unit:m) 0.35-1.2 0.5-3
Measurement accuracy 0.1% 0.3%
Measurement accuracy <1%
Light source 850nm VCSEL
Data transmission interface 6Pin terminal interface to USB 2.0
Power supply 6Pin terminal interface to 5V DC power interface
Typical power consumption(W) 3.2 3.6
Operating temperature(℃) 0-50
Operating system Windows7 and above,Linux,Android

Structure size (length × height × depth, single

Bit: mm)

85.5×23.5×18(No steel sheet installed)

96.3×23.5×18( with mounting steel sheet)

M3 Binocular ROHS Face Recognition Camera Module 850nm VCSEL 0M3 Binocular ROHS Face Recognition Camera Module 850nm VCSEL 1M3 Binocular ROHS Face Recognition Camera Module 850nm VCSEL 2M3 Binocular ROHS Face Recognition Camera Module 850nm VCSEL 3
