| Place of Origin: | China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE FCC ROHS |
| Model Number: | F5 Pro |
| Minimum Order Quantity: | 1pcs |
| Packaging Details: | 1pcs/box |
| Delivery Time: | 5-8days |
| Supply Ability: | 500pcs per week |
| Capacity: | 2+8GB | Size: | 8inch |
|---|---|---|---|
| Resolution:: | 800*1280 | Android: | Android 7.1 |
| Name: | Face Recognition Temperature Measuring Machine | Wall-mounted Type: | Turnstile Type |
| Highlight: | Android7.1 Face Recognition Temperature Measuring Machine,IR Face Recognition Temperature Measuring Machine,IR face recognition temperature measurement terminal |
||

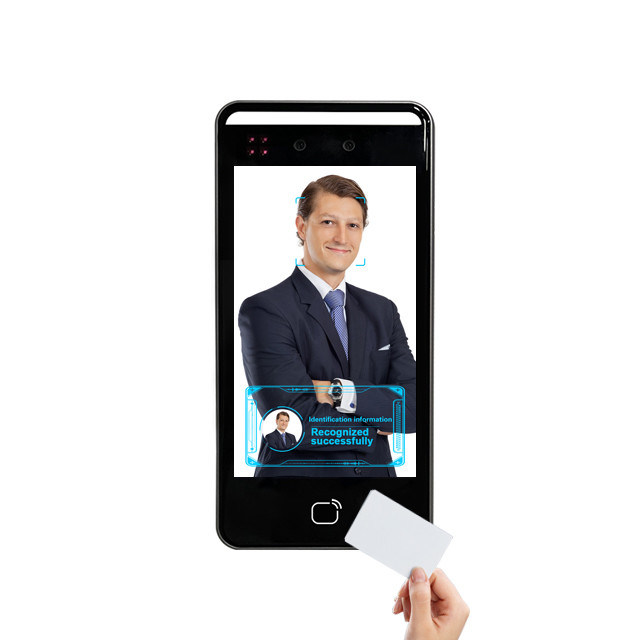

IR Android7.1 Face Recognition Temperature Measuring Machine Access control
Free Software 8inch Android F5 Pro 2MP RGB IR Android7.1 2+8GB Face Recognition with IC Card QR Code Temperature Check
Features of Face Recognition Infrared Thermometer
* Recognition is fast and accurate
* The capacity of the recognition library is large
* Powerful detection function
* Infrared live detection
* Interface standardization
* Support external ID card reader;
* Abnormal alarm reporting
Face Temperature Measurement Device Parameters:
| Face Recognition Infrared Terminal | ||||||
|
Model |
Wall-mounted Type |
Turnstile Type | ||||
|
Features |
Main function | Face recognition, Temperature detecting, Access control | ||||
| Use environment | Indoor & Outdoor | |||||
| Color | Cold Gray | |||||
|
Camera |
Type | RGB | IR | |||
| Resolution | 2 million pixels | 2 million pixels | ||||
| Aperture | F2.0±5% | F2.0±5% | ||||
| Focal length | 4.3mm±5% | 4.3mm±5% | ||||
|
Software wide dynamic |
Auto |
N/A |
||||
|
Vertical wide angle |
40° |
40° |
||||
|
Horizontal wide angle |
65° |
65° |
||||
| Infrared fill light | Support | Support | ||||
| White fill light | Support | Support | ||||
|
Core parameter |
Android | Android7.1 | ||||
| CPU | 4 cores,1.6GHz | |||||
| Storage | RAM 2G,ROM 8G | |||||
|
Man-machi ne Interactive |
Display |
8 inches, Full viewing angle, 170°IPS LCD screen, Resolution 800*1280 |
||||
| Touch Screen | Support | |||||
|
Human body sensing module |
Support |
|||||
|
Human body sensing module |
Test accuracy:0.1℃ | |||||
| Test error:≤±0.5℃ | ||||||
| Test distance (recommended distance) 50cm | ||||||
| Working temperature:10℃~40℃ | ||||||
|
Communica tion method |
Networks | 10/100/1000Mbps | ||||
| WIFI | Comply with IEEE802.11b/g/n standard (2.4G) | |||||
|
Reading Mode |
Face | Support | ||||
| IC card | Support | |||||
| QR code | Support | |||||
|
Input/Outpu t port |
RJ45 port | Support 100Mbps | ||||
|
USB port |
USB 2.0 |
|||||
| Power | Adaptor | DC12V-2A | ||||
|
Environmental Requirement |
Working temperature |
-20℃～60℃ | ||||
|
Working humidity |
20% to 90% (under non-condensing water dripping state) |
|||||
|
Static protection level |
IEC61000-4-2,LEVEL3 |
|||||
|
Install Method |
3 methods |
Wall-mounted kit |
Turnstile stand kit |
Ground stand kit |
||
·
Dual infrared and RGB fill light at night; Infrared temperature measurement, optional mask recognition
·Support RS-485 serial port, Wiegand 26/34 output interface, support relay, door switch, door magnetic output content
·Support 29,000 people to store historical records locally
·Support HTTP interface connection
Support Online and off line
