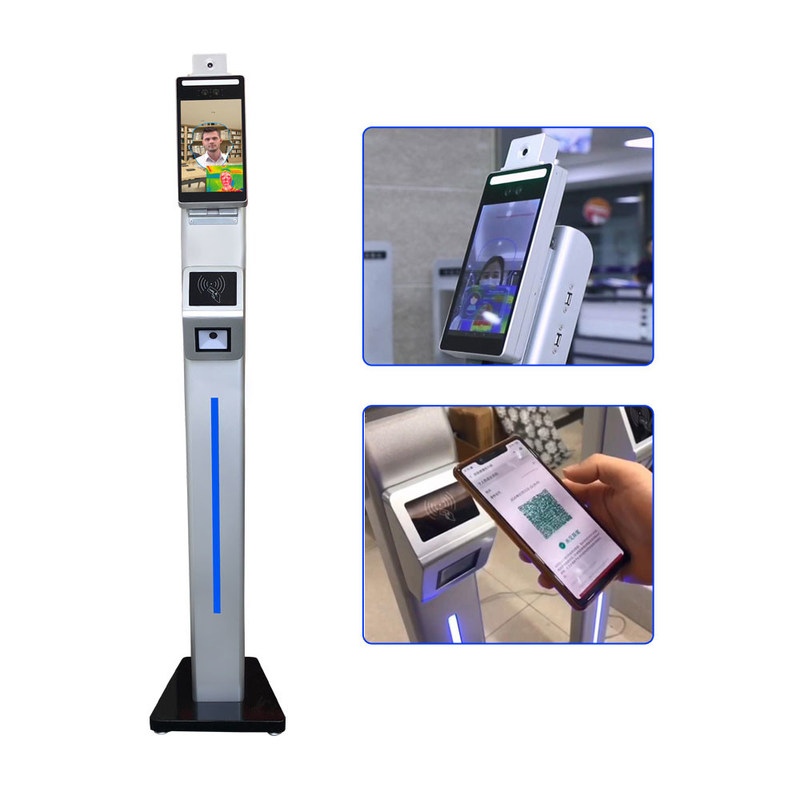

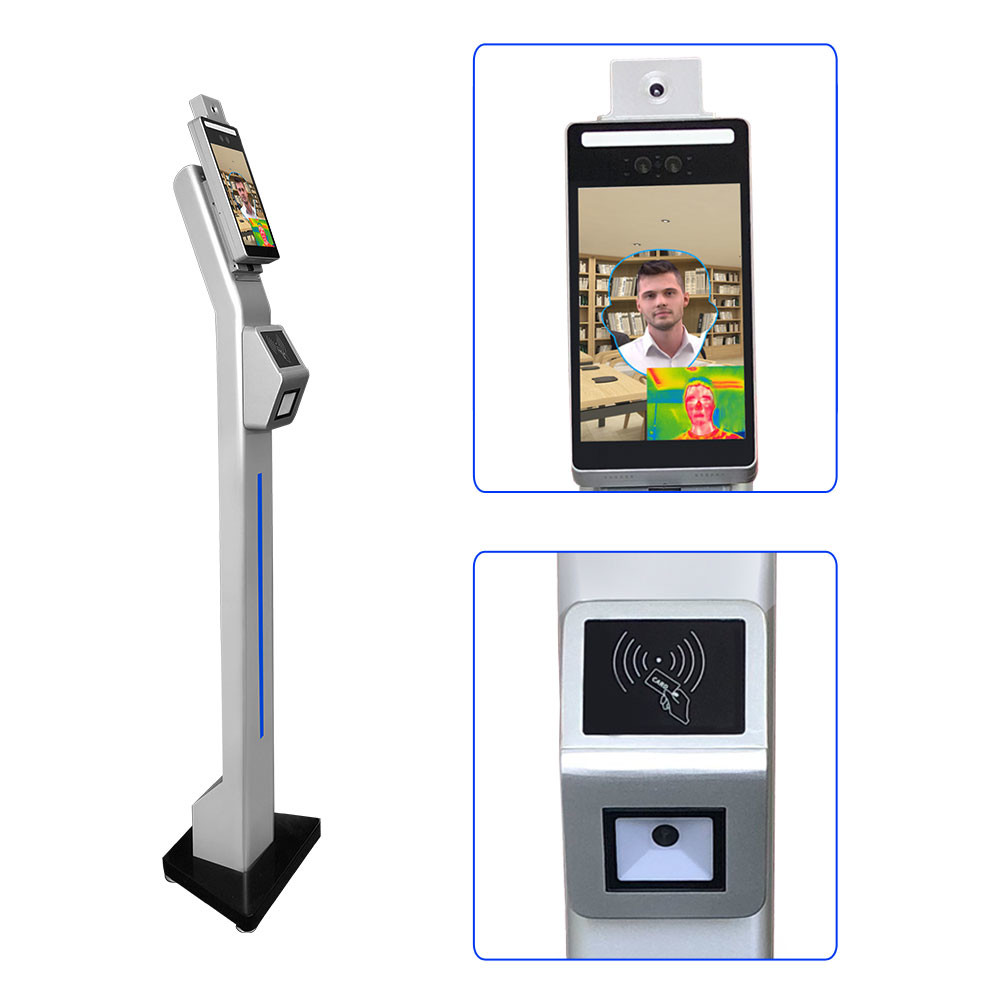

Android7.1 Face Recognition Temperature Measurement Terminal For School Staff

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE,FCC, ROHS
Model Number: F3-FHS
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Normal craft paper and foam
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/month
Main Function: Face Recognition Temperature Measurement Device Type: RGB Infrared
Resolution: 2million Aperture: F2.8
Software Dynamic: Automatic Vertical Wide Angle: 84
Horizontal Wide Angle: 54 Android: Android7.1
Feature: Attandence Record Download
High Light:

Android7.1 Face Recognition Temperature Measurement

,

Android7.1 Face Recognition Temperature Measurement Terminal

,

Android7.1 temperature face recognition terminal

Android7.1 Face Recognition Temperature Measurement Terminal For School Staff



Face recognition device attandence manage system with temperature measurement access control for school staff company



8” Facial Recognition Thermometer Display

Accurate thermal imaging, fever alarm, mask detection system, strip light indicator, all in one hardware/software system included, synchronise with existing systems, robust metal enclosure, clock in/out system, various mounting systems (pole/floor/wall/desk), and hand sanitiser add-on.

Automated Contactless Temperature Checking.
Using thermal imaging technology, in conjunction with cooling fans to maximise accuracy, this complete solution can read a user’s temperature and display the results in 1.8 seconds, even if they are wearing a mask. The automated nature of this system means it is completely contactless.



High Security Facial Recognition
With 99.7% identification accuracy, this solution can also be used as a check in/out system for offices, warehouses and other secure locations. You can create a whitelist/blacklist to control and restrict access, as well as recording all building entries. Adjust the identification security levels from using the photo on an ID card to high level military standard using a 3D face scan and body temperature check.


F3 Facial Recognition with Thermometer​ Face Identification System Product Specification

Face Recognition Temperature Measure all-in-one Machine
Product model F3-H



Characteristics

Main function Face recognition temperature measurement
Use environmen Indoor , semi-outdoor
Color Silver

















Camera

Type RGB Infrared
Resolution 2 million pixels 2 million pixels
Aperture F2.8 F2.8
Focal length 3.18mm 3.18mm

Software

Dynamic



automatic



automatic

Vertical wide

angle



84°



84°

Horizontal wide

angle



54°



54°

Infrared

supplement light

Support

White

supplement light

Support



Core parameters

Android Android7.1
CPU Quad-core, 1.8GHz
storage capacity RAM 2G ROM 8G











Human-comput er interaction



Monitor

8 inches, full viewing angle, 170 ° IPS LCD screen, resolution

800 * 1280

Touch screen support

Face sensing

module

support

Face temperature measurement

module



support,Serial / I2C interface

Card reader Support, Optional

Communication

method

Ethernet 10/100 Ethernet
WIFI Comply with IEEE802.11b / g / n standard (2.4G)



Identification Method

Face Support
IC card Support, optional



Input output interface

RJ45 interface Support 10/100 Mbps

Power supply

interface



DC12V-2A

Power Adapter DC12V-2A





Environmental requirements

Operating

temperature

-20℃~60℃

Working

humidity



20%~90% (non-condensing)

Static protection

level



IEC61000-4-2, LEVEL3

External Interface Definition
Type Interface Explanation
USB USB 2.0 Support
Ethernet port RJ45 10/100 Ethernet





Relay



NC COM NO

Relay normal off/Common/normal on.Usually,door lock supply is positively connected to the COM port,and then according to the door lock type,relay power negatively connected NO port or NC

port. Note: Maximum load of relay contact is 2A



Gate sensor

IN

GND



Check door open/close status, input

Exit

button

PUSH1

GND



Press the button,door opening control signal,input



Serial

RX

TX



RS232



Output power

5V

GND



Support device external output 5V



Wiegand

WG_D1 WG_D0

GND



Wiegand output interface, support 26bit / 34bit protocol



Input power

GND

12V+

Power input:12V DC











Temperature measurement module

Operating temperature



0℃ ~ +55℃

Storage temperature



-20℃ ~ +65℃

Power consumption



< 0.3w









Basic Parameters



Pixel



32*32 Real-time temperature output

Measurement accuracy



I + 0.5℃

Measuring distance



0.3 ~ 1.0m



WIFI



2.4G 802.11b/g/n



Bluetooth

4.0
