8 Inch ROHS Face Recognition Temperature Measurement Door Access Control

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE,FCC, ROHS
Model Number: F2-FHS
Minimum Order Quantity: 1PCS
Price: Negotiation
Packaging Details: Normal craft paper and foam
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000pcs/month
Main Function: Face Recognition Temperature Measurement Device Type: RGB Infrared
Resolution: 2million Aperture: F2.8
Focal Length: 3.18mm Software Dynamic: Automatic
Vertical Wide Angle: 84 Horizontal Wide Angle: 54
Android: Android7.1
High Light:

ROHS Face Recognition Temperature Measurement

,

ROHS face recognition temperature measuring machine

,

3.18mm Face Recognition Temperature Measurement

8 Inch ROHS Face Recognition Temperature Measurement Door Access Control



F2-H Android System 8 Inch Touch Screen Face Recognition Device with Temperature Measurement Door Access Control


Wall Mounted or Floor stand F2-H Facial Mask Recognition with Temperature Measurement For Attendance Record

With the outbreak of infectious disease, the face recognition with temperature measurement is very necessary. You can see many places such as school, supermarket , office,hospital and communities that need to check temperature and register personal information. Rakinda keep paces with time and develop the product F2-H, and developed its own application for access control or attendance.



F2-H F2-H Facial Mask Recognition with Temperature Measurement has below features:
· Dual infrared and RGB fill light at night; Infrared temperature measurement, optional mask recognition
· Support RS-485 serial port, Wiegand 26/34 output interface, support relay, door switch, door magnetic output content
· Support 29,000 people to store historical records locally
· Support HTTP interface connection

 Support Online and off line



This product is very mature and hot sale, which already have exported a lot to foreign countries, such as Israel, Serbia, Italy, Chile, etc. And customer can developed his own application based on our SDK and API. And our engineer is very professional and can communication with customer directly.


F2-H Facial Recognition with Thermometer​ Face Identification System Product Specification

Face Recognition Temperature Measure all-in-one Machine
Product model F2-H



Characteristics

Main function Face recognition temperature measurement
Use environmen Indoor , semi-outdoor
Color Silver

















Camera

Type RGB Infrared
Resolution 2 million pixels 2 million pixels
Aperture F2.8 F2.8
Focal length 3.18mm 3.18mm

Software

Dynamic



automatic



automatic

Vertical wide

angle



84°



84°

Horizontal wide

angle



54°



54°

Infrared

supplement light

Support

White

supplement light

Support



Core parameters

Android Android7.1
CPU Quad-core, 1.8GHz
storage capacity RAM 2G ROM 8G











Human-comput er interaction



Monitor

8 inches, full viewing angle, 170 ° IPS LCD screen, resolution

800 * 1280

Touch screen support

Face sensing

module

support

Face temperature measurement

module



support,Serial / I2C interface

Card reader Support, Optional

Communication

method

Ethernet 10/100 Ethernet
WIFI Comply with IEEE802.11b / g / n standard (2.4G)



Identification Method

Face Support
IC card Support, optional



Input output interface

RJ45 interface Support 10/100 Mbps

Power supply

interface



DC12V-2A

Power Adapter DC12V-2A





Environmental requirements

Operating

temperature

-20℃~60℃

Working

humidity



20%~90% (non-condensing)

Static protection

level



IEC61000-4-2, LEVEL3

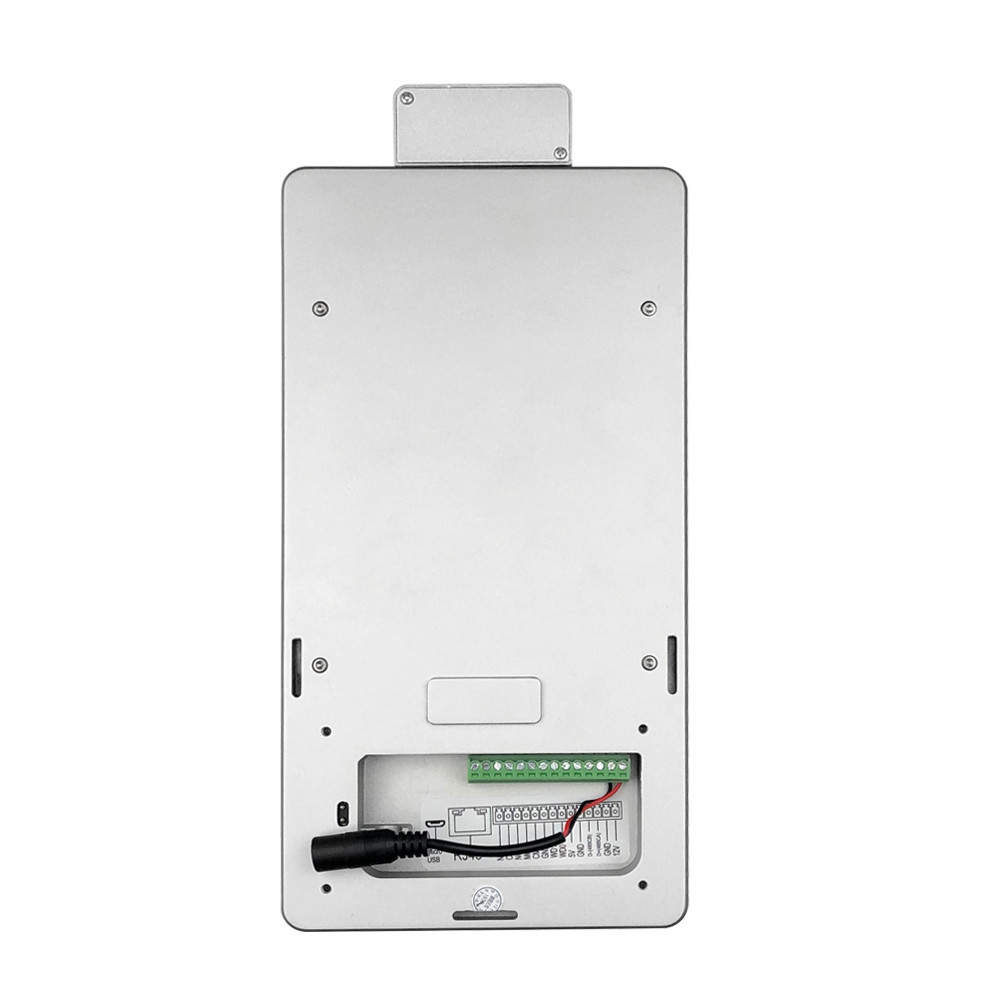

External Interface Definition
Type Interface Explanation
USB USB 2.0 Support
Ethernet port RJ45 10/100 Ethernet





Relay



NC COM NO

Relay normal off/Common/normal on.Usually,door lock supply is positively connected to the COM port,and then according to the door lock type,relay power negatively connected NO port or NC

port. Note: Maximum load of relay contact is 2A



Gate sensor

IN

GND



Check door open/close status, input

Exit

button

PUSH1

GND



Press the button,door opening control signal,input



Serial

RX

TX



RS232



Output power

5V

GND



Support device external output 5V



Wiegand

WG_D1 WG_D0

GND



Wiegand output interface, support 26bit / 34bit protocol



Input power

GND

12V+

Power input:12V DC











Temperature measurement module

Operating temperature



0℃ ~ +55℃

Storage temperature



-20℃ ~ +65℃

Power consumption



< 0.3w









Basic Parameters



Pixel



32*32 Real-time temperature output

Measurement accuracy



I + 0.5℃

Measuring distance



0.3 ~ 1.0m



WIFI



2.4G 802.11b/g/n



Bluetooth

4.0
