Android System 8inch 30cm Face Recognition Temperature Measurement

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE/ROHS/FCC
Model Number: F2-H
Minimum Order Quantity: 1
Price: USD+450-599$+1pcs
Packaging Details: Paper Carton package
Payment Terms: T/T, Paypal, Credit card
Supply Ability: 1000+pcs+per week
Display: 8 Inch Size: 275mm*123mm*30mm
Accuracy: 0.5℃ Measuring Distance: 30cm-100cm
Capacity: 2000 Faces System: Android 7.1
Interface: USB/RS485/RJ45/WIegand Working Temperature: -20℃-60℃
High Light:

30cm Face Recognition Temperature Measurement


RS232 Face Recognition Temperature Measurement


100cm Face Recognition Temperature

Android System 8inch 30cm Face Recognition Temperature Measurement

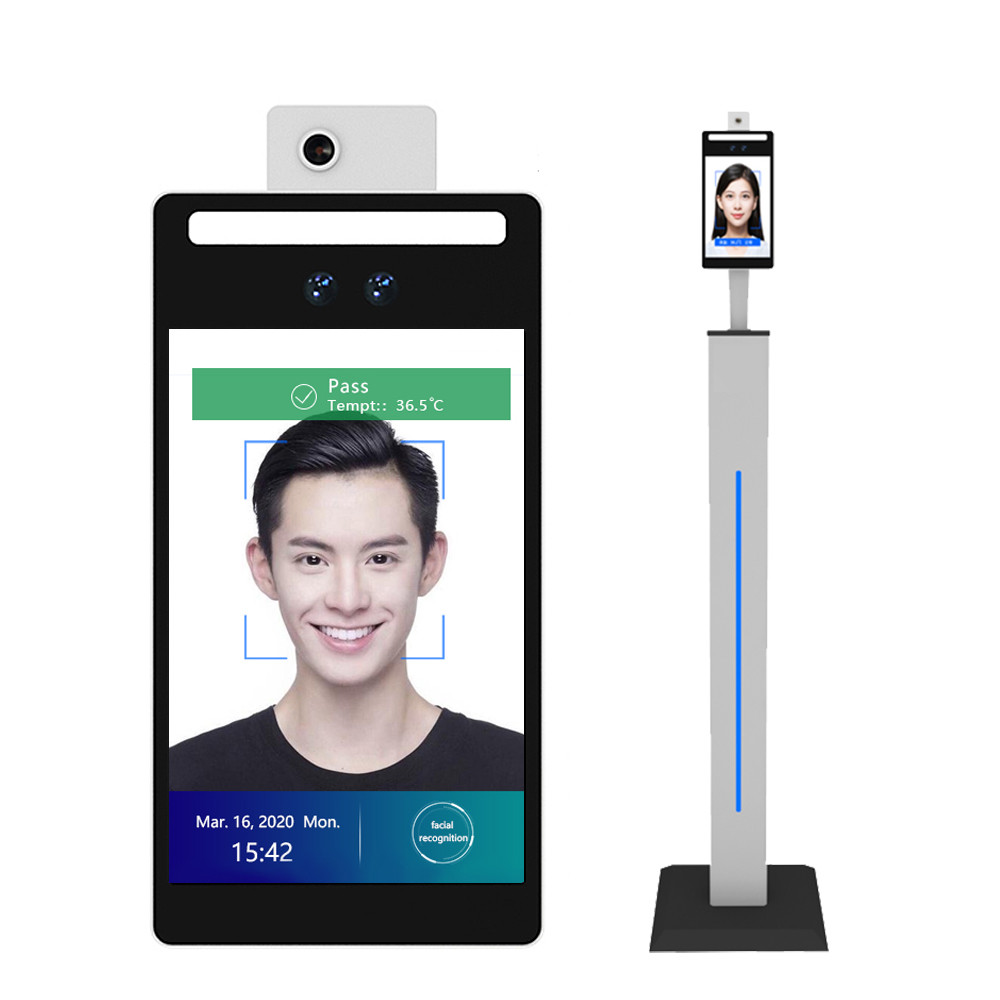

F2-H face recognition device description:

Our F2-H is Face Recognition Thermal Imaging Temperature Measuring Device, can recognize face with mask or not, and same times check your temperature and broadcast, the data record will be uploaded to your server or keep it in the device.

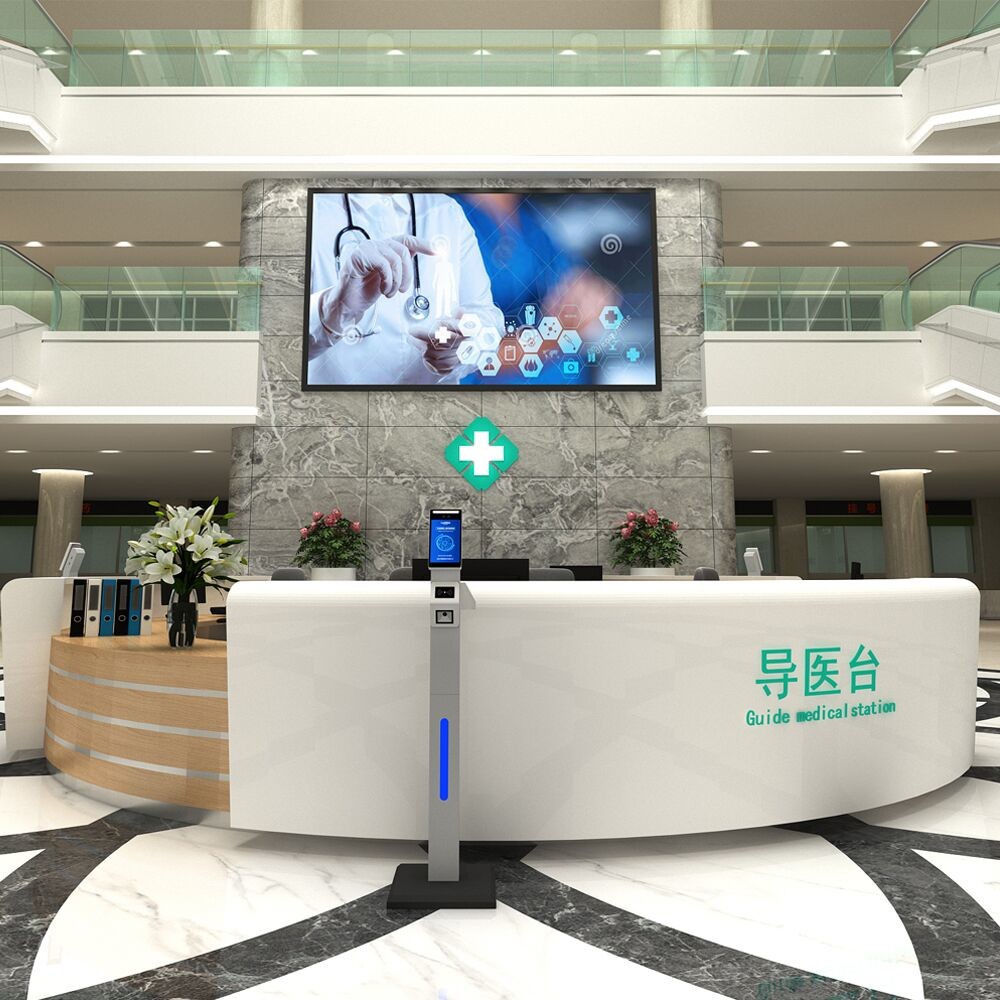

F2-H Thermal imaging face recognition device Application Field:
F2-H is suitable for office areas, hotel, office buildings, schools, shops, communities, public services and
management projects.

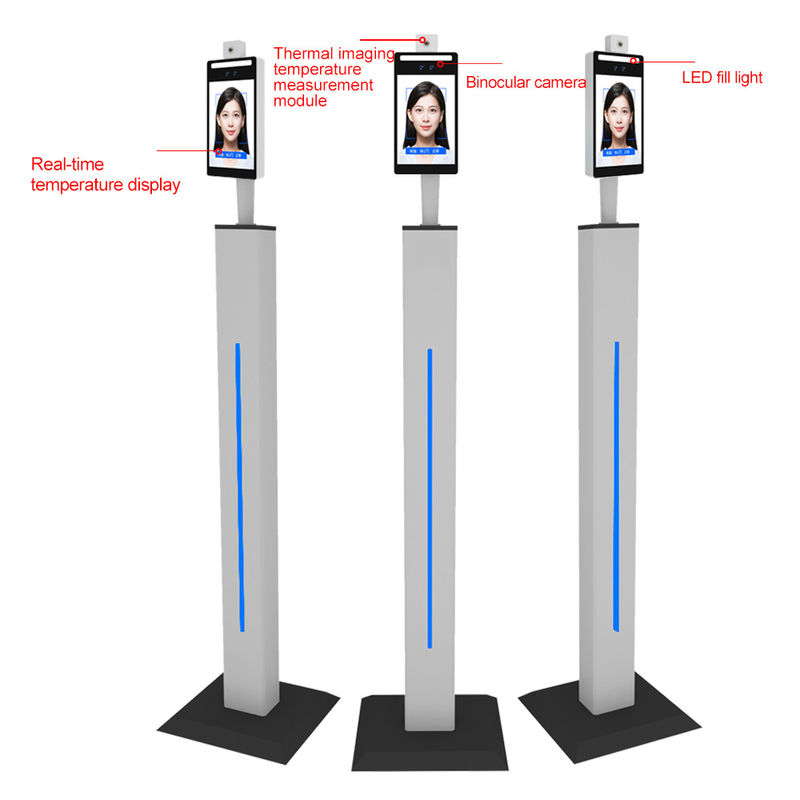

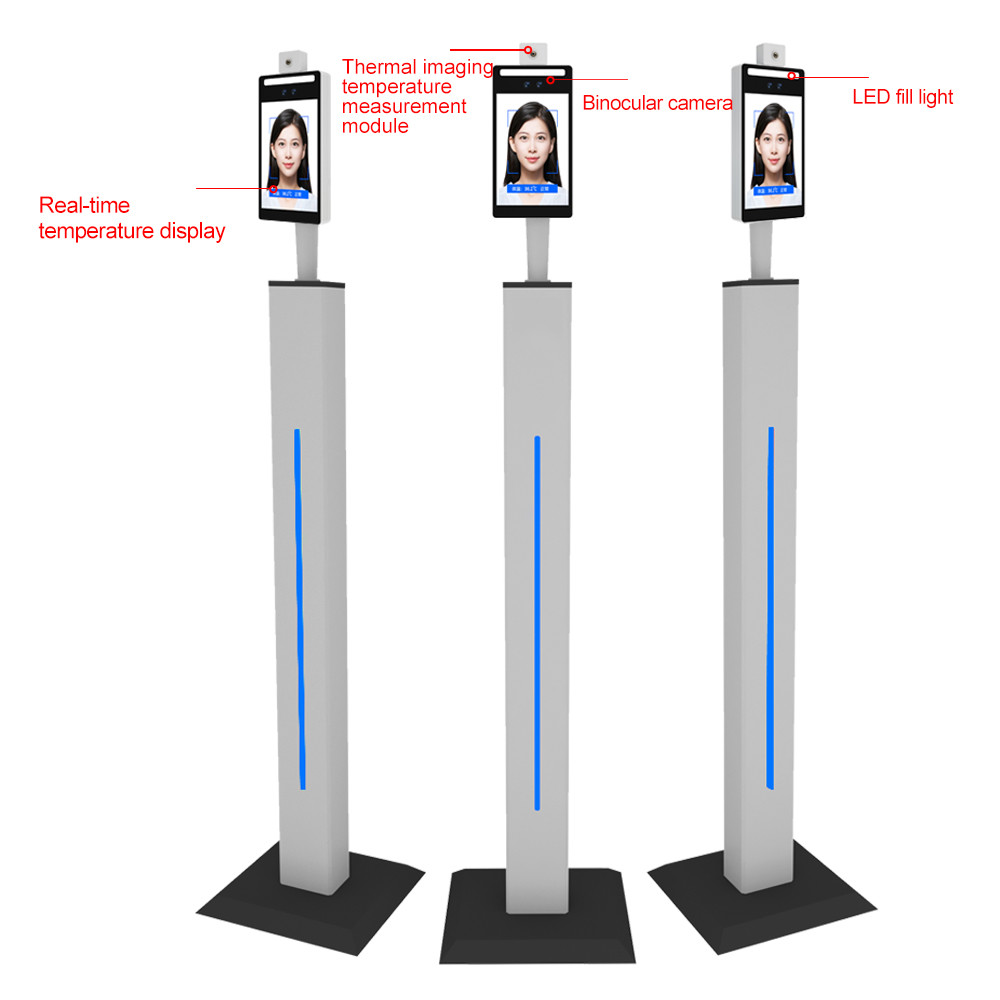

Main Features
1: Dynamic detection, solve the deception of photos on various carriers
2:  Infrared mode at night, RGB dual fill light
3:  Support external access control card reader, QR code scanner, ID card reader
4: Support RS232 serial port, Wiegand 26/34 output, support relay, exit switch, door magnetic output content
5: Support local storage of 500,000 historical records
6: Support 20,000 face library


Facial recognition device Parameter:

Product Parameters:

Face Recognition Terminal Product Parameters
Screen Size 8", full viewing angle, 170° IPS LCD
Resolution 800*1280
Camera Type RGB TOF
Resolution (horizontal × vertical) Support 1080P/960P/720P/VGA 640× 480 Pixel
Field of view (horizontal × vertical) 74° × 56° @960P (Default) 80° × 60°
63° × 37° @1080P
74° × 42° @720P
74° × 56° @VGA
Frame rate (FPS) Maximum 30FPS @960P/720P/VGA Up to 15FPS @1080P MAX 30FPS
Detection distance (unit: meter) 0.35-1.2
light source 850nm VCSEL
Working temperature (degree Celsius °C) 0℃-50℃
Core parameter CPU 6 cores, clocked at 2.0GHz
OS Android 7.1.2
Parts Fill light Infrared, LED fill light
Network module Support wired, wireless (2.4GWi-Fi), wireless (USB external)
Bluetooth Module 4.0
4G communication module Optional (built-in or external)
ID card reader Optional (built-in or external)
GPS Optional (built-in or external)
Port USB USB2.0 1
RD232 RS232 serial port, 2.5mm terminal block 2P
Relay output 2.5mm terminal block 3P
Wiegand interface 2.5mm terminal block 3P, support Wiegand 26
Wired network interface RJ45 Gigabit network
General parameters IP Protection IP54
Power DC12V (±10%) /3A
Operating temperature -20℃ ~70℃
Working humidity 10%~90 %
Power consumption 22W MAX
Installation method Wall bracket installation, gate bracket installation

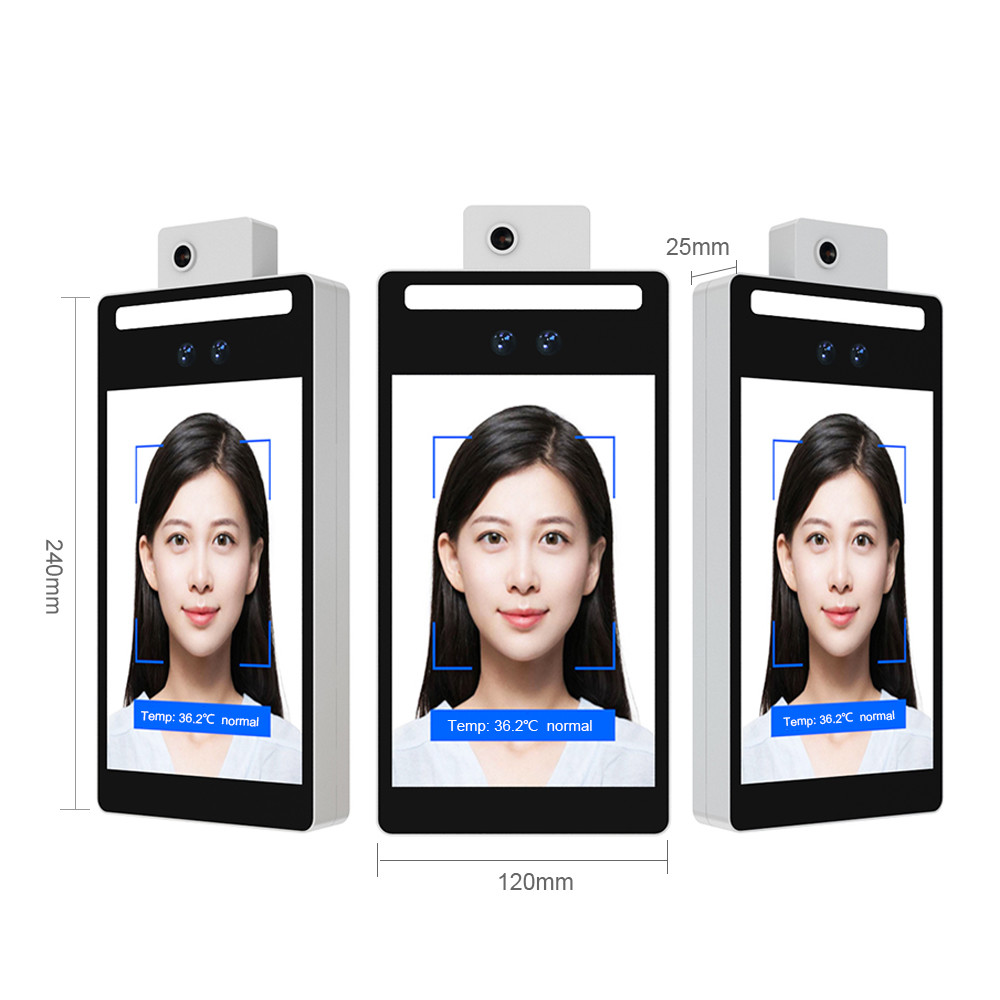

Equipment size 31cm x 12cm x 17cm


Android System 8inch 30cm Face Recognition Temperature Measurement 0Android System 8inch 30cm Face Recognition Temperature Measurement 1

Android System 8inch 30cm Face Recognition Temperature Measurement 2

Android System 8inch 30cm Face Recognition Temperature Measurement 3

Company Advantages:

Our company is specialized in barcode scanner for 20 years since 2000, we have professional research

developement team, has our own factory, support OEM design. We have many customers from different

countries already. And we are Gold supplier in the Alibaba. Our product is certificated by CE,ROHS and FCC.



Q1: Can I get some samples? Are they free?
A1: We support 1-2pcs sample order. Samples should be paid.


Q2: How can I buy?
A2: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us directly

according to the contact info. We will send you proper link directly.


Q3: What is your payment method?
A3: We accept Alibaba online orders by Credit card, PayPal ,T /T


Q4: How long is your warranty time?
A4: Our officially promised warranty time is 1 year after delivery.


Q5: Where can we download the user manual of the scanners?
A5: We will send by email after you get samples.


Q6: What's the lead time?
A6: For sample, it is typically within 5-7days by DHL. For bulk order, it depends on quantity and model you order.


Q7: Can you provide OEM service?
A7: Yes. We need further discuss about details.


Q8: If I come across any problem during product using, where I can get the support ?
A8: We support you technically 24h/7.please send all your questions to us. and we will give the professional,patient,

expliantion by email or call in time.


Q9: How do you ship the scanners usually?
A9: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail. We also can ship the goods by your shipping account or other express agent you provided.


Sincerely, wish we have the honour and chance to serve for you. I promise you will be satisfied with our products and services.

If there is anything we can do for you please feel free to let us know and contact us.

Thanks for your time and wish you have a nice day.
