3M 256*192 Ir Temperature Sensor Module infrared Thermal Imaging

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE, FCC, RoHS
Model Number: FT20
Minimum Order Quantity: 1 pc
Packaging Details: carton package
Delivery Time: about 3 work days
Payment Terms: Western Union, T/T, paypal, Credit Card
Supply Ability: 10000 pcs per month
Model: Temperature Sensor Camera Module Camera: RGB+Thermal Imaging
Operating Temperature: -15℃~+60℃ Accuracy: ±0.5℃
Dimensions: 91mm (L)*48mm(W)*25mm(H) Measuring Distance: 0.3 ~ 3.0m
Interface: USB
High Light:

256*192 Temperature Sensor Camera Module

,

3.0m Temperature Sensor Camera Module

,

3.0m infrared thermometer module

3M 256*192 Ir Temperature Sensor Module infrared Thermal Imaging



Rakinda FT20 Uncooled Thermal Imaging Temperature Measurement Module



Description of Temperature Sensor

The FT20 thermal imaging module is developed based on wafer chip scale packaging uncooled vanadium oxide infrared detector, fit for working with various intelligent platform, compatible with android, windows and linux. It boasts the features of high performance, low power consumption, small size and easy for development and integration. It meets the secondary development requirement of various infrared temperature measuring applications. With our given Demo and SDK, it saves developers a lot of time for integration. With the added high resolution 2592(H)x1944(V) RGB sensor, it can capture high quality image for accurate analysis.


Features of Thermal Imaging Module

1. RGB+Thermal Imaging

2. Support Android, Windows, Linux

3. Free SDK, Demo Software

4. Support Multiple Person Detection at same time

5. Support Long Distance Detection Up to 3 Meters

6. USB Interface, easy for integtation


FT20 Technical Parameter

Model FT20
Resolution 256×192
Cellspacing 12μm
Angle of view 25.5°×19.2°
Image frame rate 25Hz/15Hz
NETD ≤60mK@f#1.0
Operating temperature -15℃~+60℃
Supply voltage 3.8V-5.5V DC
Power consumption <200mW*
Weight <18g
Size / mm 20*20*21
Data interface Control interface/USB
Control interface SPI/I2C/USB
Image enhancement Multi-gear detail enhancement
Picture correction Shutter correction
Swatches White Hot/Black Hot/Multiple Pseudo Color Options
Temp measurement range 0 ℃ ~ + 60 ℃
Temp measurement accuracy ± 0.5 ℃
Temp correction Manual / Auto
Temperature data output Real-time parallel output
Temp measurement statistics Support maximum / minimum statistics, Temperature analysis

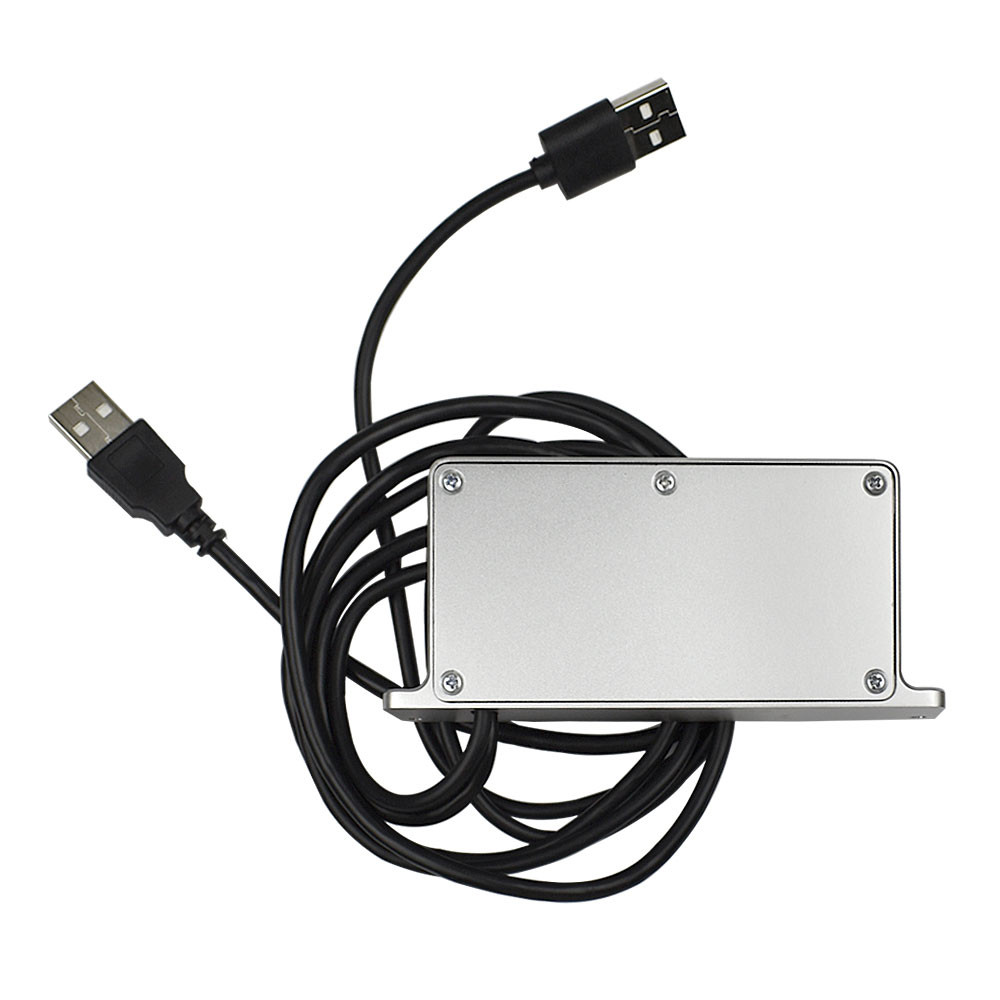

3M 256*192 Ir Temperature Sensor Module infrared Thermal Imaging 0

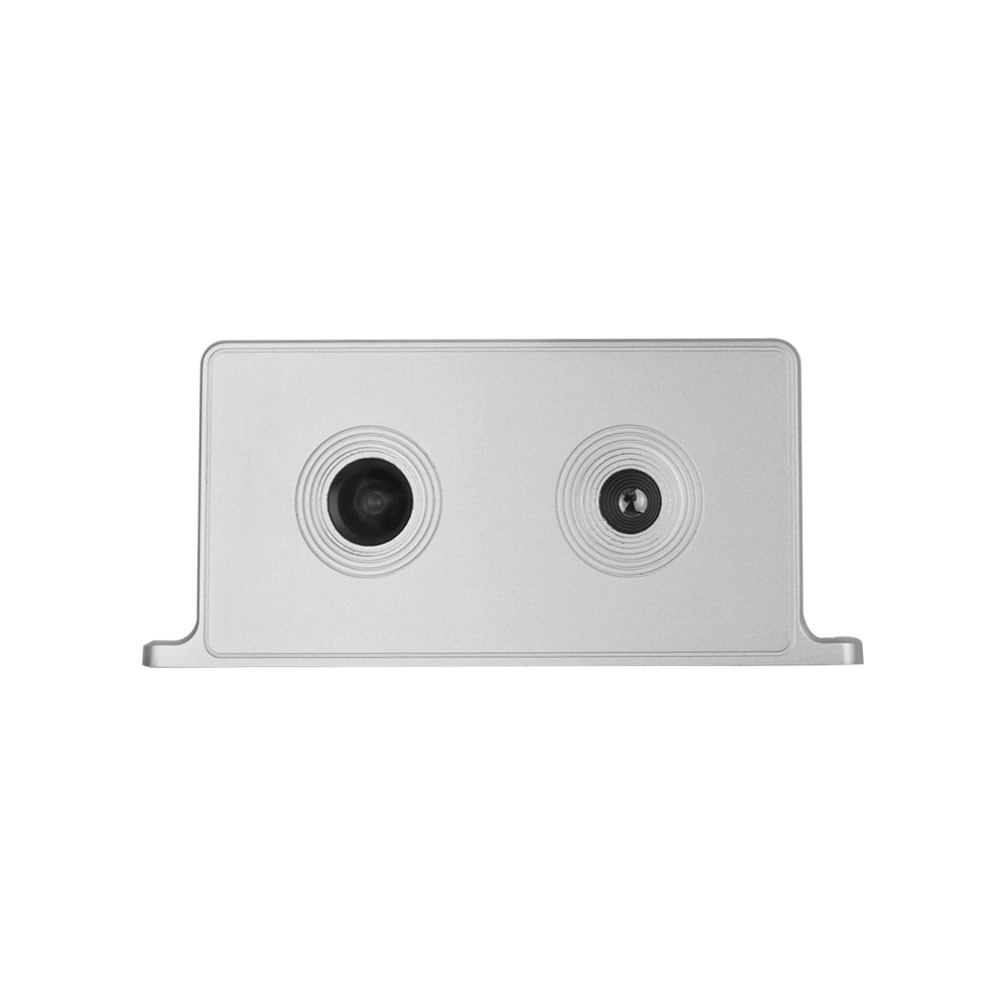

3M 256*192 Ir Temperature Sensor Module infrared Thermal Imaging 13M 256*192 Ir Temperature Sensor Module infrared Thermal Imaging 2





Applications:

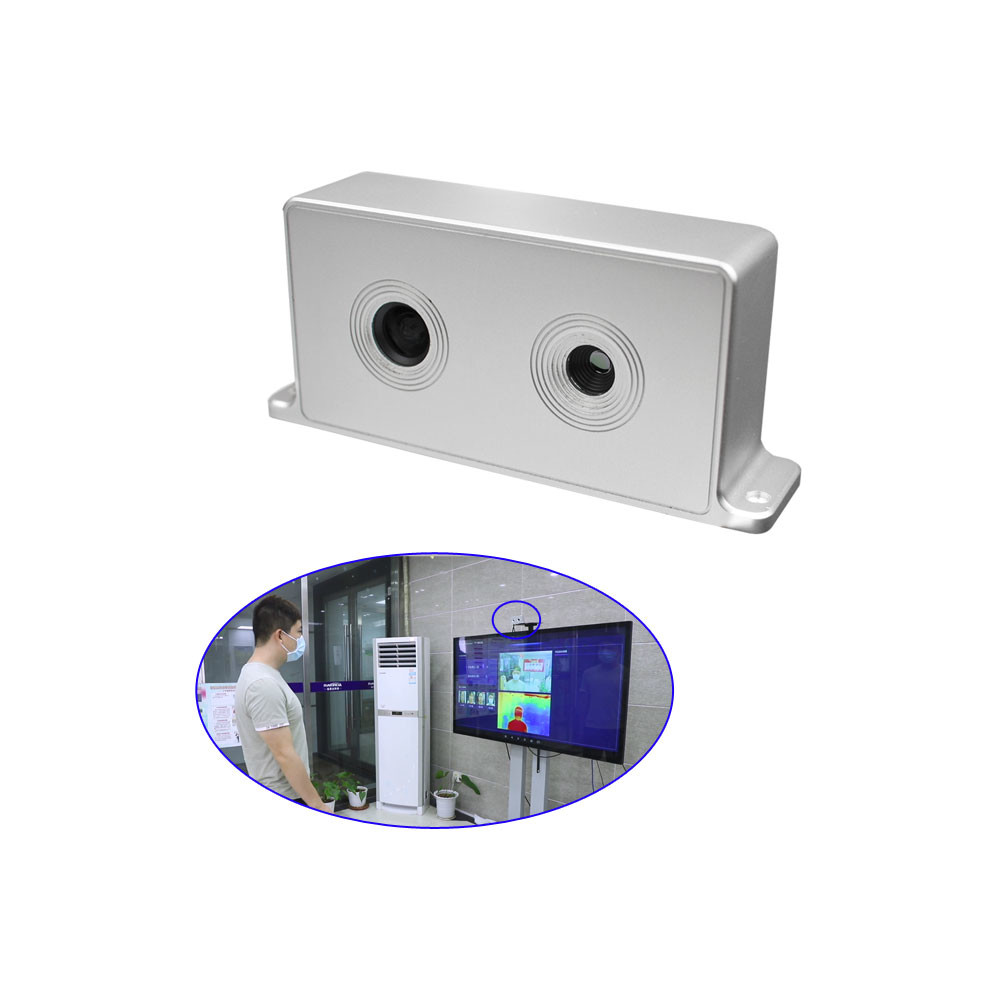

FT20 can be integrated into face recognition terminal or CCTV system as an effective way for multiple person temperature measurement. It is suitable for office areas, hotel, office buildings, schools, shops, communities, public services and management projects.

Company Advantages:
1. Rakinda has been in Automatic Identification and Internet of Things since 2000
2. Several offices in Guangzhou, Shenzhen, Xiamen, Suzhou, Beijing and Chongqing.
3. We have more than 10 R&D personnels with over 15 years experience.
4. We can ship with fast express within 24 hours, and arrive customer in 3~7 days.



FAQ:

Q1: Can I get some samples? Are they free?
A1: We support 1-2pcs sample order. Samples should be paid.

Q2: How can I buy?
A2: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us directly

according to the contact info. We will send you proper link directly.

Q3: What is your payment method?
A3: We accept Alibaba online orders by Credit card, PayPal ,T /T

Q4: How long is your warranty time?
A4: Our officially promised warranty time is 1 year after delivery.

Q5: Where can we download the user manual of the scanners?
A5: We will send by email after you get samples.

Q6: What's the lead time?
A6: For sample, it is typically within 5-7days by DHL. For bulk order, it depends on quantity and model you order.

Q7: Can you provide OEM service?
A7: Yes. We need further discuss about details.

Q8: If I come across any problem during product using, where I can get the support ?
A8: We support you technically 24h/7.please send all your questions to us. and we will give the professional,patient,

expliantion by email or call in time.

Q9: How do you ship the products usually?
A9: We usually use DHL, UPS, Fedex, TNT. We also can ship the goods by your shipping account or other express agent you provided.
