| Place of Origin: | China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE, FCC, RoHS |
| Model Number: | F2-H |
| Minimum Order Quantity: | 1 pc |
| Packaging Details: | carton package |
| Delivery Time: | about 3 work days |
| Payment Terms: | Western Union, T/T, paypal, Credit Card |
| Supply Ability: | 10000 pcs per month |
| Model: | Face Recognition Termnal | Camera: | RGB+Infrared |
|---|---|---|---|
| Face Capacity: | 20000 Face Library | Accuracy: | ±0.5℃ |
| Dimensions: | 275.8mm*123.8mm*30.2mm | Measuring Distance: | 0.3 ~ 1.0m |
| Interface: | USB, RS232, Ethernet, Relay, Wiegand | ||
| High Light: | 1.0m AI Face Recognition Temperature Measurement,RGB Infrared Face Recognition Temperature Measurement,1.0m Infrared Face Recognition Terminal |
||
RGB Infrared 1.0m AI Face Recognition Temperature Measurement Terminal
Rakinda F2-H Android 8 Inch Facial Recognition Terminal for Access Control and Attendance
Description of face recognition terminal
Rakinda F2-H face recognition tablet is embedded type certification device based on Android system. It is suitable for office areas, hotel gates, office buildings, schools, shops, communities, public services and management projects. It supports 1280P HD cameras, speakers, COM ports and TCP/IP communication methods, supports external ID SD card readers, QR code readers and ID card readers and supports multiple identity authentication methods, which can be used for time attendance and personnel access control.

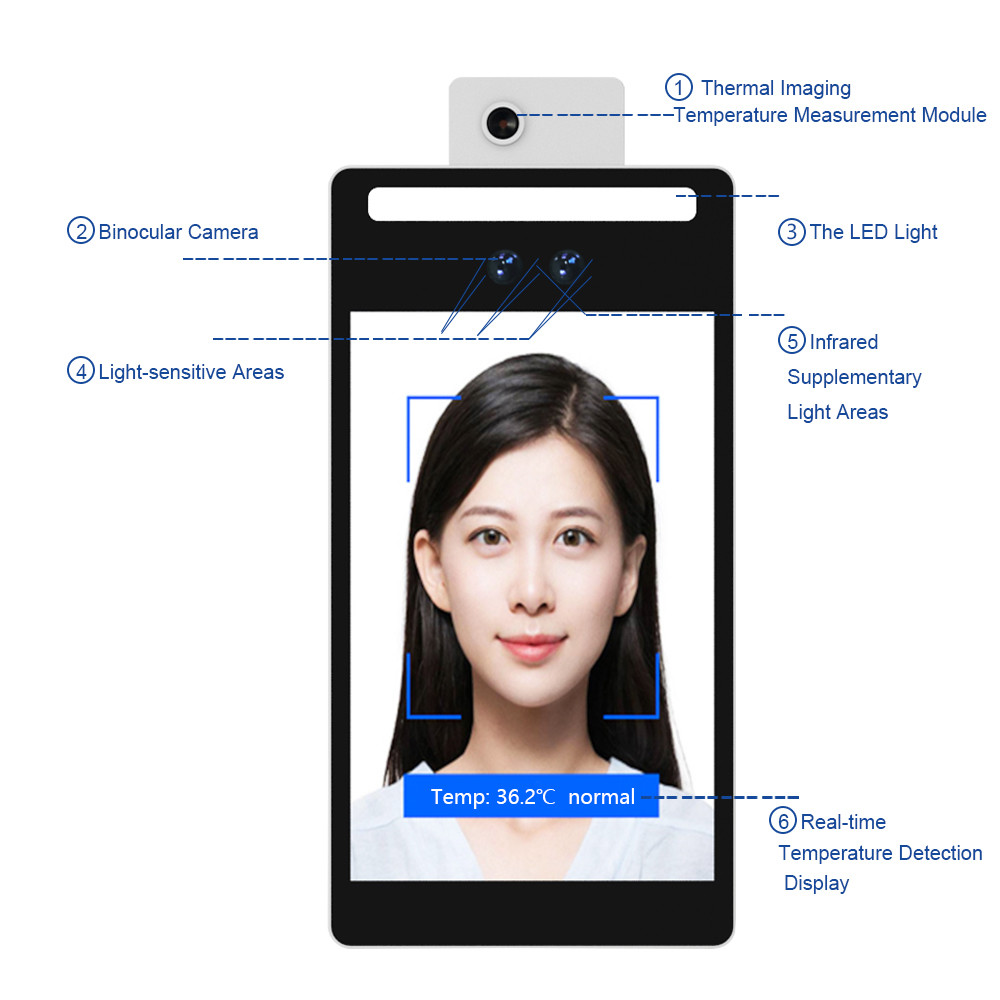

Features of Facial Recognition Device
1. 3D Living Detection-RGB Infrared Binocular Camera
2. 20000 Local Face Capacity
3. More than 500000 local records
4. Free SDK API, Software, Cloud Server
5. Support Mask Detection, High Temperature Alarm
6. Support RS232 serial port, Wiegand 26/34 output, support relay, exit switch, door magnetic output content
7. Multiple Language for Software Interface: Japanese, Vietnamese, Thai, Portuguese, French, Polish, Arabic; Simplified Chinese, English, Spanish, Italian, Korean, Russian, Serbian, Traditional Chinese, Hungarian, Hebrew, Romanian. And more to be added.
F2-H Technical Parameter
| Face Recognition Temperature Measure all-in-one Machine | |||
| Product model | F2-H | ||
|
Characteristics |
Main function | Face recognition temperature measurement | |
| Use environmen | Indoor , semi-outdoor | ||
| Color | Silver | ||
|
Camera |
Type | RGB | Infrared |
| Resolution | 2 million pixels | 2 million pixels | |
| Aperture | F2.8 | F2.8 | |
| Focal length | 3.18mm | 3.18mm | |
|
Software Dynamic |
automatic |
automatic |
|
|
Vertical wide angle |
84° |
84° |
|
|
Horizontal wide angle |
54° |
54° |
|
|
Infrared supplement light |
Support | ||
|
White supplement light |
Support | ||
|
Core parameters |
Android | Android7.1 | |
| CPU | Quad-core, 1.8GHz | ||
| storage capacity | RAM 2G ROM 8G | ||
|
Human-comput er interaction |
Monitor |
8 inches, full viewing angle, 170 ° IPS LCD screen, resolution 800 * 1280 |
|
| Touch screen | support | ||
|
Face sensing module |
support | ||
|
Face temperature measurement module |
support,Serial / I2C interface |
||
| Card reader | Support, Optional | ||
|
Communication method |
Ethernet | 10/100 Ethernet | |
| WIFI | Comply with IEEE802.11b / g / n standard (2.4G) | ||
|
Identification Method |
Face | Support | |
| IC card | Support, optional | ||
|
Input output interface |
RJ45 interface | Support 10/100 Mbps | |
|
Power supply interface |
DC12V-2A |
||
| Power | Adapter | DC12V-2A | |
|
Environmental requirements |
Operating temperature |
-20℃～60℃ | |
|
Working humidity |
20%~90% (non-condensing) |
||
|
Static protection level |
IEC61000-4-2, LEVEL3 |
||
| External Interface Definition | |||
| Type | Interface | Explanation | |
| USB | USB 2.0 | Support | |
| Ethernet port | RJ45 | 10/100 Ethernet | |
|
Relay |
NC COM NO |
Relay normal off/Common/normal on.Usually,door lock supply is positively connected to the COM port,and then according to the door lock type,relay power negatively connected NO port or NC port. Note: Maximum load of relay contact is 2A |
|
|
Gate sensor |
IN GND |
Check door open/close status, input |
|
|
Exit button |
PUSH1 GND |
Press the button,door opening control signal,input |
|
|
Serial |
RX TX |
RS232 |
|
|
Output power |
5V GND |
Support device external output 5V |
|
|
Wiegand |
WG_D1 WG_D0 GND |
Wiegand output interface, support 26bit / 34bit protocol |
|
|
Input power |
GND 12V+ |
Power input:12V DC | |
|
Temperature measurement module |
Operating temperature |
0℃ ~ +55℃ |
|
| Storage temperature |
-20℃ ~ +65℃ |
||
| Power consumption |
< 0.3w |
||
|
Basic Parameters |
Pixel |
32*32 Real-time temperature output |
|
| Measurement accuracy |
±0.5℃ |
||
| Measuring distance |
0.3 ~ 1.0m |
||
|
WIFI |
2.4G 802.11b/g/n |
||
|
Bluetooth |
BluetooH4.0 |
||
Applications:
F2-H is suitable for office areas, hotel, office buildings, schools, shops, communities, public services and management projects.
