Thermal Camera SDK FT20 Face Recognition Temperature Measurement Device

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE,FCC,ROHS
Model Number: FT20
Minimum Order Quantity: 1pcs
Packaging Details: 1pcs/box
Supply Ability: 1000pcs per month
Resolution: 256×192 Cellspacing: 12μm
Angle Of View: 25.5°×19.2° Supply Voltage: 3.8V-5.5V DC
Name: Face Recognition Temperature Measurement Image Frame Rate: 25Hz/15Hz
High Light:

SDK FT20

,

SDK FT20 Face Recognition Temperature Measurement Device

,

3.8V Face Recognition Temperature Measurement

FT20 Multi-Person Infrared Thermal Uncooled Camera

Description of Thermal Camera Scanner

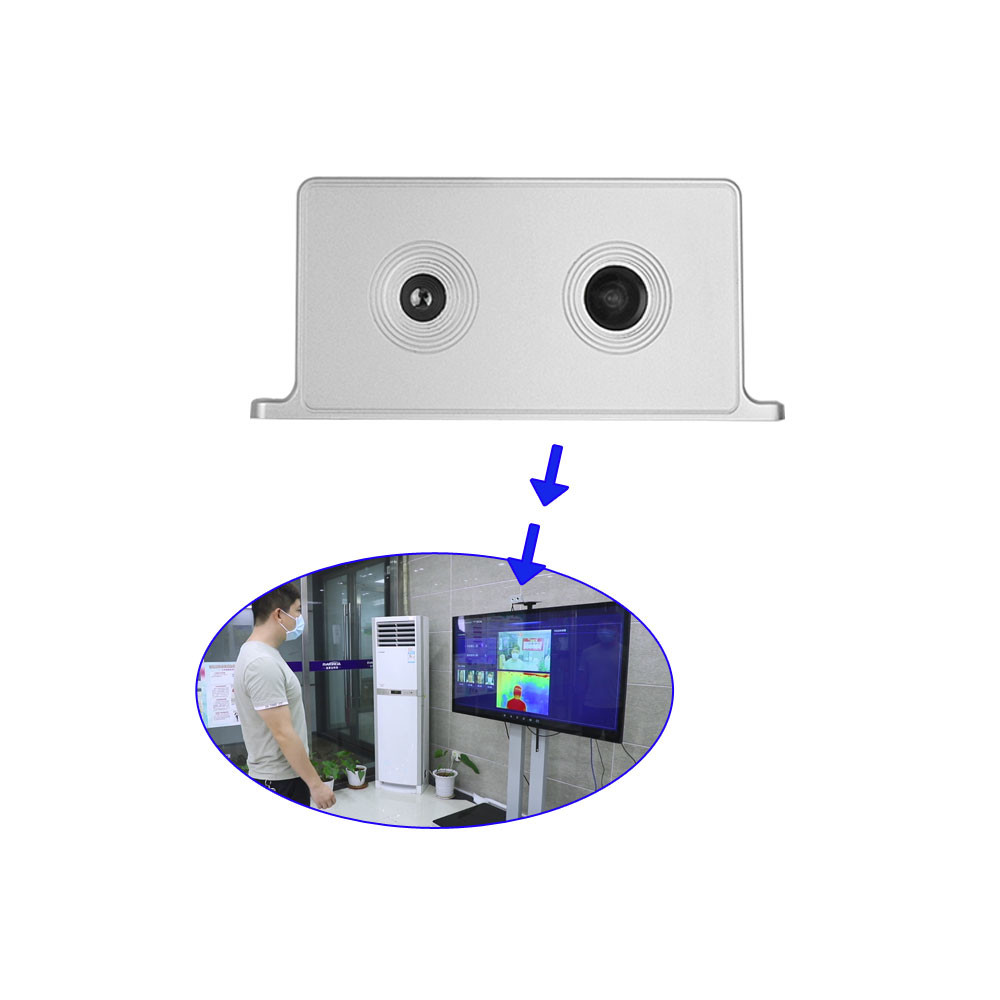

The temperature measuring thermal imaging module is developed based on wafer chip scale packaging uncooled vanadium oxide infrared body temperature detector, fit for working with various intelligent platform. It boasts the features of high performance, low power consumption, small size and easy for development and integration. It meets the secondary development requirement of various infrared temperature measuring applications. The thermal imager module can be connected to a face recognition device or an Android device for multi-person temperature measurement.

Thermal Camera Module Features
* Small size, easy integrated,size :91mm (L)*48mm(W)*25mm(H);
* USB interface, easy to connect;
* Low power consumption;
* High image quality
* Accurate temperature measurement;
* Standard data interface, supporting secondary development, easy to integrate, and supporting access to various intelligent processing platforms.
* Provide multi-person temperature measurement DEMO

Thermal Imaging System Precautions:
* For Indoors,no outdoor use
* No sun exposure
* Prohibited in heavy windy places
* Prohibited in rainy places



Free SDK FT20 Thermal Camera 256*192 High Resolution Multi Person Temperature Measure Device Product Parameters:

Model FT20
Resolution 256×192
Cellspacing 12μm
Angle of view 25.5°×19.2°
Image frame rate 25Hz/15Hz
NETD ≤60mK@f#1.0
Operating temperature -15℃~+60℃
Supply voltage 3.8V-5.5V DC
Power consumption <200mW*
Weight <18g
Size / mm 20*20*21
Data interface Control interface/USB
Control interface SPI/I2C/USB
Image enhancement Multi-gear detail enhancement
Picture correction Shutter correction
Swatches White Hot/Black Hot/Multiple Pseudo Color Options
Temp measurement range 0 ℃ ~ + 60 ℃
Temp measurement accuracy ± 0.5 ℃ / ± 5% of range
Temp correction Manual / Auto
Temperature data output Real-time parallel output
Temp measurement statistics Support maximum / minimum statistics, Temperature analysis

Thermal Camera SDK FT20 Face Recognition Temperature Measurement  Device 0Thermal Camera SDK FT20 Face Recognition Temperature Measurement  Device 1

Company Profile

Rakinda Technologies Co.,Ltd (The predecessor is Longview Tech Enterprise Co., Limited ) has been established since 2000, which has 6 branches in total, which are in Guangzhou, Shenzhen, Xiamen, Suzhou, Chengdu, Beijing and HongKong. "Rakinda" and "SCANMAX" are our two independent brands. Rakinda is also a leading worldwide Internet of Things solution provider, which is specialized in 1D/2D barcode identification technology (Embedded/Fixed Mount/Handheld/Desktop Barcode Scanner, Android PDA, Mobile POS, etc.) , radio frequency identification (UHF) technology and face recognition technology almost 20 years . We are oriented by customer demands , focus on development and innovation of intelligent systems and strive to provide most competitive IoT application solutions and services. Promoting people's lifestyle to be more intelligent is our infinite pursuit.



Independent R&D Center

Our Independent R&D Center keeps focusing on IoT design and manufacture, we have rich theoretical knowledge, practical experience, professional design and products manufacture ability, so as to meet all kinds of customers requirements. Through joint efforts of our team, we have been granted National High-tech Enterprise Award ,Software Product certificate and Software Enterprise certificate. At present, Rakinda has provided complete and mature solutions and technical support in these fields of access control, kiosk, turnstile, vending machine, smart retail, smart hotel, smart campus and smart medical treatment. So far we have won unanimous praise of the industry.



We create a bright future with hand in hand and implement the business philosophy of customer first. Through continuous exploration and innovation, we aim to achieve win-win cooperation with customers in near future together!

Thermal Camera SDK FT20 Face Recognition Temperature Measurement  Device 2
QUALITY CONTROL
Our QC procedure and testing details are as following: Incoming material/component inspection (IQC) -- Quality inspection on production line (LQC) -- In-process quality control (IPQC)(several IPQC process) -- Final quality control (FQC) -- After packing inspection (QA) –- Shipment
QUALITY CONTROL
Our QC staffs have rich experience and are equipped with advanced equipment. In addition, our R&D department provides technical support to the entire production process. Besides strict supervision at every single stage of production, all the effort we are making is to ensure that our customers receive qualified products. The main goal of our organization is customer satisfaction through top-level product quality and continuous improvement of the service offered to our customers.
QUALITY CONTROL
Our aim of "your satisfaction, my pursuit" always remind us that quality is of key importance to provide customer satisfaction. Committed to providing customers with competitive prices, reliable quality, timely delivery, and good service, we wish to establish long-term business relationships with customers and friends all over the world. We manufacture and develop each product with heart and provide considerate service for you. Rakinda is always with you.

FAQ
Q: Can I get some samples? Are they free?
A: We support 1pc sample order. Samples should be paid.
Q: Can I get extra cables for the scanners?
A: Yes you can. We will provide according to your request.
Q: How can I buy?
A: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q: What is your payment method?
A: We accept online credit card, TT, Paypal, Western Union.
Q: Can I visit your factory:
A: Yes, you are warmly welcome.
Q: How long is your warranty time:
A: 1 Year.
Q: Where can we download the user manual of the scanners?
A: We will send by email after you get samples.
