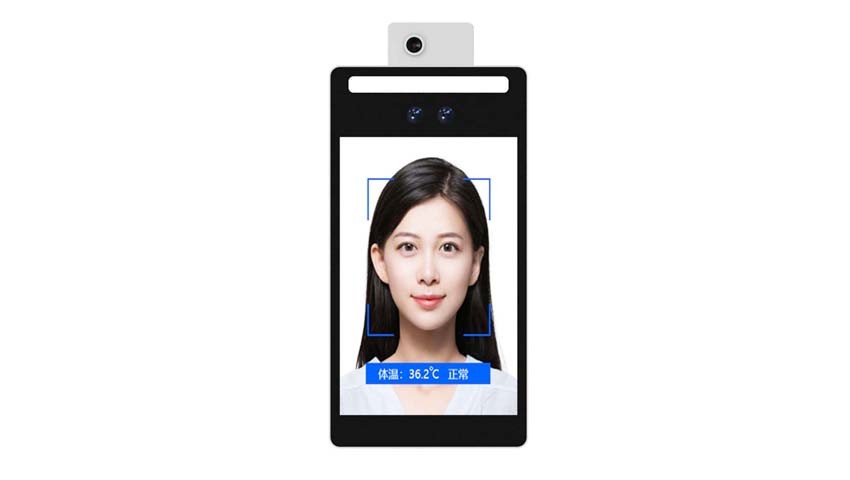

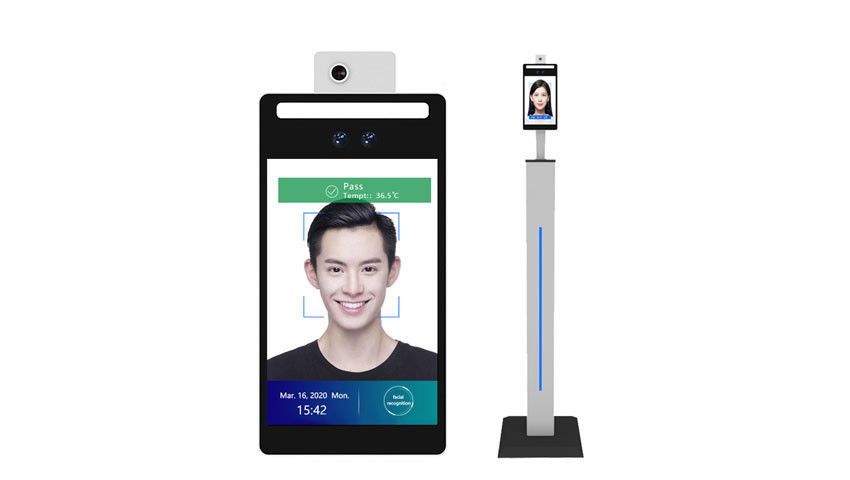

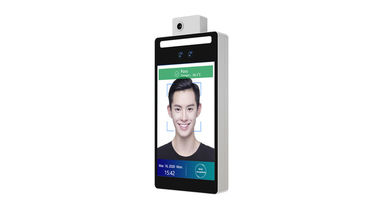

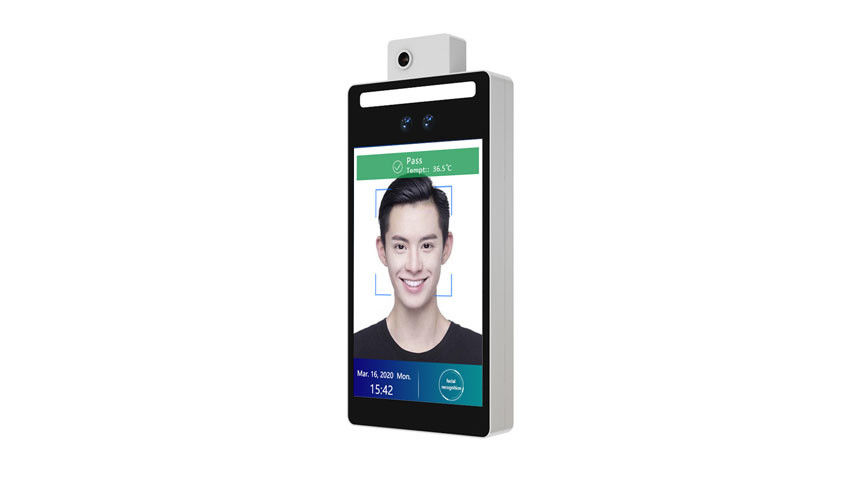

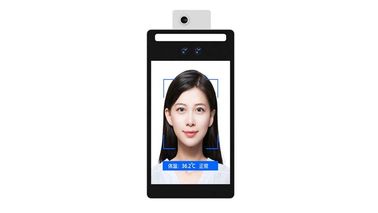

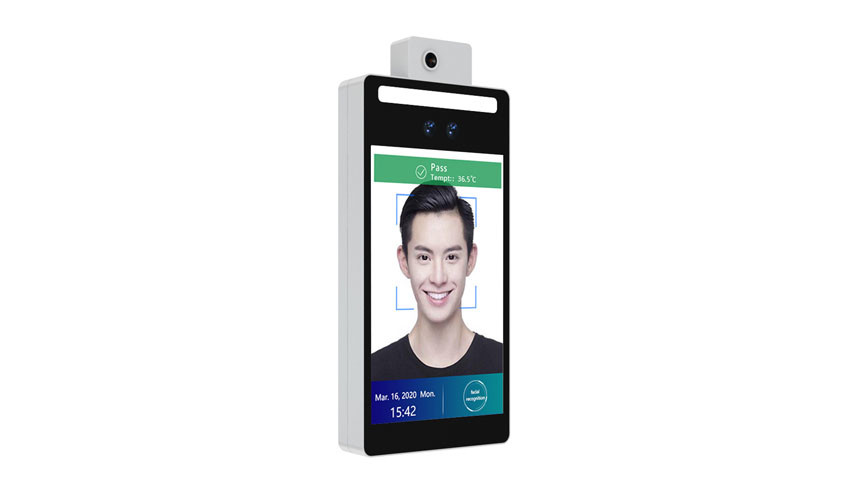

Office Real Time 2 Million Pixels Face Recognition Device

Face Recognition Temperature Measure all-in-one Machine

Product model

F2-H


Characteristics

Main function

Face recognition temperature measurement

Use environmen

Indoor , semi-outdoor

Color

Silver









Camera

Type

RGB

Infrared

Resolution

2 million pixels

2 million pixels

Aperture

F2.8

F2.8

Focal length

3.18mm

3.18mm

Software
Dynamic


automatic


automatic

Vertical wide
angle


84°


84°

Horizontal wide
angle


54°


54°

Infrared
supplement light

Support

White
supplement light

Support


Core parameters

Android

Android7.1

CPU

Quad-core, 1.8GHz

storage capacity

RAM 2G ROM 8G






Human-comput er interaction


Monitor

8 inches, full viewing angle, 170 ° IPS LCD screen, resolution
800 * 1280

Touch screen

support

Face sensing
module

support

Face temperature measurement
module


support,Serial / I2C interface

Card reader

Support, Optional

Communication
method

Ethernet

10/100 Ethernet

WIFI

Comply with IEEE802.11b / g / n standard (2.4G)


Identification Method

Face

Support

IC card

Support, optional


Input output interface

RJ45 interface

Support 10/100 Mbps

Power supply
interface


DC12V-2A

Power

Adapter

DC12V-2A



Environmental requirements

Operating
temperature

-20℃～60℃

Working
humidity


20%~90% (non-condensing)

Static protection
level


IEC61000-4-2, LEVEL3

External Interface Definition

Type

Interface

Explanation

USB

USB 2.0

Support

Ethernet port

RJ45

10/100 Ethernet



Relay


NC COM NO

Relay normal off/Common/normal on.Usually,door lock supply is positively connected to the COM port,and then according to the door lock type,relay power negatively connected NO port or NC
port. Note: Maximum load of relay contact is 2A


Gate sensor

IN
GND


Check door open/close status, input

Exit
button

PUSH1
GND


Press the button,door opening control signal,input


Serial

RX
TX


RS232


Output power

5V
GND


Support device external output 5V


Wiegand

WG_D1 WG_D0
GND


Wiegand output interface, support 26bit / 34bit protocol


Input power

GND
12V+

Power input:12V DC






Temperature measurement module

Operating temperature


0℃ ~ +55℃

Storage temperature


-20℃ ~ +65℃

Power consumption


< 0.3w





Basic Parameters


Pixel


32*32 Real-time temperature output

Measurement accuracy


I + 0.5℃

Measuring distance


0.3 ~ 1.0m


WIFI


2.4G 802.11b/g/n


Bluetooth


BluetooH4.0
