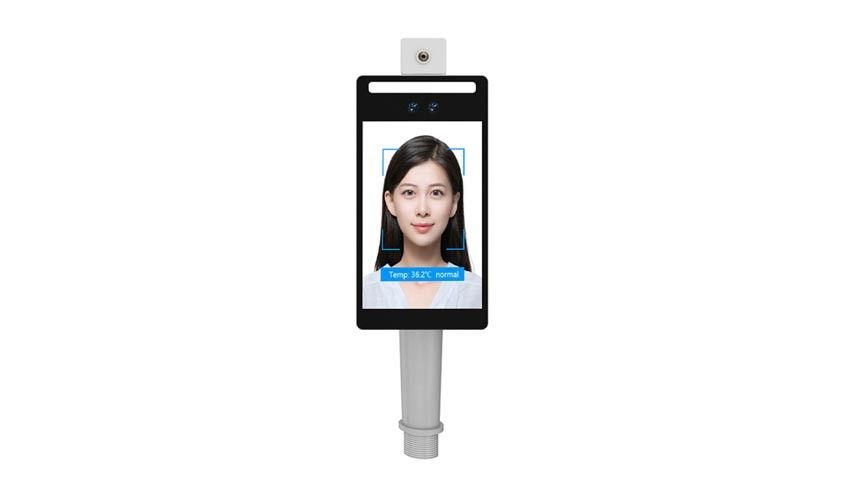

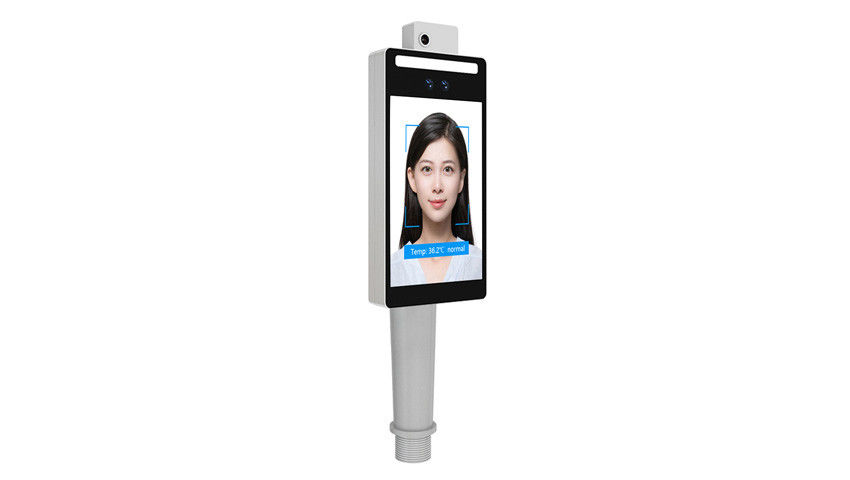

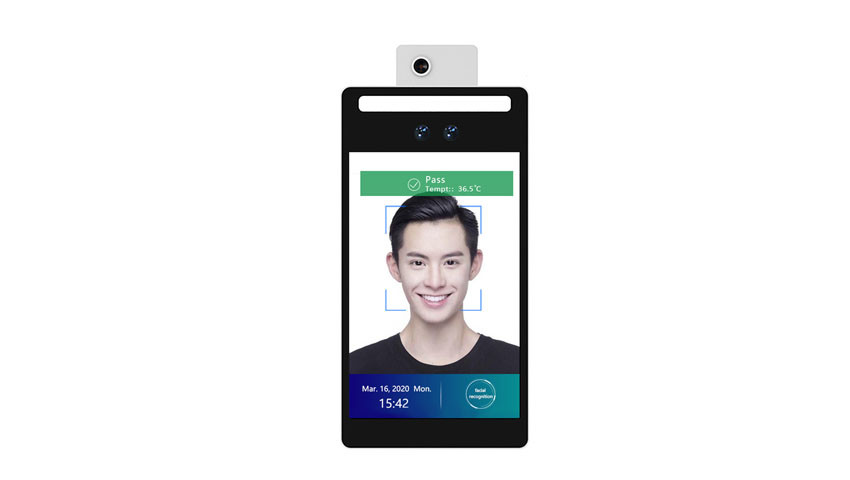

IP55 Face Recognition Attendance System Stand On Turnstile F2-TH For Temperature Checking

Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAKINDA
Certification: CE,ROHS,FCC
Model Number: F2-TH
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Normal craft paper and foam
Delivery Time: Within 7 working days after receiving the balance
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 200PCS/Week
Size: 44cm*14cm*17cm Weight: 2.5kg
LCD Screen Display Size: 8 Inch Device Electricity: DC12V(+/-10%) 3A
Operating System: Android 7.1 Above Camera: RGB Infrared
LCD Screen Resolution: 800*1280 Camera Resolution: 2 Million Pixels
Protection Level: IP55 Interface: RS485/RJ45/Wiegand
High Light:

face recognition terminals

,

face recognition device



F2-TH IP55 rated face recognition door access control system stand on turnstile for temperature checking

IP55 Face Recognition Attendance System Stand On Turnstile F2-TH For Temperature Checking 0IP55 Face Recognition Attendance System Stand On Turnstile F2-TH For Temperature Checking 1IP55 Face Recognition Attendance System Stand On Turnstile F2-TH For Temperature Checking 2IP55 Face Recognition Attendance System Stand On Turnstile F2-TH For Temperature Checking 3IP55 Face Recognition Attendance System Stand On Turnstile F2-TH For Temperature Checking 4IP55 Face Recognition Attendance System Stand On Turnstile F2-TH For Temperature Checking 5IP55 Face Recognition Attendance System Stand On Turnstile F2-TH For Temperature Checking 6IP55 Face Recognition Attendance System Stand On Turnstile F2-TH For Temperature Checking 7IP55 Face Recognition Attendance System Stand On Turnstile F2-TH For Temperature Checking 8IP55 Face Recognition Attendance System Stand On Turnstile F2-TH For Temperature Checking 9IP55 Face Recognition Attendance System Stand On Turnstile F2-TH For Temperature Checking 10IP55 Face Recognition Attendance System Stand On Turnstile F2-TH For Temperature Checking 11IP55 Face Recognition Attendance System Stand On Turnstile F2-TH For Temperature Checking 12

Product Parameters:

Face Recognition Terminal Product Parameters
Screen Size 8", full viewing angle, 170° IPS LCD
Resolution 800*1280
Camera Type RGB TOF
Resolution (horizontal × vertical) Support 1080P/960P/720P/VGA 640× 480 Pixel
Field of view (horizontal × vertical) 74° × 56° @960P (Default) 80° × 60°
63° × 37° @1080P
74° × 42° @720P
74° × 56° @VGA
Frame rate (FPS) Maximum 30FPS @960P/720P/VGA Up to 15FPS @1080P MAX 30FPS
Detection distance (unit: meter) 0.35-1.2
light source 850nm VCSEL
Working temperature (degree Celsius °C) 0℃-50℃
Core parameter CPU 6 cores, clocked at 2.0GHz
RAM 2G
ROM 16G
OS Android 7.1.2
Parts Fill light Infrared, LED fill light
Network module Support wired, wireless (2.4GWi-Fi), wireless (USB external)
Bluetooth Module 4.0
4G communication module Optional (built-in or external)
ID card reader Optional (built-in or external)
GPS Optional (built-in or external)
Port USB USB2.0 1
RD232 RS232 serial port, 2.5mm terminal block 2P
Relay output 2.5mm terminal block 3P
Wiegand interface 2.5mm terminal block 3P, support Wiegand 26
Wired network interface RJ45 Gigabit network
General parameters IP Protection IP54
Power DC12V (±10%) /3A
Operating temperature -20℃ ~70℃
Working humidity 10%~90 %
Power consumption 22W MAX
Installation method Wall bracket installation, gate bracket installation
Equipment size 44cm*14cm*17cm
Weight 2.5kg
