| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Brand Name: | RAKINDA |
| Certification: | CE,ROHS,FCC |
| Model Number: | F7 |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotiation |
| Packaging Details: | Normal craft paper and foam |
| Delivery Time: | Within 7 working days after receiving the balance |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 200PCS/Week |
| Resolution Ratio: | Two Million Pixels | System: | Android 11.0 |
|---|---|---|---|
| LCD Screen Display Size: | 6.95-inch | Iris Diaphragm: | F2.0±5% |
| Camera: | RGB Infrared | LCD Screen Resolution: | 600 * 1024 |
| Highlight: | face recognition device,biometric time attendance system |
||

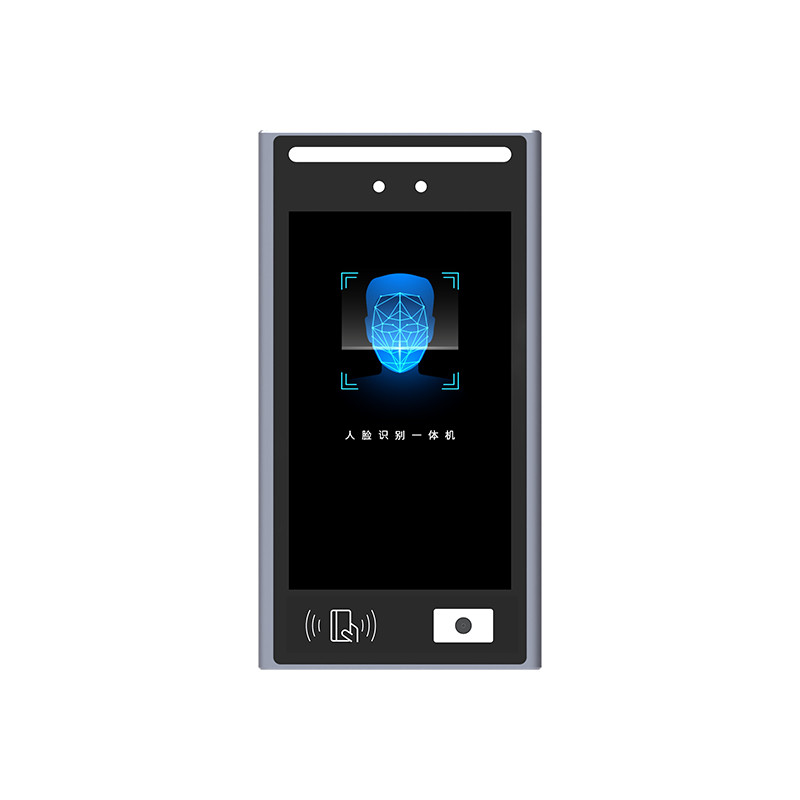

Android 11 Above Facial Recognition Using In Turnstile for Access Control
Our advanced industrial-grade visual face recognition all-in-one machine is designed to meet the demands for large capacity, high performance, wide applicability, and customization in face recognition applications. This product integrates state-of-the-art face recognition algorithms with a powerful 200W RGB+IR binocular camera, and supports WIFI and 10/100M networking along with comprehensive peripheral security interfaces, ensuring a secure and user-friendly environment.
Face Recognition Terminal Key Features:
*Advanced Recognition Technology: Supports liveness detection and dynamic face recognition, allowing for seamless identity authentication, personnel access management, and attendance tracking without requiring user cooperation.
*Wide Applicability: Ideal for office buildings, commercial areas, hotels, schools, shopping malls, residential communities, public services, transportation hubs, tourist attractions, and exhibition centers, enabling intelligent security management and control.
Technical Specifications:
*Robust Design: Constructed with an aluminum alloy and iron-colored shell, featuring a 6.95-inch full-view IPS LCD screen with a 600*1024 resolution, supporting touch screen operation.
*Core Configuration: Powered by Android 11.0 OS, quad-core 64-bit Cortex-A55 CPU, 2GB RAM, and 16GB storage.
*Versatile Communication: Supports Ethernet, WIFI, and optional 4G connectivity.
*Multiple Identification Methods: Includes card swiping, ID card swiping, and optional QR code recognition.
Installation Options:

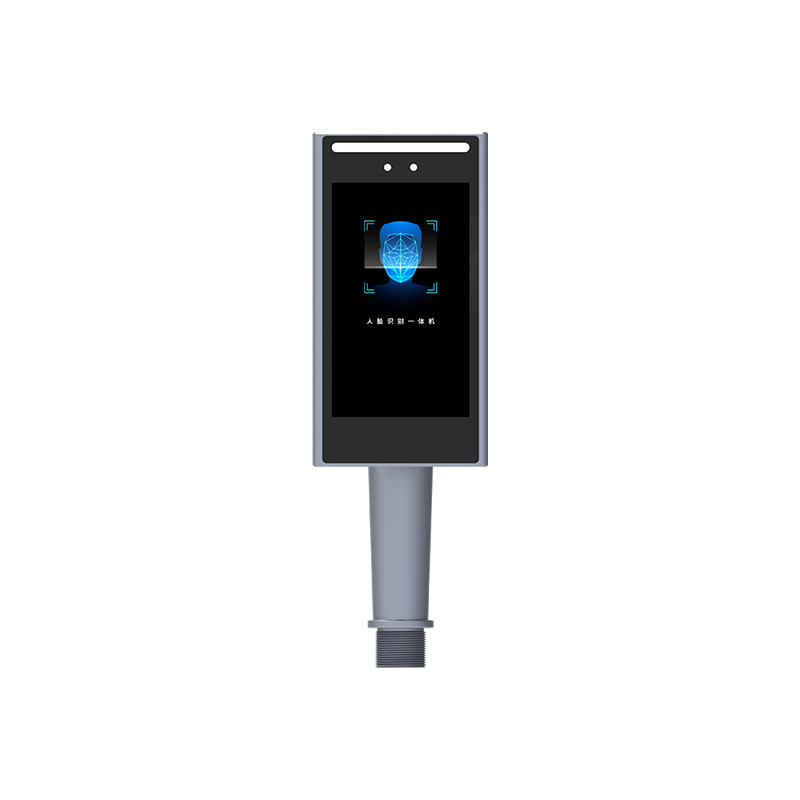

*Flexible Installations: Available in wall-mounted, gate, floor-standing, and desktop versions, suitable for both indoor and outdoor environments.
Experience the next level of security and convenience with our high-performance face recognition all-in-one machine, tailored to provide top-notch solutions for various environments and applications.
Product Parameters:
| Face Recognition Machine | |||
|
Product Features
|
Major Function | Face recognition, access control | |
| Service Environment | Indoor and outdoor | ||
| Enclosure | Aluminum alloy material, color | ||
|
Camera
|
Type | RGB | IR |
| Resolution Ratio | Two million pixels | Two million pixels | |
| Iris Diaphragm | F2.0±5% | F2.0±5% | |
| Focal Distance | 4.3mm±5% | 4.3mm±5% | |
| Software Wide Dynamic | voluntarily | not have | |
| Vertical Wide Angle | 65° | 65° | |
| Horizontal Wide Angle | 40° | 40° | |
| Infrared Light Supplement | support | ||
| White Fill Light | support | ||
|
Core Parameters
|
System | Android 11.0 | |
| CPU | Quad-core 64-bit Cortex-A55 with the highest main frequency of 2.0GHz | ||
| SC | Memory of 2G, the storage of 16G | ||
| Human-Computer Interaction | Display Screen | 6.95-inch, full view, 170 ° IPS LCD screen, 600 * 1024 resolution | |
| Touch Screen | Support | ||
| Human Sensing Module | [Optional selection] Support | ||
| Human Body Temperature Measurement Module【Optional】 | Test accuracy: 0.1℃ | ||
| test error:≤±0.5℃ | |||
| Temperature measurement distance: the recommended use distance is 50cm | |||
| Operating temperature: 15℃ ~40℃ | |||
| Communication Mode | Ethernet | 10 / 100Mbps for Ethernet | |
| WIFI | Compliance to IEEE802.11b/g/n (2.4G) | ||
| 4G | [Optional selection] Support | ||
| RM | Human Face | support | |
| Swing Card | [Optional selection] Support | ||
| Brush Id Card | [Optional selection] Support | ||
| Two-Dimension Code | [Optional selection] Support | ||
|
Joggle
|
Data Interface | USB 2.0*1 | |
| Electric Relay | Relay * 1 | ||
| Gorge Line | RS485 *1 | ||
| Weigen | 26bit / 34bit protocol | ||
| Source | Adapter | DC12V / 2A power supply | |
|
Environmental Requirements
|
Working Temperature | -20℃～60℃ | |
| Working Humidity | 20% to 90% (in the non condensing water droplet regime) | ||
| Static Electricity ESD | IEC61000-4-2,LEVEL3 | ||
| Levels Of Protection | IP65 (This item is not supported in the temperature measurement version) | ||
| Way To Install | Four Ways | Wall-mounted plate, brake plate, landing version, desktop version | |
