| Place of Origin: | China |
|---|---|
| Brand Name: | rakinda |
| Certification: | CE,ROHS,FCC |
| Model Number: | RD003 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiation |
| Packaging Details: | Normal craft paper and foam |
| Delivery Time: | Within 5 working days after receiving the balance |
| Payment Terms: | Western Union, T/T, L/C, D/A, D/P, MoneyGram |
| Supply Ability: | 200PCS/Week |
| Image Sensor:: | 752*480 | Illumination:: | White LED |
|---|---|---|---|
| Symbologies:: | 1D And QR Paper Or Phone Screen | Interface:: | USB/RS232/RS485, Wiegand26/34 |
| Application: | Turnstile Or Gym Or Elevator | ||
| Highlight: | qr code scanner door lock,qr code locking system,13.56MHZ RFID Hotel Door Locks |
||

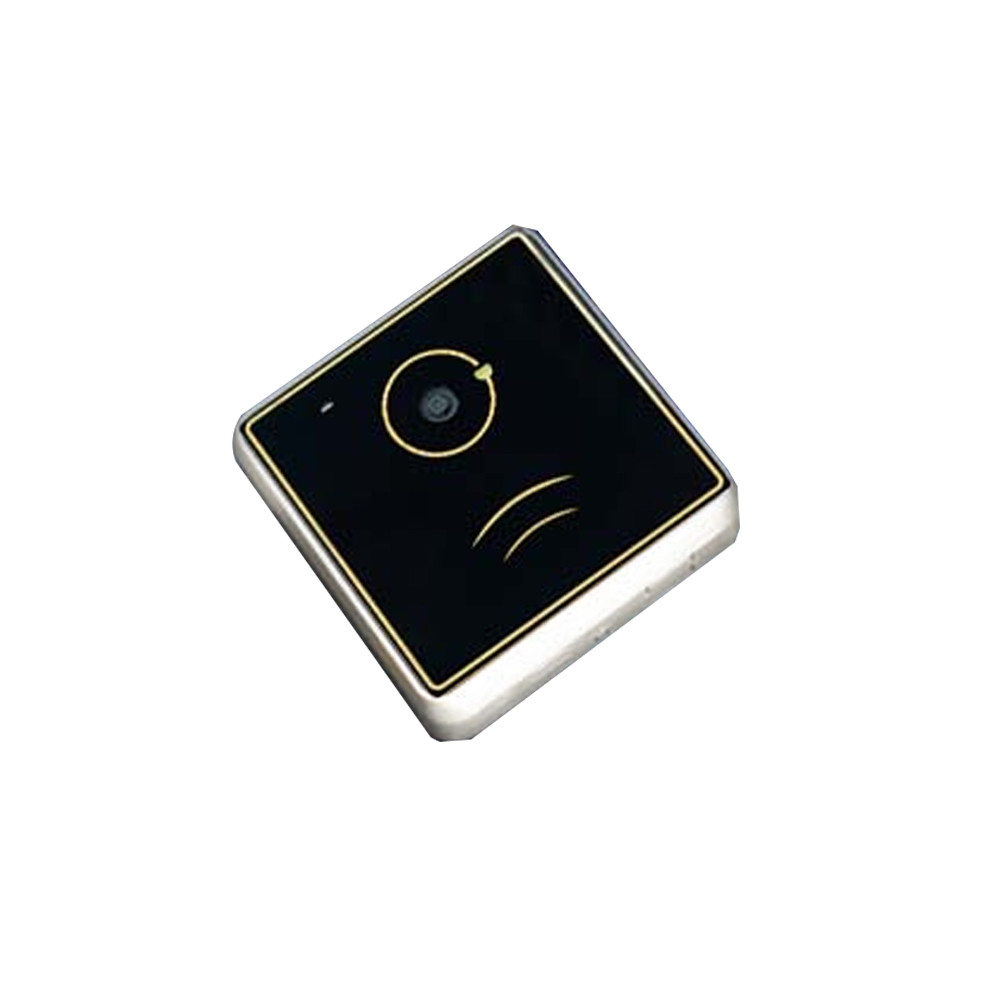

Wall Mounted QR Barcode Scanner Mi fare Card Reader RS232 Wiegand26/34 For Turnstile Or Elevator

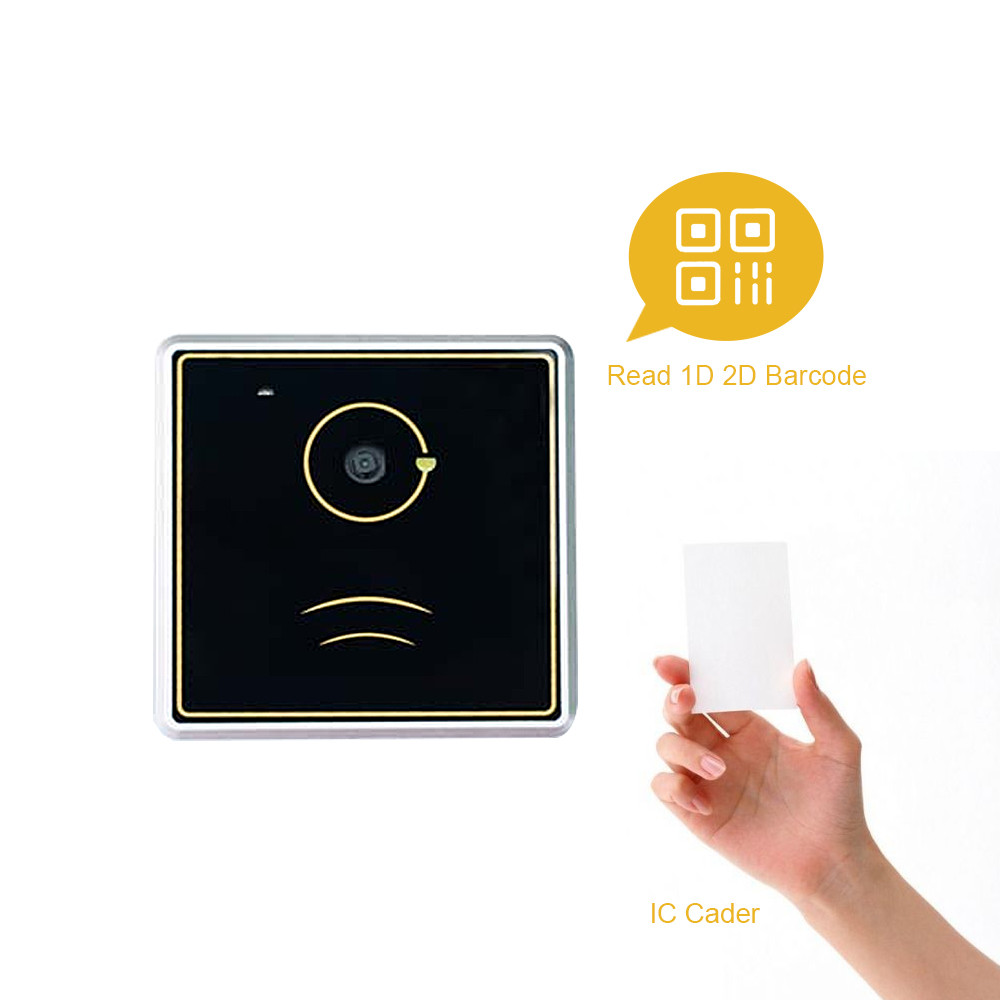

1. RD003 1D QR Barcode Reader Description
RD003 reader perfectly combines qr code scanner with IC card reader. It can read 1d or QR barcode fast, no matter paper or phone screen. And it has the white LED illumination lights, so can scan fast even in dark environment. It supports RS232 and Wiegand 26 or 34.

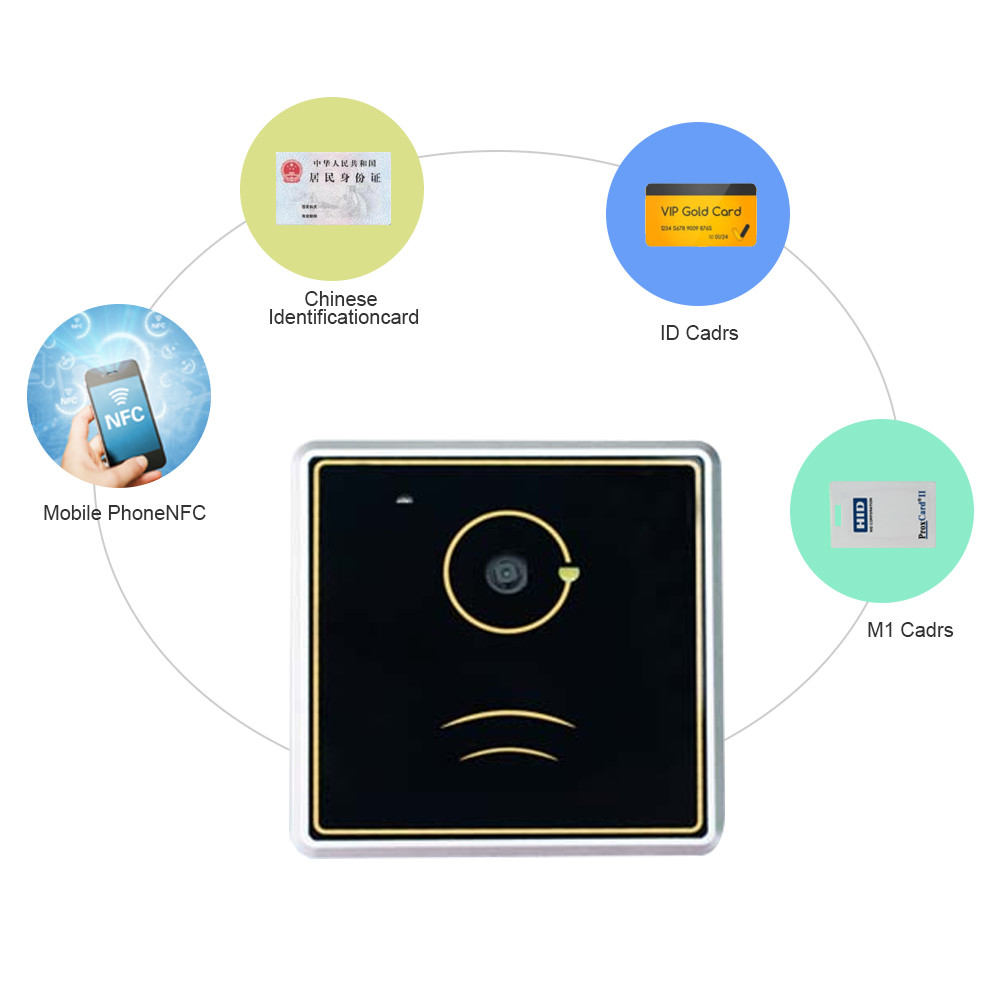

For IC card reading function, we can also customize according to customers' protocol. It can read 128khz frequency card or 13.56mhz card, the reading distance is about 10-55mm.
2. RD003 13.56mhz Card Reader Features:
QR code scanner
IC card reader
Wall mounted type
Diverse inteface: RS232, wiegand 26 or 34
3. RD003 Reader Specifications
| Performance | Image Sensor | 752*480 | |
| Illumination | White LED | ||
| Reading Distance | 10-55mm | ||
| Symbologies | 2D | PDF417, Data Matrix, QR code | |
| 1D | Code128, EAN-13, EAN-8, Code39,UPC-A, Interleaved 2 of 5 | ||
| Scanning Angle | 360°full angle | ||
| Mechanical/Electrical | Power Input | 9-18VDC | |
| Working Current | 600mA | ||
| 1 Way beeper control | Low level effective | ||
| Dimensions | 86(W)*86(D)*22(H)mm | ||

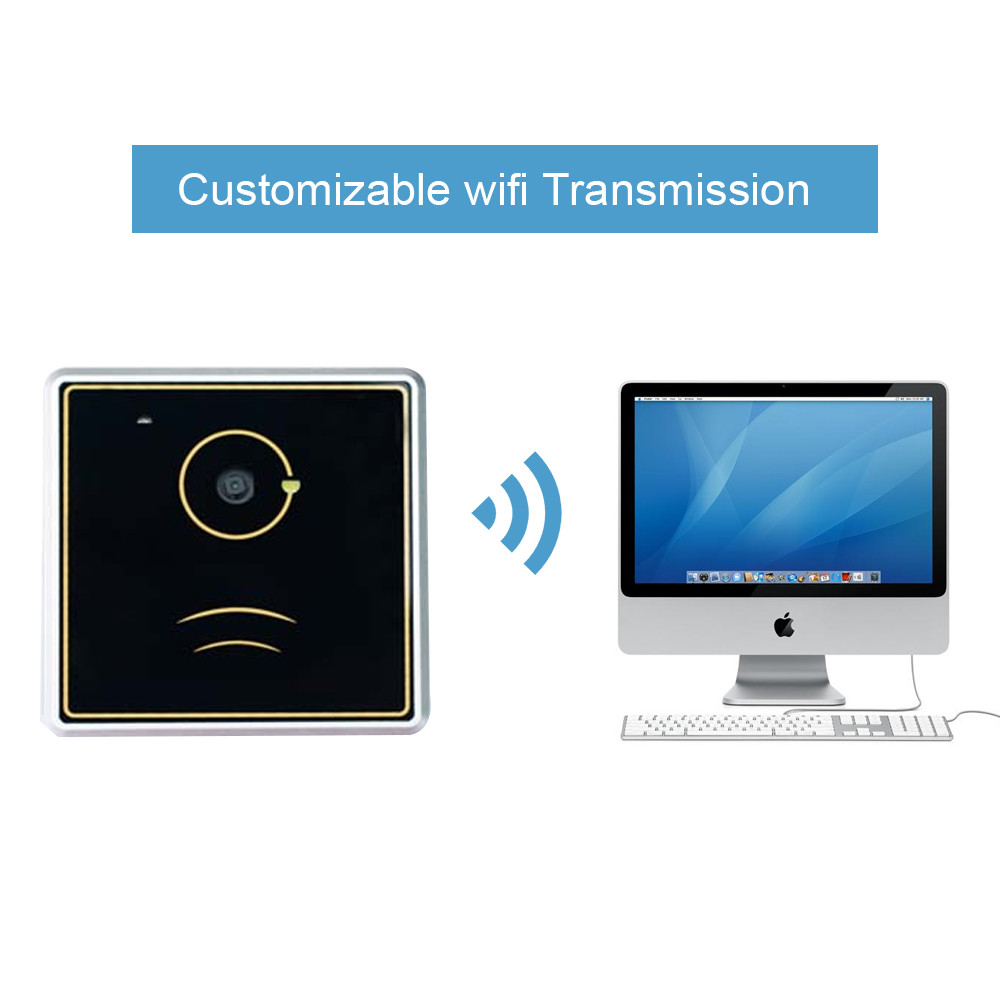

| Options | 4G, WIFI, Bluetooth |
