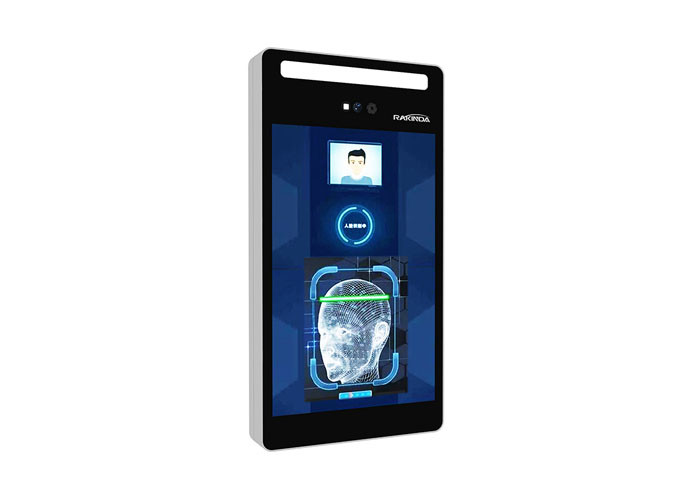

Android 7.1.2 Biometric Attendance System Face Recognition Door Access Control

Basic Information
Place of Origin: China
Brand Name: SCANMAX
Model Number: F3
Minimum Order Quantity: 1 Pieces
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
OS: Android 7.1.2 Wired Network Interface: RJ45 Gigabit Network
Fill Light: Infrared, LED Fill Light Resolution: 800*1280
Detection Distance: 0.35-1.2 Network Module: Support Wired, Wireless (2.4GWi-Fi), Wireless (USB External)
High Light:

biometric attendance system face recognition


wireless portable barcode scanner

SFace Recognition Biometric Machine Android Face Recognition Door Access Control

Face Recognition Device Features :

  • Dynamic detection to solve the deception of various photos on various carriers.
  • Support external QR code scanner and ID card reader.
  • Support RS232 serial port, Wiegand 26 output, output content support configuration.
  • Support the device to store 10,000 database locally.
  • Nighttime infrared, RGB fill light.
  • Support HTTP interface interface docking.
  • Support public network and LAN deployment mode.
  • Support screen display content configuration.
  • Adopt dynamic video face detection and tracking recognition algorithm based on video stream.
  • Fast Recognition:
  • Face tracking and detection takes about 20ms.
  • Face feature extraction takes about 200ms.
  • In vivo detection of face comparison time 0.6ms (1000 people library, multiple recognition average), 0.8ms (10000 people library, multiple recognition average).

Android Face Recognition Device Parameters:


Screen Size 8", full viewing angle, 170° IPS LCD
Resolution 800*1280
Camera Type RGB TOF
Resolution (horizontal × vertical) Support 1080P/960P/720P/VGA 640× 480 Pixel
Field of view (horizontal × vertical) 74° × 56° @960P (Default) 80° × 60°
63° × 37° @1080P
74° × 42° @720P
74° × 56° @VGA
Frame rate (FPS) Maximum 30FPS @960P/720P/VGA Up to 15FPS @1080P MAX 30FPS
Detection distance (unit: meter) 0.35-1.2
light source 850nm VCSEL
Working temperature (degree Celsius °C) 0℃-50℃
Core parameter CPU 6 cores, clocked at 2.0GHz
OS Android 7.1.2
Parts Fill light Infrared, LED fill light
Network module Support wired, wireless (2.4GWi-Fi), wireless (USB external)
Bluetooth Module 4.0
4G communication module Optional (built-in or external)
ID card reader Optional (built-in or external)
GPS Optional (built-in or external)
Port USB USB2.0 1
RD232 RS232 serial port, 2.5mm terminal block 2P
Relay output 2.5mm terminal block 3P
Wiegand interface 2.5mm terminal block 3P, support Wiegand 26
Wired network interface RJ45 Gigabit network
General parameters IP Protection IP54
Power DC12V (±10%) /3A
Operating temperature -20℃ ~70℃
Working humidity 10%~90 %
Power consumption 22W MAX
Installation method Wall bracket installation, gate bracket installation
Equipment size 239.2mm*123.2mm*26.4mm
Weight ≈1050g



Android 7.1.2 Biometric Attendance System Face Recognition Door Access Control 0


Fixing method and size:


Android 7.1.2 Biometric Attendance System Face Recognition Door Access Control 1
