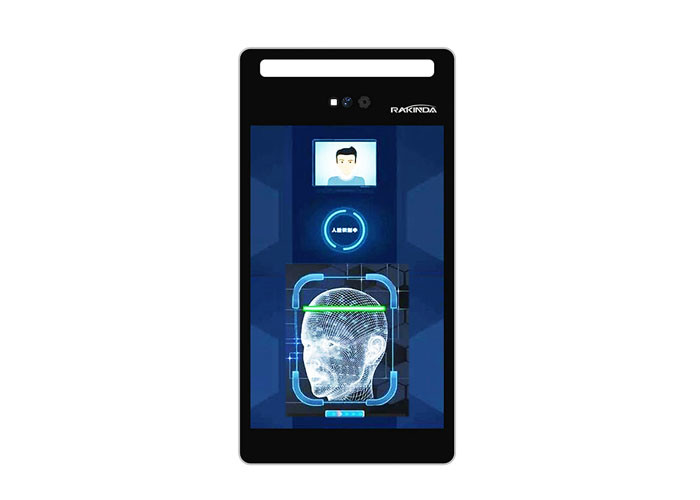

Full Intelligence LED Fill Light Face Recognition Access Control Terminal Bluetooth 4.0

Full Intelligence LED Fill Light Face Recognition Access Control Terminal Bluetooth 4.0

    • Full Intelligence LED Fill Light Face Recognition Access Control Terminal Bluetooth 4.0
    • Full Intelligence LED Fill Light Face Recognition Access Control Terminal Bluetooth 4.0
    • Full Intelligence LED Fill Light Face Recognition Access Control Terminal Bluetooth 4.0
    • Full Intelligence LED Fill Light Face Recognition Access Control Terminal Bluetooth 4.0
  • Full Intelligence LED Fill Light Face Recognition Access Control Terminal Bluetooth 4.0

    Product Details:

    Place of Origin: China
    Brand Name: SCANMAX
    Model Number: F3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Pieces
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
    Contact Now
    Detailed Product Description
    OS: Android 7.1.2 ROM: 16G
    RAM: 2G Power Consumption: 22W MAX
    Bluetooth Module: 4.0 IP Protection: IP54
    High Light:

    handheld uhf rfid reader

    ,

    biometric attendance system face recognition

    Full Intelligence LED Fill Light Face Recognition Access Control Terminal



    Fast recognition:


    1. Face tracking and detection takes about 20ms.


    2. Face feature extraction takes about 200ms.


    3. In vivo detection of face comparison time 0.6ms (1000 people library, multiple recognition average), 0.8ms (10000 people library, multiple recognition average).





    Face Recognition Device Parameters:



    Screen Size 8", full viewing angle, 170° IPS LCD
    Resolution 800*1280
    Camera Type RGB TOF
    Resolution (horizontal × vertical) Support 1080P/960P/720P/VGA 640× 480 Pixel
    Field of view (horizontal × vertical) 74° × 56° @960P (Default) 80° × 60°
    63° × 37° @1080P
    74° × 42° @720P
    74° × 56° @VGA
    Frame rate (FPS) Maximum 30FPS @960P/720P/VGA Up to 15FPS @1080P MAX 30FPS
    Detection distance (unit: meter) 0.35-1.2
    light source 850nm VCSEL
    Working temperature (degree Celsius °C) 0℃-50℃
    Core parameter CPU 6 cores, clocked at 2.0GHz
    RAM 2G
    ROM 16G
    OS Android 7.1.2
    Parts Fill light Infrared, LED fill light
    Network module Support wired, wireless (2.4GWi-Fi), wireless (USB external)
    Bluetooth Module 4.0
    4G communication module Optional (built-in or external)
    ID card reader Optional (built-in or external)
    GPS Optional (built-in or external)
    Port USB USB2.0 1
    RD232 RS232 serial port, 2.5mm terminal block 2P
    Relay output 2.5mm terminal block 3P
    Wiegand interface 2.5mm terminal block 3P, support Wiegand 26
    Wired network interface RJ45 Gigabit network
    General parameters IP Protection IP54
    Power DC12V (±10%) /3A
    Operating temperature -20℃ ~70℃
    Working humidity 10%~90 %
    Power consumption 22W MAX
    Installation method Wall bracket installation, gate bracket installation
    Equipment size 239.2mm*123.2mm*26.4mm
    Weight ≈1050g





    Face Recognition Device Features :



    1. Dynamic detection to solve the deception of various photos on various carriers.



    2. Support external QR code scanner and ID card reader.



    3. Support RS232 serial port, Wiegand 26 output, output content support configuration.



    4. Support the device to store 10,000 database locally.



    5. Nighttime infrared, RGB fill light.



    6. Support HTTP interface interface docking.



    7. Support public network and LAN deployment mode.



    8. Support screen display content configuration.



    9. Adopt dynamic video face detection and tracking recognition algorithm based on video stream.


    Full Intelligence LED Fill Light Face Recognition Access Control Terminal Bluetooth 4.0 0
