3G 4G Android 8.1 Bluetooth 1D 2D Handheld PDA Scanner

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE ROHS FCC
Model Number: S7 Plus
Minimum Order Quantity: 1 pieces
Packaging Details: carton package, under 0.5kg/ piece
Delivery Time: 5-10 working days
Payment Terms: Western Union, T/T, paypal
Supply Ability: 10000 piece per weeek
Items: Android Handheld PDA Scanner OS: Android 8.1(64 Bits)
Storage: ROM 16G/RAM 2G Interface: Type-c 2.0 OTG
Screen: 5.7" Size (L×W×H): 157*76.3*12.6mm
High Light:

hotel electronic door locks


hotel room security door locks

3G 4G Android 8.1 Bluetooth 1D 2D Handheld PDA Scanner

Product Features:

1. 5.7" Full Screen
5.7" HD display, multi-touch capacitive screen, 2.5D Corning three-generation glass cover.


2. Oversized battery capacity Flash charging full speed
4800mAh's large battery capacity, low power consumption design, longer battery life to meet all-day work needs; professional Type-C interface, support fast charge.


3. Ultimate protection rating Durable
With IP67 protection, it can withstand multiple drops of 1.2 meters on six sides.


4. Extremely slim experience
Ergonomic design, comfortable grip, 12.6mm thin body, one-handed operation of large-screen devices, bringing a relaxed user experience.


5. Powerful data acquisition function
Equipped with a professional custom scan engine to support one-dimensional, two-dimensional bar code scanning. Support fingerprint recognition, support Beidou / GPS / GLONASS, NFC.


6. High-end configuration
Adopt Android8.1 operating system, quad-core 1.5GHz frequency, support dual VoLte; 4G full Netcom, dual card dual standby.


CPU High-speed quad-core 64-bit processor, 1.5GHz
OS Android 8.1(64 Bits)
Storage ROM 16GB(Standard), 32GB(Options)
RAM 2GB(Standard), 3GB(Options)
Interface Type-c 2.0 OTG
Physical Spec
Size (L×W×H) 157*76.3*12.6mm
Weight 231g (Includes Battery)
Screen 5.7"(Resolution 1440×720)18:9 Multi-touch capacitive screen
Keyboard 5 keys (including left and right side buttons) keyboard
Indicator Vibrator, speaker and tri-color LED
Battery Built-in main battery 4.35V, 4800mAh
Camera Rear camera 13 megapixels, auto focus, flash support; front camera 2 megapixels, fixed focus
GPS GPS, Beidou
Expansion Memory Card (Max 32GB)
Power Adaptor Output: DC 5V/9V, 1.67A Input: AC 100~240V, 50~60Hz Real-time fast charge adapter
Working Temperature -20℃~50℃
Storage Temperature -30℃~60℃
Relative humidity 5%~95%(No condensation)
Static Protection ±15 kV(Air discharge), ±8 kV(Direct discharge)
Drop height 2 times 6 concrete floors falling below 1.2 meters (one on each side)
Protection level IP67
Reading Mode
2D Barcode CMOS(≥5 mil) Code128, UCC/EAN-128, AIM 128, EAN-8, JAN-8, EAN-13, ISBN/ISSN, UPC-E,UPC-A, Interleave 2/5, ITF-6, ITF-14, Deutsche 14,Deutsche 12,COOP 25,Matrix 2/5, Industrial 2/5, Standard 25, Code 39, Codabar/NW7, Code 93, Code 11, Plessey, MSI/Plessey, GS1 Databar One-dimensional barcode and two-dimensional codes such as PDF-417, QR Code, Data Matrix, and Hanxin code.
Wireless Communication
WLAN RADIO IEEE 802.11 a/b/g/n, 2.4GHz and 5GHz
WWAN RADIO 2G GSM ( Band2/ Band3/ Band5/ Band8)
3G Unicom WCDMA(Band1 /Band8) telecommunications CDMA: BC0 CMCC TD-SCDMA(Band34/ Band39)
4G(Unicom/Telecom/CMCC LTE- TDD(Band38/Band39/ Band40/ Band41), LTE- FDD (Band1/Band3/Band5)
WPAN RADIO Bluetooth 4.2
Card slot SIM Dual SIM Dual Standby (Double Nano SIM) 3 Select 2 SIM/T deck, Nano+Nano/Nano+Tf
Fingerprint recognition Support (standard)
Sensor Support distance, light, geomagnetism, acceleration sensor
Radio frequency modulation Headphones (optional)
Optional accessories Power adapter, data cable

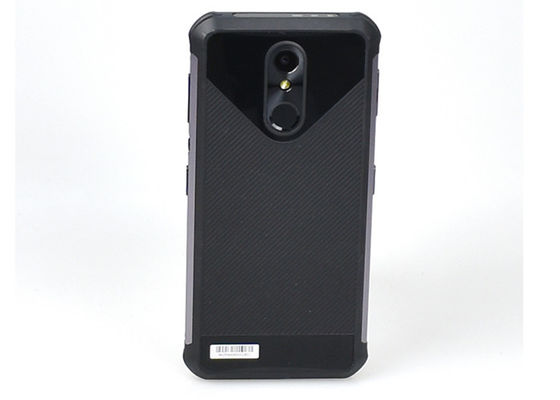

3G 4G Android 8.1 Bluetooth 1D 2D Handheld PDA Scanner 0
