| Place of Origin: | China |
|---|---|
| Brand Name: | RAKINDA |
| Certification: | FCC.CE.Rosh |
| Model Number: | LV3000R |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotiation |
| Payment Terms: | Western Union, T/T, paypal |
| Supply Ability: | 10000 pcs per month |
| Name: | 2D Barcode Scanner Module | Image: | CMOS |
|---|---|---|---|
| Resolution: | 752*480 | Sysbologies: | 1d2d |
| Precision: | 5 Mil | Dimensions: | 60*50*26 |
| Weight: | 70g | ||
| High Light: | arduino barcode reader,digital barcode scanner |
||

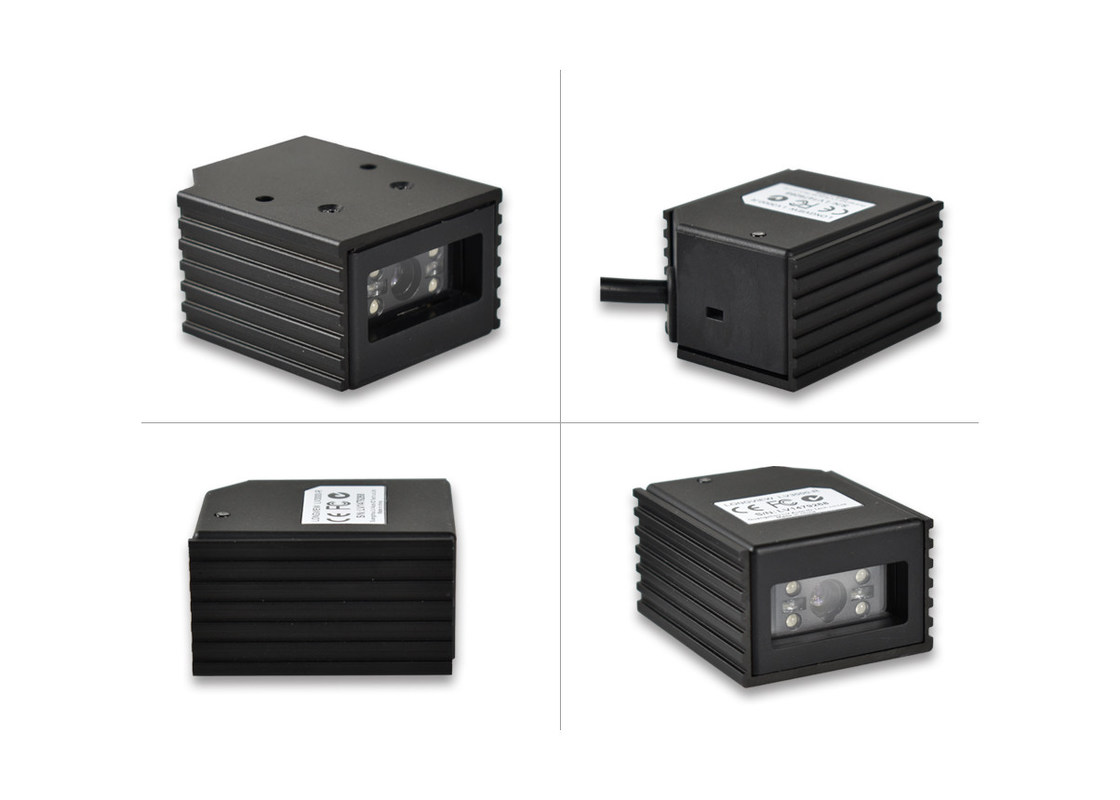

High Performance Interface RS232 Barcode Scanner 360° Roll Scan Angle
Designed for OEM applications, this high-performance fixed mount barcode scanner can easily be integrated into various devices such as kiosks, ticketing machines, (reverse) vending machines, mobile ticket validators and many more.
● Ease of integration
This compact, lightweight barcode scanner comes in sturdy IP54-rated housing and allows ease of integration into a variety of devices.
● Sophisticated Technology
Its core technology UIMG , solely developed , comprises optical system, CMOS system, digitizer, decoder, image processor, embedded system, etc. The device demonstrates an unprecedented decoding capability on 1D symbologies. Users can create their own apps with our development tools to identify particular images and symbols.
SPECIFICATION
| LV3000R | ||
| Performance | ||
| Image Sensor | CMOS | |
| Resolution | 752 * 480 | |
| Interface | USB1.1 | |
| Symbologies | 2D | PDF 417, QR Code (Model 1/2), Data Matrix (ECC200, ECC000, 050, 080, 100,140), Aztec, Maxicode, LP Code, Chinese Sensible Code, etc. |
| 1D | Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, etc. | |
| Pitch | 45° | |
| Scan Angle** | Roll | 360° |
| Skew | 45° | |
| Reading Precision | ≥ 3mil | |
| Light Source | LED (617.5 nm – 633.5 nm) | |
| Light Intensity | 320 LUX (130 mm ) | |
| Depth of Field | 35 mm ~ 210 mm | |
| Print Contrast Signal | ≥ 25% | |
| Mechanical/Electrical | ||
| Power Consumption | 1.75W | |
| Operating Voltage | DC 5 V | |
| Current | Maximum Current | 420 mA |
| Operating Current | 260 mA | |
| Idle Current | 1 mA | |
| Dimensions (L x W x H) | 49.0 *37.0 * 25.0 mm | |
| Weight | 70g | |
| Environmental | ||
| Operating Temperature | -5°C - +45°C | |
| Storage Temperature | -40°C - +60°C | |
| Humidity | 5% - 95% (non-condensing) | |
| Ambient Light | 0 ~ 100,000 LUX | |
| Certifications | ||
| FCC Part15 Class B, CE EMC Class B | ||
| Accessories | ||
| Cable | RS232 | Used to connect the LV3000R to a host device; equipped with a power connector. |
FAQ
Q: Can I get some samples? Are they free?
A: We support 1pc sample order. Samples should be paid.
Q: Can I get extra cables for the scanners?
A: Yes you can. We will provide according to your request.
Q: How can I buy?
A: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q: What is your payment method?
A: We accept online credit card, TT, Paypal, Western Union.
Q: Can I visit your factory:
A: Yes, you are warmly welcome.
Q: How long is your warranty time:
A: 1 Year.
Q: Where can we download the user manual of the scanners?
A: We will send by email after you get samples.
Q: What's the lead time?
A: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q: Can you provide OEM service?
A: Yes. We need further discuss about details.
Q: How do you ship the scanners usually?
A: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
