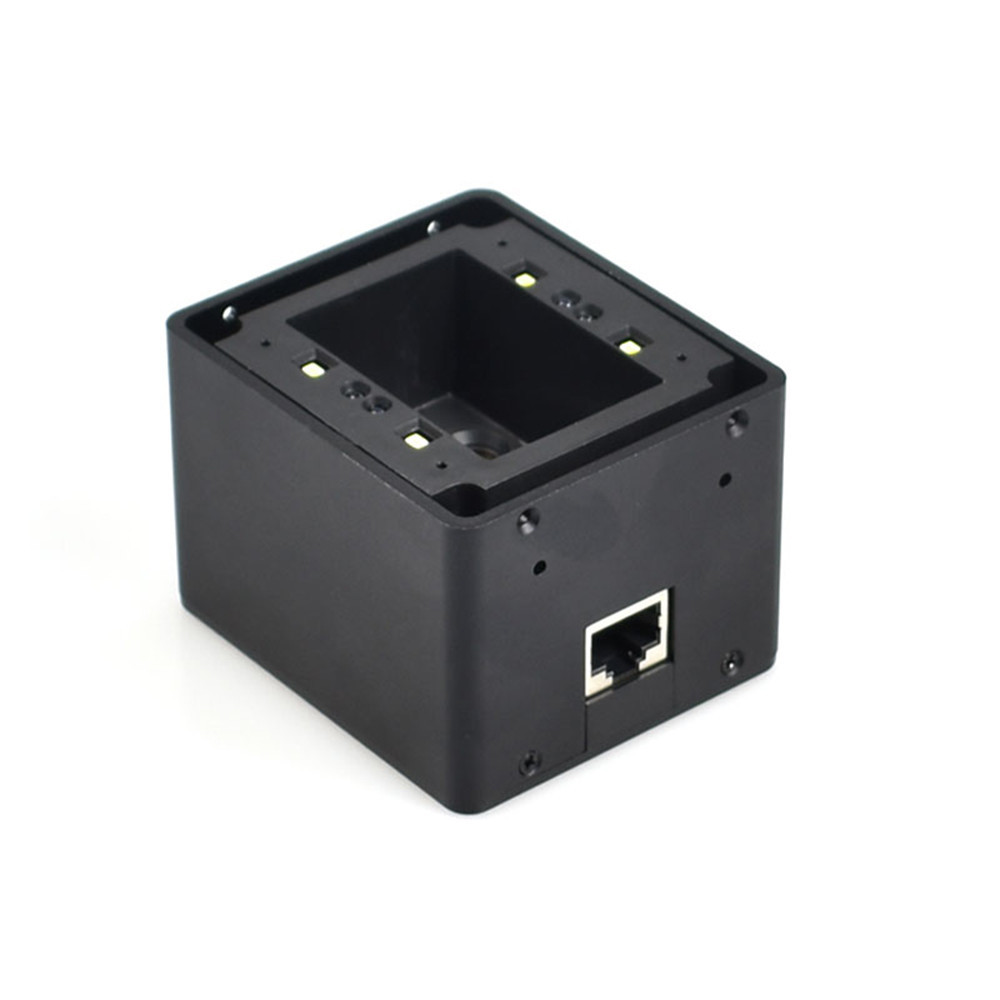

Fixed Mount RD4500L Digital Barcode Scanner Plug Play Fast Reading

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE FCC ROHS
Model Number: RD4500L
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: Normal craft paper and foam
Delivery Time: Within 5 working days after receiving the balance
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 2000PCS/Week
Interface: RS232/USB Image Sensor: 752×480 CMOS
Scan Mode: Sense Reading Mode Resolution: 10mil
Light Source: White LED Installation: Fixed Mount
High Light:

RD4500L Digital Barcode Scanner

,

Fixed Mount Digital Barcode Scanner

,

RD4500L QR Code Reader Scanner

Fixed Mount RD4500L Digital Barcode Scanner Plug Play Fast Reading



Industrial fixed mount long range digital barcode scanner plug and play fast reading QR code



Products Features:
1. Snappy On-screen Barcode Capture

Armed with rakinda latest technology, the scanner excels at reading on-screen barcodes even when the screen is covered with protective film or set to its lowest brightness level.

2. Durable Metal Housing
The scanner uses a durable metal housing, making it ideal for self-service applications.

3. Outstanding Power Efficiency
The advanced NLDC technology incorporated in the scanner helps reduce the power consumption and prolong the service life of the device.

4. IR Trigger
The IR sensor in the scanner exhibits an improved sensibility in activating the scanner to scan barcodes as they are presented. markedly increasing throughput and productivity.

5. High-capacity Barcode Reading Capability
Equipped with a sizable scan window, the scanner has the ability to scan barcodes containing large amounts of data.



Model RD4500L
Interface RS232/USB
Processor IOTC 0370 CHIP
Image Sensor 752×480 CMOS
Scan Mode Sense mode
Resolution 10mil
Light Source White LED
PCD ≥30%
Power Consumption 1.75W(max)
Notification Beep
Dimensions 82 mm(L) X 72mm (W) X 52mm(H)
Weight 300g
Operating Temperature -10°C- +50°C
Storage Temperature -20°C- +60°C





The QR code scanners adopt the self-developed intelligent core decoding technology, and the scanning characteristics can be described as fast, accurate, beautiful, and exquisite appearance design. It can scan the code very quickly. Moreover, they especially optimize the distance, angle and fill light effect of the mobile phone screen code, and can easily read the screen code with different contrast, color and reflection degree.



Application Scenarios:
Self-service cabinets kiosk used in e-commerce, express delivery services and smart homes; ATMs; kiosks; queue machines; lottery machines; certificate makers

Support long distance scan,parking station to get permission and make payment.





Application Of Barcode Scanner Module

Potential applications include medical diagnostic and analytical equipment; rail, airport, resort, event, car park and border control access control kiosks; lottery terminals/ticket checkers; e-voting machines; retail point-of-sale self-checkout equipment; smart lockers; banking ATMs; and in-vehicle ticket validators used in buses, subways and trains



  1. Self-service kiosks and ticket vending machines
    2) Access control gates & turnstiles for stadia, building access & transportation
    3) Retail voucher redemption and loyalty cards
    4) Car park ticket machines and automatic barriers
    5) Casino and TITO gaming machine



Fixed Mount RD4500L Digital Barcode Scanner Plug Play Fast Reading 0Fixed Mount RD4500L Digital Barcode Scanner Plug Play Fast Reading 1Fixed Mount RD4500L Digital Barcode Scanner Plug Play Fast Reading 2Fixed Mount RD4500L Digital Barcode Scanner Plug Play Fast Reading 3Fixed Mount RD4500L Digital Barcode Scanner Plug Play Fast Reading 4
