Shenzhen Rakinda Technologies Co.,Ltd .
The leader of the barcode scanner module in the world.
|Place of Origin:||Shenzhen, Guangdong, China|
|Minimum Order Quantity:||1 pcs|
|Packaging Details:||barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.|
|Delivery Time:||within 5 working days after receiving the balance|
|Payment Terms:||Western Union, T/T, paypal|
|Supply Ability:||1000 PCS/ week|
|Product Category:||Barcode Scanner Auto 2D Module||Wireless:||None|
|Stock:||Yes||Light Source:||White Light|
|Image Sensor:||752×480 CMOS||Humidity:||5% - 95% （ Non-condensing ）|
|Color:||Black||Certification:||FCC Part15 Class B, CE EMC Class B|
2d barcode engine,

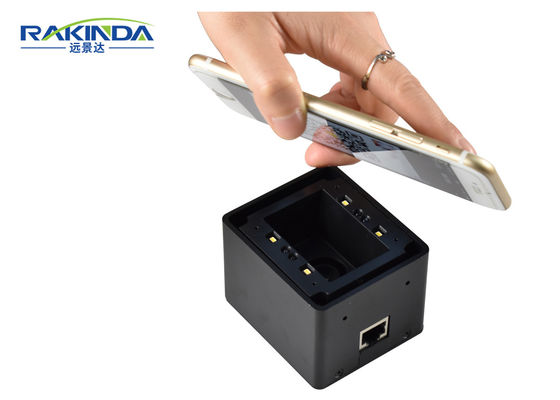

Black QR Code Scanner Module Sense Mode Durable Metal Housing 5% - 95% Humidity
Snappy On-screen Barcode Capture
Armed with Newland’s fifth-generation of UIMG technology, the scanner excels at reading on-screen barcodes even when the screen is covered with protective film or set to its lowest brightness level..
Durable Metal Housing
The scanner uses a durable metal housing, making it ideal for self-service applications.
Outstanding Power Efficiency
The advanced NLDC technology incorporated in the scanner helps reduce the power consumption and prolong the service life of the device.
The IR sensor in the scanner exhibits an improved sensibility in activating the scanner to scan barcodes as they are presented. markedly increasing throughput and productivity.
High-capacity Barcode Reading Capability
Equipped with a sizable scan window, the scanner has the ability to scan barcodes containing large amounts of data.
Self-service cabinets used in e-commerce, express delivery services and smart homes; ATMs; kiosks; queue machines; lottery machines; certificate makers.
RD4500I 2d scanner-Specification.pdf
Tag barcodes are the newest edition of 2D barcodes. They are more flexible than older formats by providing better design and content capability. Tag barcodes are linked to data sources and are suitable for use with mobile sites. Content can be updated at any time without requiring any tag alteration. These tags can be used on business cards, resumes, and custom company images; they can be printed in black and white or color. The Quick Response Code (QR) was the first 2D barcode. It’s best suited for simple designs that don’t require integration with your branding.
Access Control Solutions Share: Protecting company assets and employees is a concern every business has regardless of their size. Security is a greater concern than ever and advances in access control technology have moved well beyond the traditional lock and key method. Electronic access control provides improved security and better management of your facility access by utilizing secure IDs that can be tracked at every doorway. Control who as access to your building and never have to change a lock again.
Technical Specifications of RD4500I Auto 2D Barcode Reader Module
|Processor||IOTC 0370 CHIP|
|Image Sensor||752×480 CMOS|
|Symbologies||2D||PDF417, Data Matrix, QR Code|
|1D||EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey|
|Scan Mode||Sense mode|
|Light Source||White LED|
|FOV||Diagonal: 85°, Horizontal: 63.7°, Vertical: 70°|
|Power Consumption||1.75W (max.)|
|Dimensions (L x W x H)||71×61×50mm|
|Operating Temperature||-10°C - +50°C|
|Storage Temperature||-20°C - +60°C|
|Humidity||5% - 95% (non-condensing)|
|Ambient Light||0 ~ 100,000 LUX|
|FCC Part15 Class B, CE EMC Class B|
Barcode Scanner FAQ
Q: How long is your warranty time:
A: 1 Year.
Q: Where can we download the user manual of the scanners?
A: We will send by email after you get samples.
Q: What's the lead time?
A: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q: Can you provide OEM service?
A: Yes. We need further discuss about details.
Q: How do you ship the scanners usually?
A: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
