Kiosk Wiegand QR Code Barcode Scanner Module USB RS232 Interface

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE FCC ROHS
Model Number: RD4500R
Minimum Order Quantity: 1 pieces
Price: USD+90$-135$+1pcs
Packaging Details: 30pcs as 1 carton if RS232 port
Delivery Time: 5-8 working days
Payment Terms: T/T, paypal, , Credit card
Supply Ability: 200pieces per week
Image Sensor: 752x480 CMOS Light Source: White LED
Interface: USB Or RS232 Symbologies: 1D&2D Barcodes(PDF417, Data Matrix, QR Code )
Weight: 300 G Applications: Kiosk, Turnstile
High Light:

Wiegand QR Code Barcode Scanner

,

RS232 QR Code Barcode Scanner

,

RS232 QR Code Reader Scanner

Kiosk Wiegand QR Code Barcode Scanner Module USB RS232 Interface

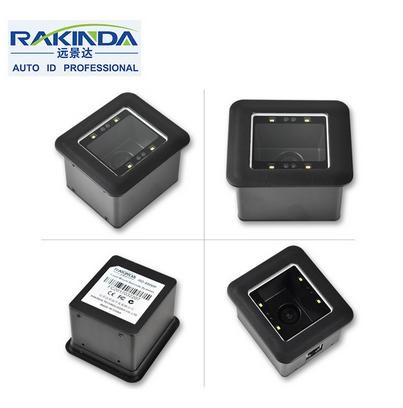

RD4500R barcode scanner description:



RD4500R 1d 2d QR fixed mount barcode scanner is designed primarily for such applications as electronic tickets/coupons,

mobile marketing, mobile payment, kiosk, turnstile, and office automation, the series fixed mount barcode scanner

is able to read barcodes on paper and mobile phones. RD4500R can support USB port, play and plug easily, and

support RS232 port with 5V power adapter. We have many successful cases already in the whole world. And we sell RD4500 series barcode scanner at leat 10Kpcs each year. In China, Beijing Metro used our scanner also for phone screen payment and fast pass.



RD4500R Phone screen reader main features:

1: Windows design almost same with phone size, so easy to scan phone screen barcode,

2: Support multiple interface: USB or RS232, even can use USB or RS232  to  Wiegand converter to output wiegand, many application in turnstlie.

3: Quality is very good: Almost no need to return for repair, and can use long time.

4: Support sense mode, trigger mode and continuous mode: some engineer can command control the scanner working or stopping.







RD4500R QR Datamatrix Scanner Parameters:

Interface RS232/ USB
Image Sensor 752 x 480CMOS
Symbologies

2D: PDF417, Data Matrix, QR Code

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN,
Codabar, Code 128, Code 93, ITF-6, ITF-14,
Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
Matrix 2 of 5, GS1 Databar (RSS-Expand,
RSS-Limited, RSS-14), Code 39, Code 11,
MSI-Plessey, Plessey

Precision 10 mil
Light Source White LED
Scan Window 38.3mm*60.4mm
Depth of Field* 40mm-430mm
Print Contrast Signal ≥ 30%
Illumination 0 ~ 100,000 LUX
Power Consumption 1.75W (max)
Power Adaptor Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz
Weight 300g
Dimensions 82 mm(L) X 72mm (W) X 52mm(H)
Notification Beep

Kiosk Wiegand QR Code Barcode Scanner Module USB RS232 Interface 0Kiosk Wiegand QR Code Barcode Scanner Module USB RS232 Interface 1Kiosk Wiegand QR Code Barcode Scanner Module USB RS232 Interface 2Kiosk Wiegand QR Code Barcode Scanner Module USB RS232 Interface 3Kiosk Wiegand QR Code Barcode Scanner Module USB RS232 Interface 4

Company Advantages:

Our company is specialized in barcode scanner for 20 years since 2000, we have professional research

developement team, has our own factory, support OEM design. We have many customers from different

countries already. And we are Gold supplier in the Alibaba. Our product is certificated by CE,ROHS and FCC.



FAQ:

Q1: Can I get some samples? Are they free?
A1: We support 1-2pcs sample order. Samples should be paid.



Q2: How can I buy?
A2: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us directly

according to the contact info. We will send you proper link directly.



Q3: What is your payment method?
A3: We accept Alibaba online orders by Credit card, PayPal ,T /T



Q4: How long is your warranty time?
A4: Our officially promised warranty time is 1 year after delivery.
