Ticketing Machines PDF417 Barcode Reader Module LV2028 14 Pin Interface Socket

Ticketing Machines PDF417 Barcode Reader Module LV2028 14 Pin Interface Socket

    • Ticketing Machines PDF417 Barcode Reader Module LV2028 14 Pin Interface Socket
  • Ticketing Machines PDF417 Barcode Reader Module LV2028 14 Pin Interface Socket

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Rakinda
    Certification: CE FCC ROHS
    Model Number: LV2028 Bar Code Scanner

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiation
    Packaging Details: package in carton;
    Delivery Time: 3-10 working days
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 1000 piece for a week
    Contact Now
    Detailed Product Description
    Name: LV2028 Bar Code Scanner Application: Kiosks, Ticketing Machines
    Interface: TTL232 (14 Pin Interface Socket ) Sample: 1 Piece
    Feature: High Reading Performance Advantage: Supporting Secondary Development

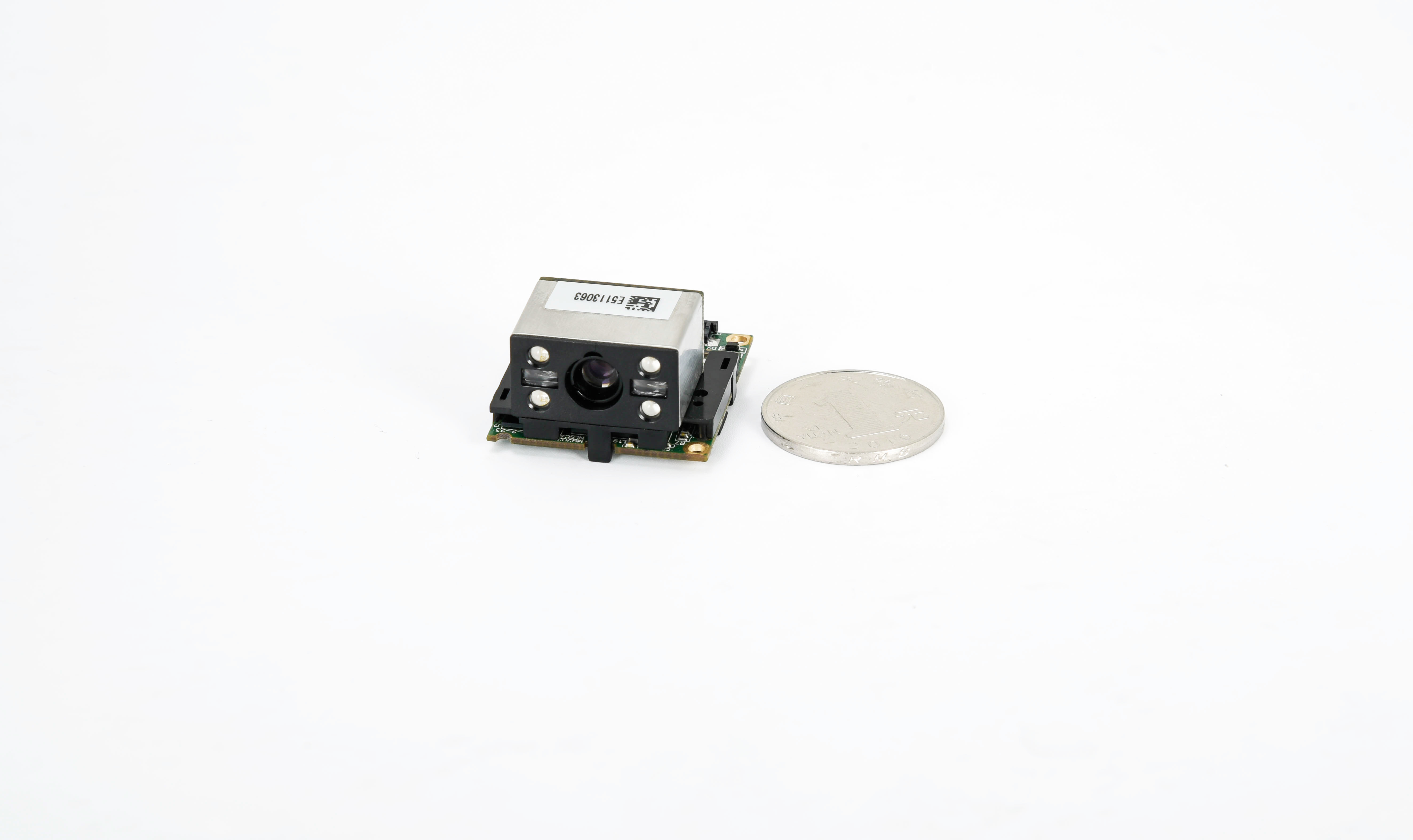

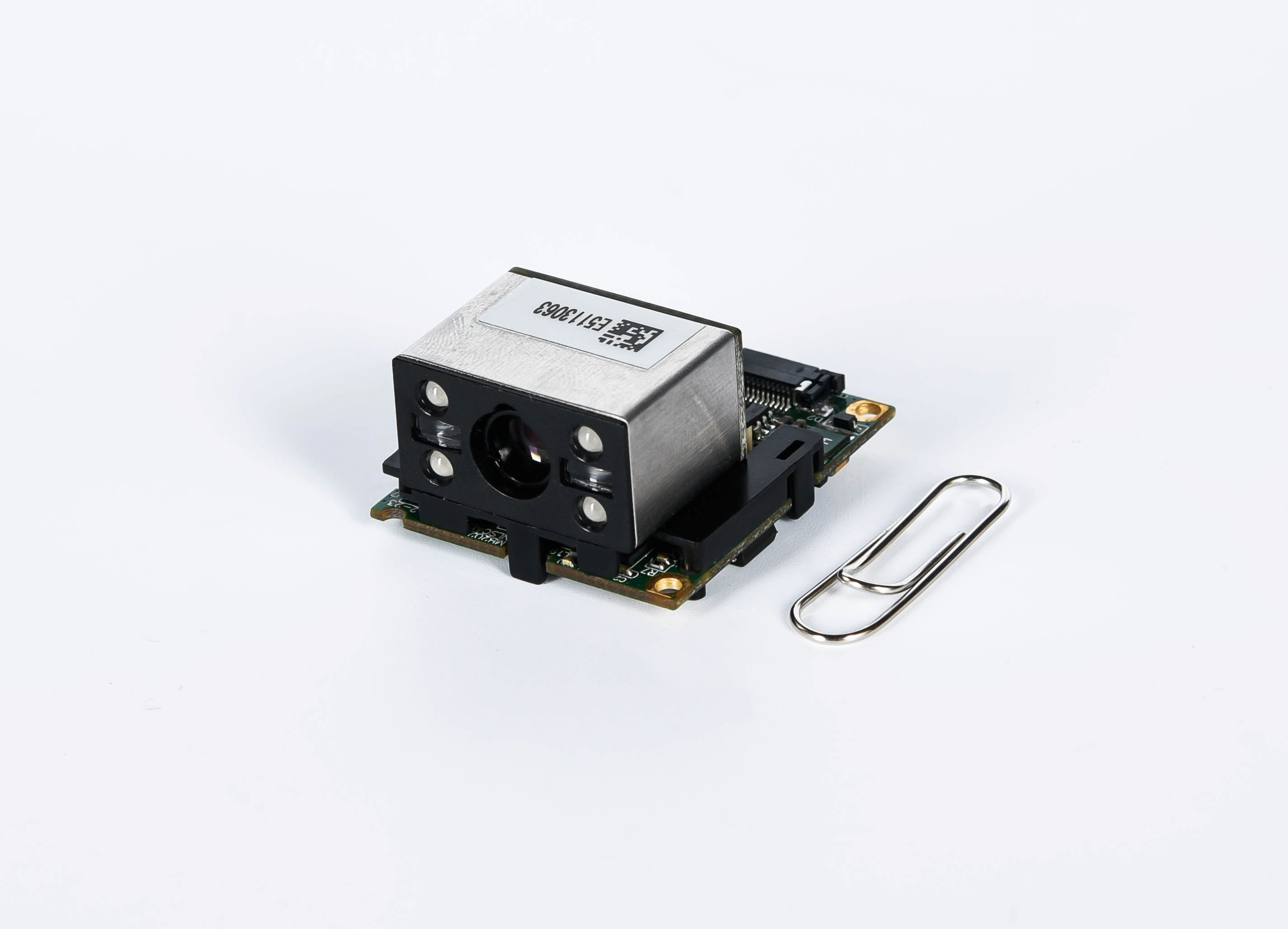

    Ticketing Machines PDF417 Barcode Reader Module LV2028 14 Pin Interface Socket





    1. LV2028 opens its image acquisition interface and camera control to OEM developers to allow their special integration needs. LV 2028 software development kit is provided for easy and quick development of OEM applications.

    2. High Performance & Ultra-Low Power Consumption: The engine can read 1D and 2D barcodes with a power consumption only one third that of a traditional engine.

    3. LV2028 is an embedded Bar Code Reading Engine. Its gray scale CMOS image capturer, a computerized Image Recognition System, ensure the fast scanning and decoding accuracy on different bar code media such as paper, plastic card, and metal surface.



    Application:

    kiosks, ticketing machines



    Model LV2028 barcode scanner module
    Interface TTL-232
    Processor
    CPU
    Image Sensor 752×480 CMOS
    Reading Precision ≥ 5mil
    Illumination Red LED 625±10 nm
    Symbol Contrast ≥ 30% reflectance difference
    Power Consumption 3 W
    Operating Voltage DC 5V
    Dimensions 35.0 *30.0*19.0mm
    Weight 14.0g
    Operating Temperature -20℃~ +60℃
    Humidity 5% - 95% (non-condensing)
    Certificates FCC Part15 Class B, CE EMC Class B




    Ticketing Machines PDF417 Barcode Reader Module LV2028 14 Pin Interface SocketTicketing Machines PDF417 Barcode Reader Module LV2028 14 Pin Interface Socket





    Service:

    Before ordering, we will provide technology consulting, operation and demonstration services and other suggention according to your application requirements.

    We offer technical support to you by phone or online communication and help you solve problems such as testing, installation.

    Response to your quesetion will be given within 24 working hours and your problem will be solved as soon as possible.

    A manual to explain the user the basics of the scanner, how to integrate it and how to configure it. Furthermore, it enables the user to set the scanner to the specific wishes regarding scanning modes, readable barcodes and barcode formats.

    Includes Core-Technolgy UIMG, which is independently designed and manufactured by Longview Auto-ID. UIMG, digitizer, decoder, image processing & embedded systems. The scanner supports all global standard 1D barcode symbologies. Its’ reading performance reaches and exceeds global standards. By using the accessories provided, the user can ideally set up the scanner to its user environment.

    Rakinda Group (RAKINDA) was established in 2000. We have offices in Guangzhou, Shenzhen, Hongkong, Xiamen, Suzhou and Beijing. As one of the leading suppliers in IoT (Internet of Things), RAKINDA, oriented by clients demand, is devoted to the development and innovation of intelligent firmware products and enjoys rich experience and resources in IoT and the big data area.







    Q1: Warranty time?

    A7: 1 year

    Q2: Do you provide EVK for barcode scanner module?

    A8: Yes,but not free.

    Q3: Product OEM?

    A9: Yes, the cost need to be added separately.

    Q4: Customer service?

    A10: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
