Kiosks Embedded 2D Barcode Scanner Module 3 W CPU Processor 5mil Reading Precision

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Rakinda
Certification: CE FCC ROHS
Model Number: LV2028 Bar Code Scanner
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: package in carton;
Delivery Time: 3-10 working days
Payment Terms: Western Union, T/T, paypal
Supply Ability: 1000 piece for a week
Name: LV2028 Bar Code Scanner Processor: CPU
Power Consumption: 3 W Application: Kiosks, Ticketing Machines
Interface: TTL232 (14 Pin Interface Socket ) Reading Precision: ≥ 5mil
High Light:

2d barcode module


2d barcode engine

Kiosks Embedded 2D Barcode Scanner Module 3 W CPU Processor 5mil Reading Precision



How to connect the LV 2028 scan engine with Evaluation Kit?

Step 1 : Module connected to the serial line ;

Step 2 : Serial Cable connected to the computer ;

Step 3: Serial line to connect the 5V power supply ;

Step 4 : Open hyper terminal in comupter ( Communication port in device manager ) ;

Step 5: open TXT or Word window and scan barcode



kiosks, ticketing machines


Model LV2028 barcode scanner module
Interface TTL-232
Image Sensor 752×480 CMOS
Reading Precision ≥ 5mil
Illumination Red LED 625±10 nm
Symbol Contrast ≥ 30% reflectance difference
Power Consumption 3 W
Operating Voltage DC 5V
Dimensions 35.0 *30.0*19.0mm
Weight 14.0g
Operating Temperature -20℃~ +60℃
Humidity 5% - 95% (non-condensing)
Certificates FCC Part15 Class B, CE EMC Class B

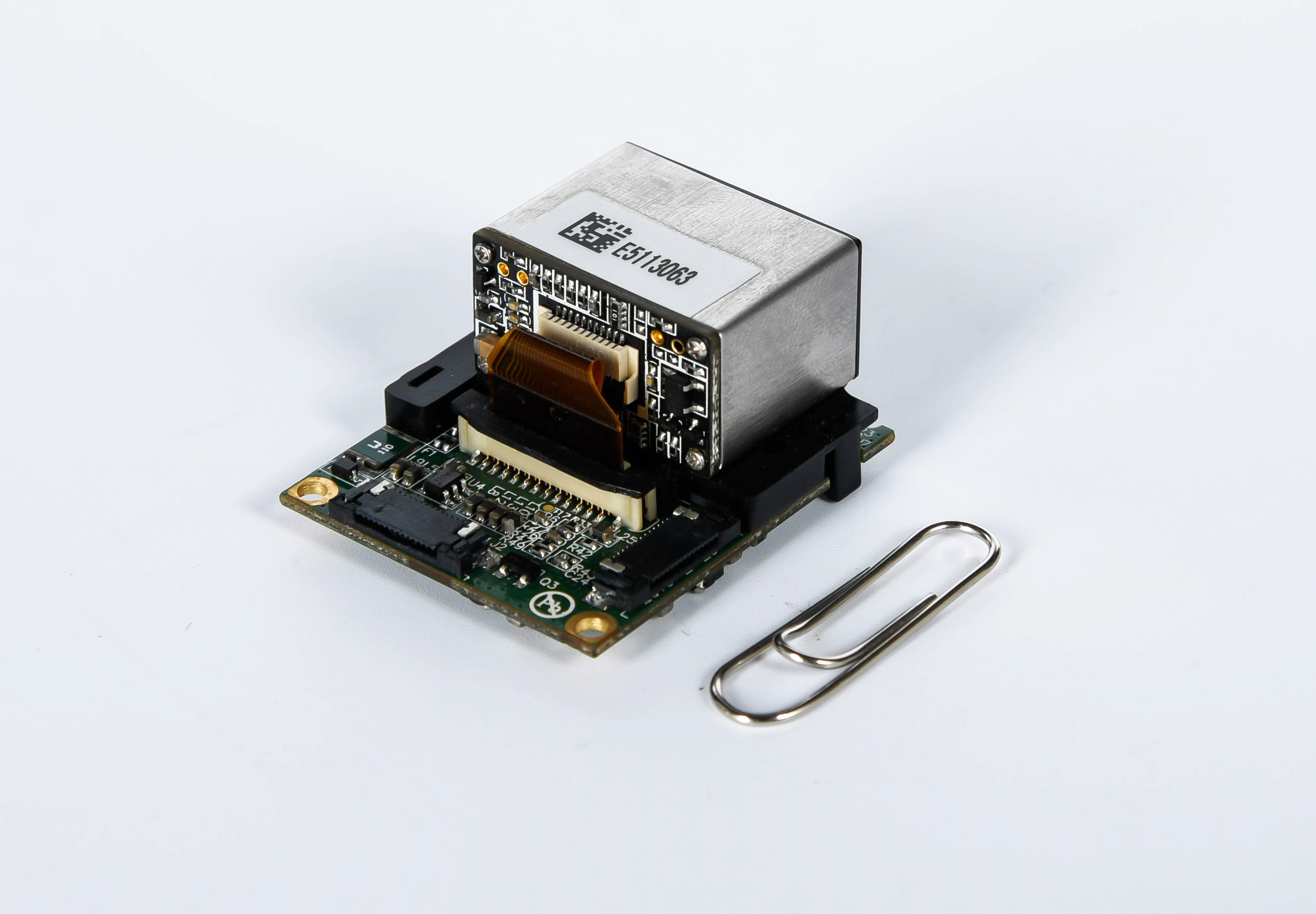

Kiosks Embedded 2D Barcode Scanner Module 3 W CPU Processor 5mil Reading Precision 0

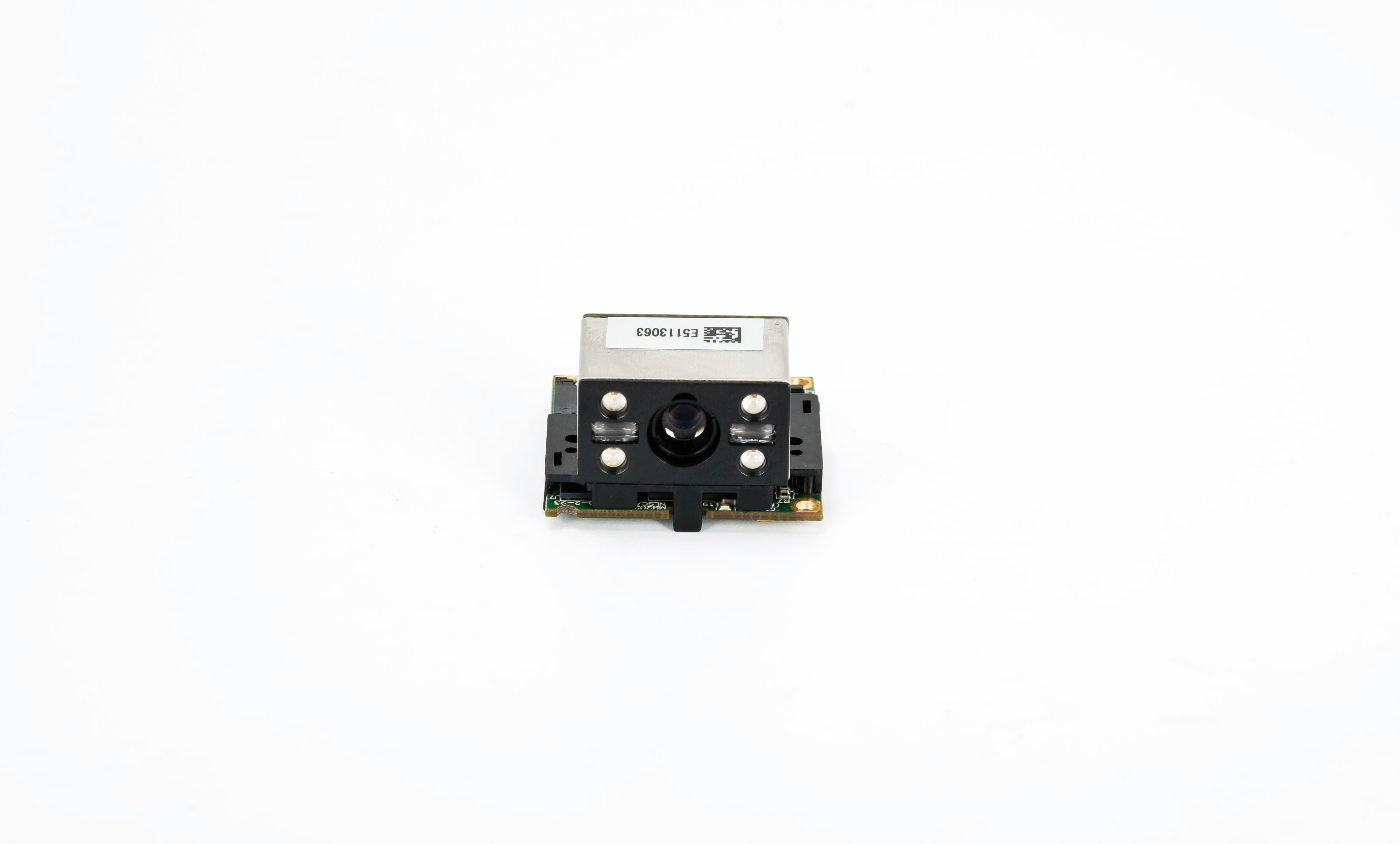

Kiosks Embedded 2D Barcode Scanner Module 3 W CPU Processor 5mil Reading Precision 1

Interface cable

A flexible cabe is needed when using LV 2028. The 14-pins end connects to the LV2028 interface socket. The other end connects to external device. The blow shows how the sample cable is connected to the interface socket.





Before ordering, we will provide technology consulting, operation and demonstration services and other suggention according to your application requirements.

We offer technical support to you by phone or online communication and help you solve problems such as testing, installation.

Response to your quesetion will be given within 24 working hours and your problem will be solved as soon as possible.

A manual to explain the user the basics of the scanner, how to integrate it and how to configure it. Furthermore, it enables the user to set the scanner to the specific wishes regarding scanning modes, readable barcodes and barcode formats.

Includes Core-Technolgy UIMG, which is independently designed and manufactured by Longview Auto-ID. UIMG, digitizer, decoder, image processing & embedded systems. The scanner supports all global standard 1D barcode symbologies. Its’ reading performance reaches and exceeds global standards. By using the accessories provided, the user can ideally set up the scanner to its user environment.

Rakinda Group (RAKINDA) was established in 2000. We have offices in Guangzhou, Shenzhen, Hongkong, Xiamen, Suzhou and Beijing. As one of the leading suppliers in IoT (Internet of Things), RAKINDA, oriented by clients demand, is devoted to the development and innovation of intelligent firmware products and enjoys rich experience and resources in IoT and the big data area.




Q1: Warranty time?

A7: 1 year

Q2: Do you provide EVK for barcode scanner module?

A8: Yes,but not free.

Q3: Product OEM?

A9: Yes, the cost need to be added separately.

Q4: Customer service?

A10: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
