Shenzhen Rakinda Technologies Co.,Ltd .
The leader of the barcode scanner module in the world.
|Place of Origin:||Shenzhen, China|
|Certification:||CE FCC ROHS|
|Model Number:||LV2028 Bar Code Scanner|
|Minimum Order Quantity:||1 piece|
|Packaging Details:||package in carton;|
|Delivery Time:||3-10 working days|
|Payment Terms:||Western Union, T/T, paypal|
|Supply Ability:||1000 piece for a week|
|Name:||LV2028 Bar Code Scanner||Brand Name:||Rakinda|
|Processor:||CPU||Operating Voltage:||DC 5V|
2d barcode engine,

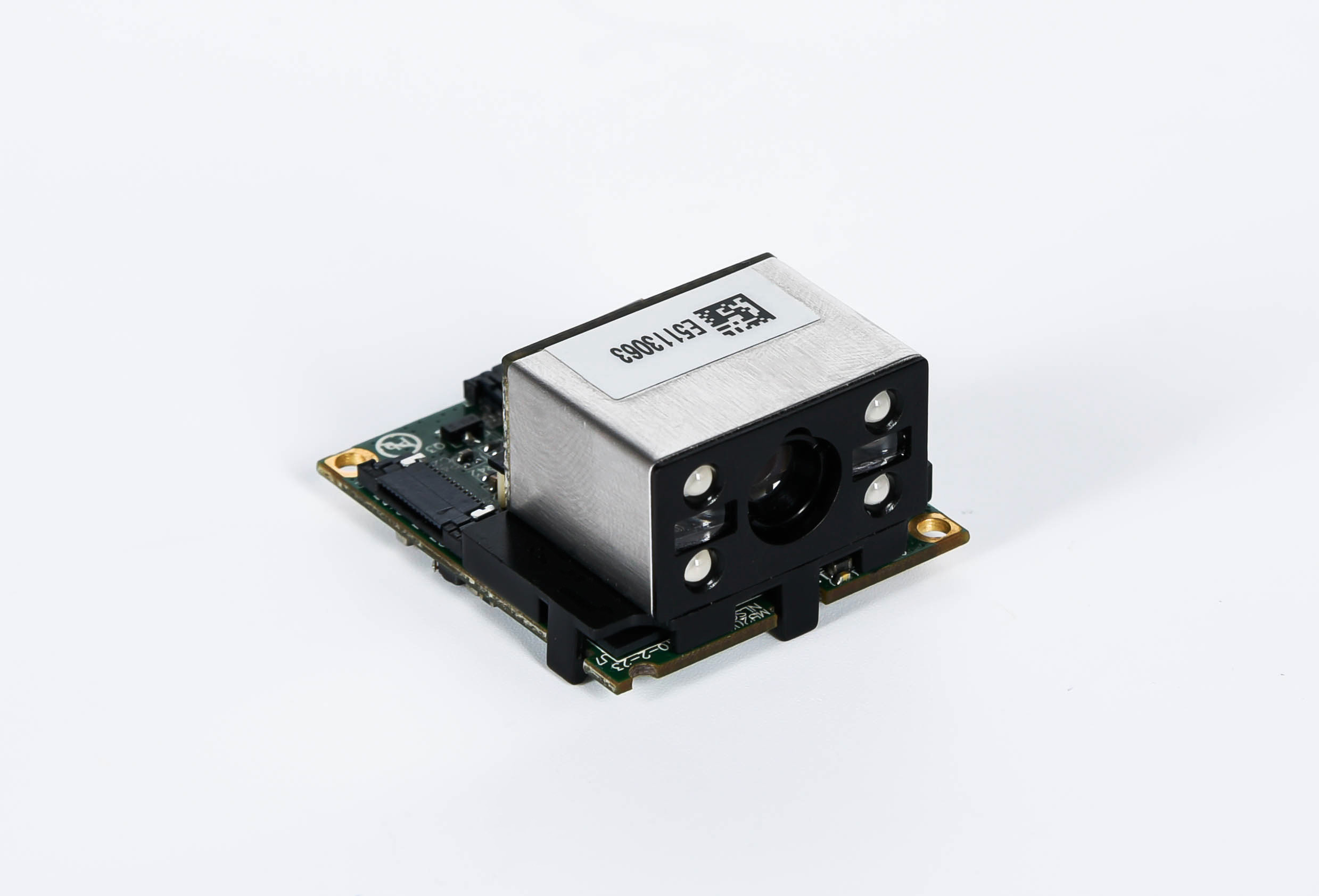

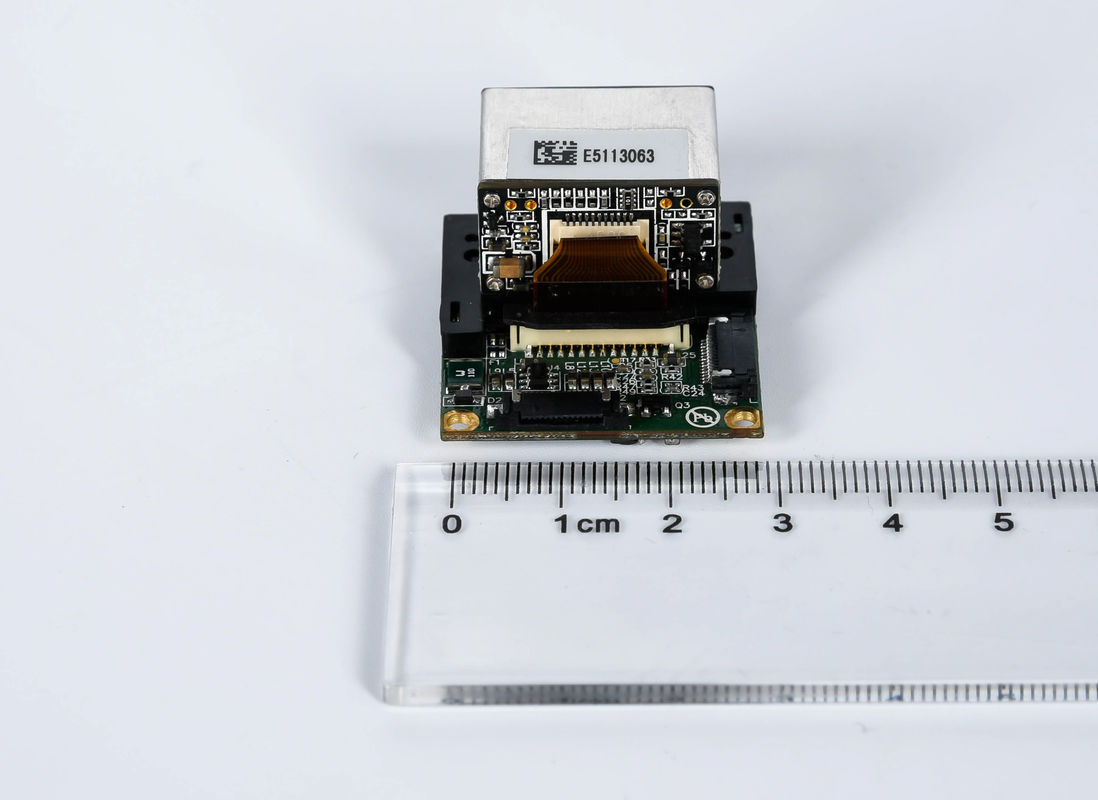

3 W Barcode Reader Module Multi Interface DC 5V Operating Voltage 35×30×19 mm
Feature of LV 2028 QR Code Scanner
1. Discrete Design;
2. High Reading Performance;
3. Multi Interface;
4. Supporting Secondary;
kiosks, ticketing machines
|Model||LV2028 barcode scanner module|
|Image Sensor||752×480 CMOS|
|Reading Precision||≥ 5mil|
|Illumination||Red LED 625±10 nm|
|Symbol Contrast||≥ 30% reflectance difference|
|Power Consumption||3 W|
|Operating Voltage||DC 5V|
|Operating Temperature||-20℃~ +60℃|
|Humidity||5% - 95% (non-condensing)|
|Certificates||FCC Part15 Class B, CE EMC Class B|
A flexible cabe is needed when using LV 2028. The 14-pins end connects to the LV2028 interface socket. The other end connects to external device. The blow shows how the sample cable is connected to the interface socket.
Before ordering, we will provide technology consulting, operation and demonstration services and other suggention according to your application requirements.
We offer technical support to you by phone or online communication and help you solve problems such as testing, installation.
Response to your quesetion will be given within 24 working hours and your problem will be solved as soon as possible.
A manual to explain the user the basics of the scanner, how to integrate it and how to configure it. Furthermore, it enables the user to set the scanner to the specific wishes regarding scanning modes, readable barcodes and barcode formats.
Includes Core-Technolgy UIMG, which is independently designed and manufactured by Longview Auto-ID. UIMG, digitizer, decoder, image processing & embedded systems. The scanner supports all global standard 1D barcode symbologies. Its’ reading performance reaches and exceeds global standards. By using the accessories provided, the user can ideally set up the scanner to its user environment.
Rakinda Group (RAKINDA) was established in 2000. We have offices in Guangzhou, Shenzhen, Hongkong, Xiamen, Suzhou and Beijing. As one of the leading suppliers in IoT (Internet of Things), RAKINDA, oriented by clients demand, is devoted to the development and innovation of intelligent firmware products and enjoys rich experience and resources in IoT and the big data area.
Q1: Warranty time?
A7: 1 year
Q2: Do you provide EVK for barcode scanner module?
A8: Yes,but not free.
Q3: Product OEM?
A9: Yes, the cost need to be added separately.
Q4: Customer service?
A10: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
