| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Brand Name: | RAKINDA |
| Certification: | CE, RoHS |
| Model Number: | LV1000R |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotiation |
| Packaging Details: | barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam. |
| Delivery Time: | within 5 working days after receiving the balance |
| Payment Terms: | Western Union, T/T, paypal |
| Supply Ability: | 1000 PCS/ week |
| Product Name: | Fixed Mount 1D Barcode Scanner Module | Type: | Fixed Mount Barcode Scanner |
|---|---|---|---|
| Cable: | RS-232/ USB | Power Consumption: | 1.25W |
| Voltage: | DC 5 V | Weight: | 70g |
| Humidity: | 5% - 95% （non-condensing） | Illumination: | 0 ~ 100,000 LUX |
| High Light: | arduino barcode reader,digital barcode scanner |
||

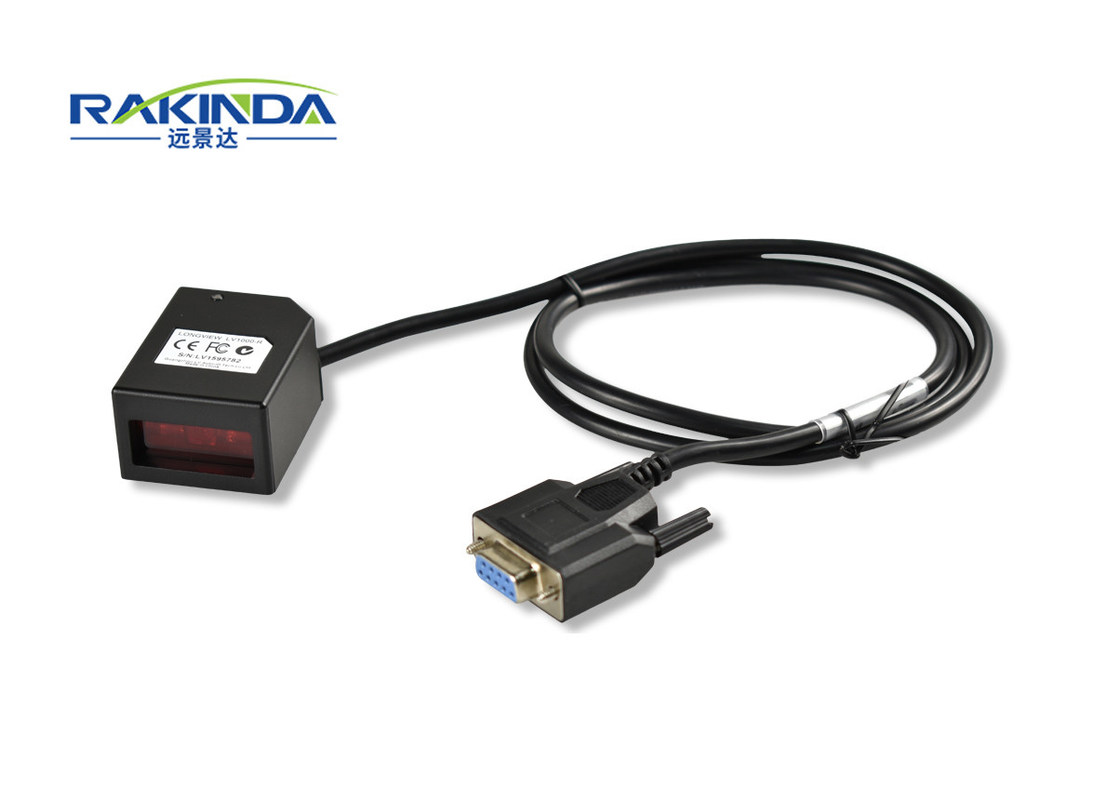

Outdoor Fixed Mount Barcode Scanner 1D Scan Module 1.25W Light Resistant
Programmable OEM 1D Barcode Reader Module/Barcode Scanner Parts , with fixed mount and compact design, its suitable for all kinds of self-service devices, ATMs, ticket terminal, medical device, assembly lines for embedded use.
With infrared sensor, the LV1000R fixed mount 1D barcode scaner can accurately detect and read the barcodes, and also save power at the same time, only when a barcode appear, the illumination light will be on and the scanner begins to work, this way the scanner can always keep cool, this also makes the scanner more durable and reliable.
The barcode scaner readable all of 1D barcodes such as Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1Databar, etc...and also with high performance for reading codes from smart phone screen.
The center decoding setting utility which allow images are appropriately lit to enable accurate capture. Enable you to bring your systems to market quickly and cost effectively.
Technical Specifications of LV1000R Fixed Mount 1D Barcode Scanner Module
| Performance | ||
| Image Sensor | CCD | |
| Resolution | 2500 | |
| Interface | RS232, USB | |
| Symbologies | Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1Databar,etc. | |
| Precision | ≥ 5mil( Condition: PCS=0.9, testing code: Code 39) | |
| Depth of Scan Field | 40mm-430mm | |
| Print Contrast Signal | ≥ 30% | |
| Sensitivity** | Pitch | ±65°@ 0°Roll and 0° Skew |
| Roll | ±30°@ 0°Pitch and 0° Skew | |
| Skew | ±60°@ 0°Roll and 0° Pitch | |
| Illumination | 0 ~ 100,000 LUX | |
| Light Source | LED(622 nm - 628 nm) | |
| Light Intensity | 265 LUX (130 mm ) | |
| Mechanical/ Electrical | ||
| Power Consumption | 1.25W | |
| Voltage | DC 5 V | |
| Current | Max | 250 mA |
| Working | 170mA | |
| Idle | 65mA | |
| Dimensions | 49.0 *37.0 * 26.0 mm | |
| Weight | 70 g | |
Barcode Scanner FAQ
Q1: Can I get some samples? are they free?
A1: Of course, but samples are not free.
Q2: What's the delivery time?
A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
Q3: What about payment?
A3: Payment terms: T/T,West Union and L/C etc.
Q4: Can you list the product of your company?
A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
Q5: What's the OS of the POS?
A5: Android and Windows,details please refer to the technical data of the Product.
Q6: Where can we download the SDK/user manual for some of your products?
A6: SDK/User manual will be sent to you by email after the sample order.
Q7: Warranty time?
A7: 1 year
Q8: Do you provide Evaluation Kit for testing barcode scanner module?
A8: Yes, but you need to pay for EVK separately.
Q9: Product OEM?
A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
Q10: Customer service?
A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
