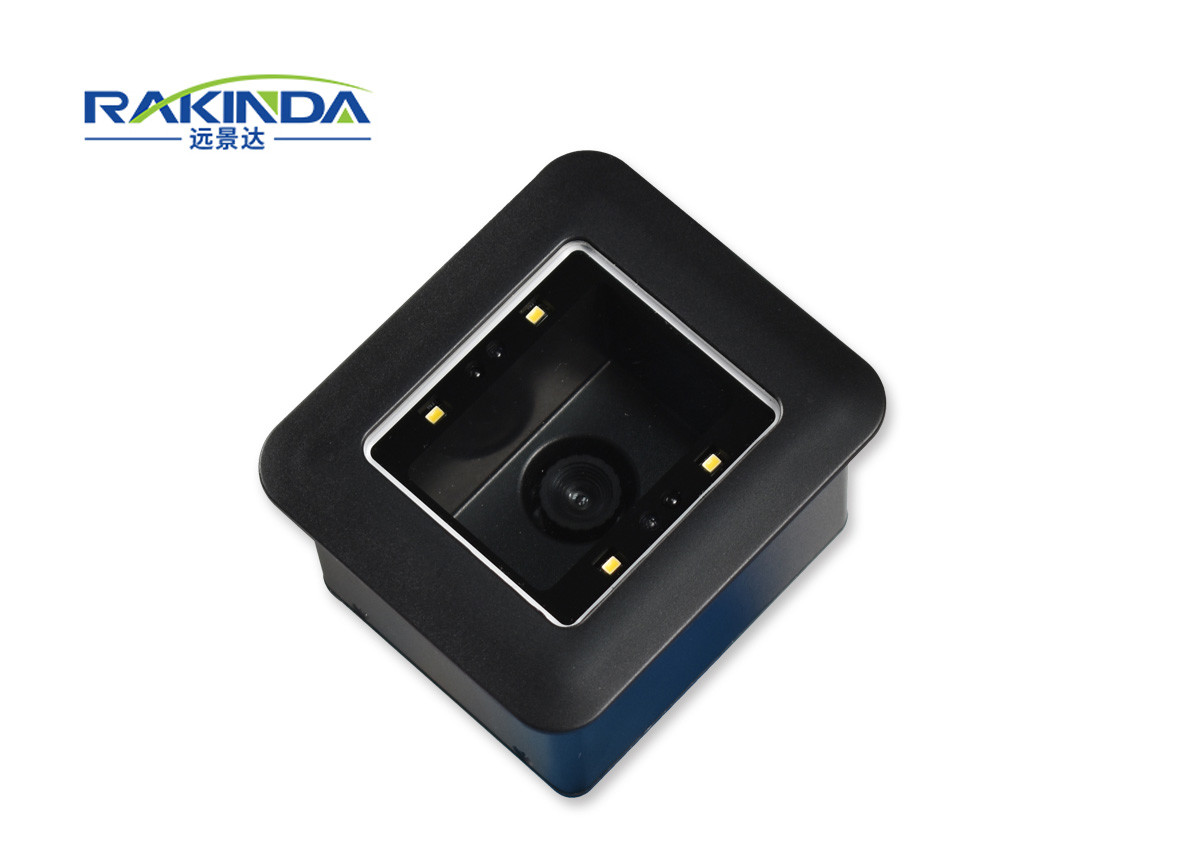

Fix mounted 2D Barcode Scanner Module Scaning QR Code for Turnstile

Fix mounted 2D Barcode Scanner Module Scaning QR Code for Turnstile

    • Fix mounted 2D Barcode Scanner Module Scaning QR Code for Turnstile
    • Fix mounted 2D Barcode Scanner Module Scaning QR Code for Turnstile
  • Fix mounted 2D Barcode Scanner Module Scaning QR Code for Turnstile

    Product Details:

    Place of Origin: Shenzhen, Guangdong, China
    Brand Name: RAKINDA
    Certification: CE, RoHS
    Model Number: RD4500R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pcs
    Price: Negotiation
    Packaging Details: barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
    Delivery Time: within 5 working days after receiving the balance
    Payment Terms: Western Union, T/T, paypal
    Supply Ability: 1000 PCS/ week
    Contact Now
    Detailed Product Description
    Item Name: Fix Mounted 2D Barcode Scanner Module Interface: USB 1.1 (HID-KBW, HID-POS)/ RS-232 (9.6~115.2Kbps)
    Type: 2D Barcode Scanner Scan Element Type: CMOS
    Weight/ PCS: 300g Size: 84mm(L) X74mm (W) X 50mm(H)
    Humidity: 5% - 95% ( Non-condensing ) Products Status: Stock

                      Fix mounted 2D Barcode Scanner Module Scaning QR Code for Turnstile





    The instructions of scanning bar code to let turnstile open

    The application relies on bar code automatic identification technology, the residents just need to read the 2D bar code in the scanning window to achieve a pass from the community to the door, to the building access control, and then to the users’ door. It is worth mentioning that the residents, make full use of the intelligent access control system code and the excellent reading performance of RD4500R 2D bar code scanner to get real-name certification and all comings and goings’ record of all the members in the process of scanning code verification,which can improve safety substantially in the district. With the increasing awareness of users’ safety and insurance, the application will be used more and more widely in future.



    It can also be applied to theaters, parks, tourist attractions, water parks, venues, bus terminals, parking, activities, such as the crowded temporary occasions with good performance and high sensitivity in poor light. And it's white light doesn't hurt our eyes even protect our eyes, we have patent about that with big scan window.



    Technical Specifications of RD4500R 2d barode Scanner module

    Performance
    Processor IOTC 0370 CHIP
    Image Sensor Type 752×480 CMOS
    Interface RS-232/ USB
    Symbologies 2D PDF417, Data Matrix, QR Code
    1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
    Scan Mode Sense mode
    Resolution 10mil
    Light Source White LED
    Scan Window 38.3mm×60.4mm
    PCS ≥30%
    FOV Diagonal: 85°, Horizontal: 63.7°, Vertical: 70°
    Mechanical/Electrical
    Power Consumption 1.75W (max.)
    Notification Beep
    Size (L x W x H) 84×74×50mm
    Weight 300g

    Fix mounted 2D Barcode Scanner Module Scaning QR Code for Turnstile

    Barcode Scanner FAQ

    Q1: Can I get some samples? are they free?
    A1: Of course, but samples are not free.
    Q2: What's the delivery time?
    A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
    Q3: What about payment?
    A3: Payment terms: T/T,West Union and L/C etc.
    Q4: Can you list the product of your company?
    A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
    Q5: What's the OS of the POS?
    A5: Android and Windows,details please refer to the technical data of the Product.
    Q6: Where can we download the SDK/user manual for some of your products?
    A6: SDK/User manual will be sent to you by email after the sample order.
    Q7: Warranty time?
    A7: 1 year
    Q8: Do you provide Evaluation Kit for testing barcode scanner module?
    A8: Yes, but you need to pay for EVK separately.
    Q9: Product OEM?
    A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
    Q10: Customer service?
    A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
