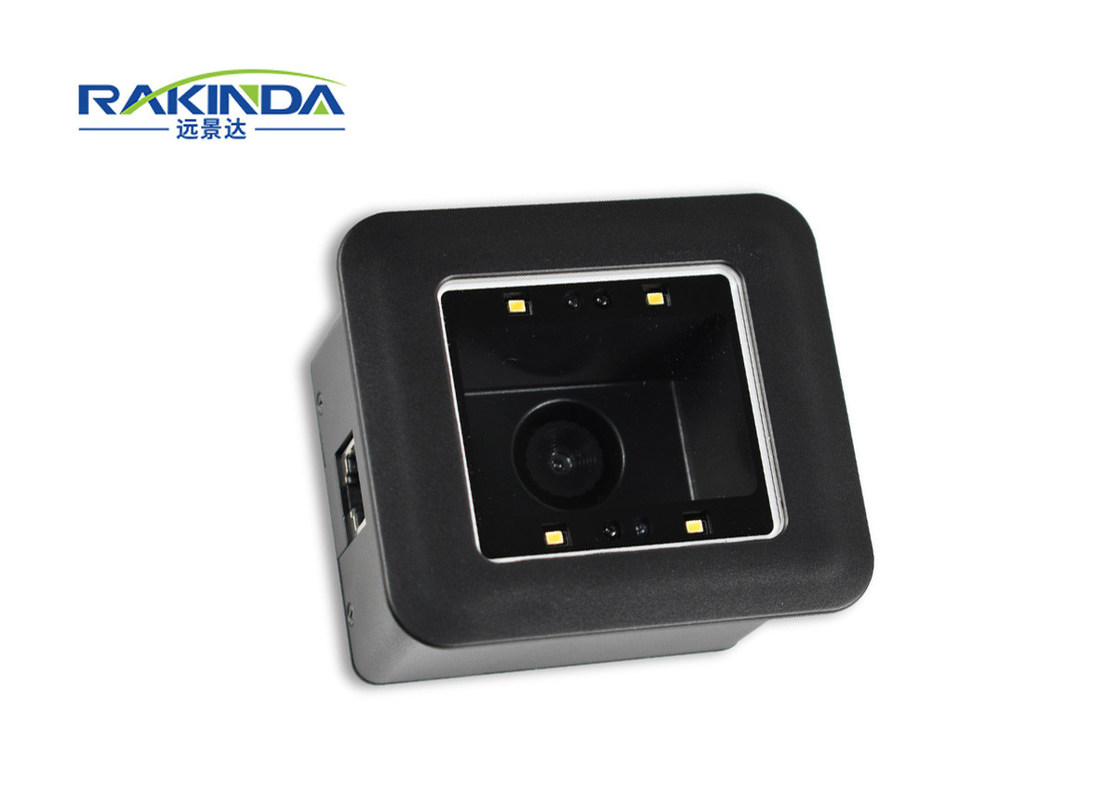

Arduino Barcode Reader USB 2D Barcode Scanner Sense Mode For Access Control

Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAKINDA
Certification: CE, RoHS
Model Number: RD4500R
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam.
Delivery Time: within 5 working days after receiving the balance
Payment Terms: Western Union, T/T, paypal
Supply Ability: 1000 PCS/ week
Item Name: USB 2D Scan Engine For Access Control Port: Shenzhen Port
Type: USB Barcode Scanner Scan Element Type: 752×480 CMOS
Weight/ PCS: 300g Size: 84mm(L) X74mm (W) X 50mm(H)
Humidity: 5% - 95% ( Non-condensing ) Products Status: Stock
High Light:

arduino barcode reader


digital barcode scanner

Arduino Barcode Reader USB 2D Barcode Scanner Sense Mode For Access Control​



1. Industrial Protection

The RD4500R fixed mount barcode scanner is designed to have dust and water resistance in several applications, and guarantees the best performance in a tough working environment. It can be used in a wide temperature range from -10°C to 50°C.


RD4500R fixed mount barcode scanner guarantees the best performance in the toughest working environment throughout all applications.


2. Outstanding Performance

The RD4500R 2D fixed mount barcode scanner achieves outstanding scanning performance thanks to the high quality CMOS image sensor. The RD4500R fixed mount barcode scanner to capture any 1D barcodes including low contrast (down to 30% PCS) in darkness.


What is Access Control?

When combined with a barcode reader and Electronic Door Controller, Gym Assistant can provide access control for your facility entrance doors.

For access control at the front desk, you may want to install a turnstile or gate. Members swipe a card and then pass through a turnstile, swing gate or half-height door.

Install an electronically-controlled door lock on the outside entrance for 24-hour access.

Most turnstiles, gates and electronically controlled locks require the same type of input to trigger; they all work by momentarily closing a circuit. Think of a doorbell where you press a button to trigger the doorbell chime.


Technical Specifications of RD4500R USB barode Scanner Module

Processor IOTC 0370 CHIP
Image Sensor Type 752×480 CMOS
Interface RS-232/ USB
Symbologies 2D PDF417, Data Matrix, QR Code
1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
Scan Mode Sense mode
Resolution 10mil
Light Source White LED
Scan Window 38.3mm×60.4mm
PCS ≥30%
FOV Diagonal: 85°, Horizontal: 63.7°, Vertical: 70°
Power Consumption 1.75W (max.)
Notification Beep
Size (L x W x H) 84×74×50mm
Weight 300g
Operating Temperature -10°C - +50°C
Storage Temperature -20°C - +60°C

Arduino Barcode Reader USB 2D Barcode Scanner Sense Mode For Access Control 0


Barcode Scanner FAQ

Q1: Can I get some samples? are they free?
A1: Of course, but samples are not free.
Q2: What's the delivery time?
A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
Q3: What about payment?
A3: Payment terms: T/T,West Union and L/C etc.
Q4: Can you list the product of your company?
A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
Q5: What's the OS of the POS?
A5: Android and Windows,details please refer to the technical data of the Product.
Q6: Where can we download the SDK/user manual for some of your products?
A6: SDK/User manual will be sent to you by email after the sample order.
Q7: Warranty time?
A7: 1 year
Q8: Do you provide Evaluation Kit for testing barcode scanner module?
A8: Yes, but you need to pay for EVK separately.
Q9: Product OEM?
A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
Q10: Customer service?
A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
