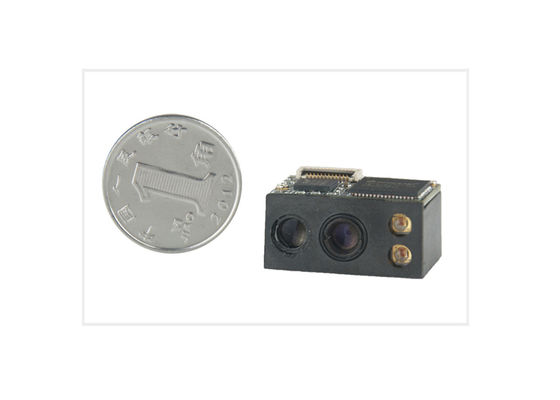

Handheld Device PDF417 Barcode Reader Module 48MHz IOTC Processor

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Rakinda
Certification: CE FCC ROHS
Model Number: LV3096 Scan Engine
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: package in carton;
Delivery Time: 3-10 working days
Payment Terms: Western Union, T/T, paypal
Supply Ability: 1000 piece for a week
Name: Qr Code Scanner Sample: Accepted
Processor: IOTC 2D Decoder Chip 48MHz OEM: Accepted
Power Consumption: 0.76W(max) Certificates: FCC Part15 Class B, CE EMC Class B
High Light:

2d barcode module


2d barcode engine

Handheld Device PDF417 Barcode Reader Module 48MHz IOTC Processor



1. Is there a great barcode reader SDK?

No. It is not needed. The communication protocol for barcode scanner module (including all models) are ttl 232, RS232, USB. With proper connection, the barcode scanner module can work directly. There is no need for SDK.

2. Are Qr barcodes popular in China mobile marketing?
Yeah, Qr barcode becomes more and more pupular in China Mobie marketing, especially in making payment through phone, for example there are Qr codes in the software of wechat and alipay, it is convenient to scan this code to make payments. Qr code is not only used in supermarkets, but also in Bus.
3. Manufacturer RAKINDA has been focused to develop new models to meet customers' requirement and give benefits to customers with a lower cost.
Model LV3096 barcode readerr
Sample price Negotiated
Scan Rate Up to 300 scans/sec
Processor IOTC 2D decoder chip 48MHz
Decode Rate 200 scans/sec
Reading Resolution 5mil
Light Source Red LED 625±10 nm
Ambient Light 0 ~ 100,000 LUX
Depth of scan field 3--70cm
Print Contrast Signal ≥30%PCS
Power Consumption 0.76W(max)
Notification Beep
Dimensions 21.17(W)×14.6(D)×11.52(H)mm
Weight 5g
StorageTemperature -40°C - +80°C
Humidity 5% - 95% (non-condensing)
Certificates FCC Part15 Class B, CE EMC Class B


Handheld Device PDF417 Barcode Reader Module 48MHz IOTC Processor 0




Before ordering, we will provide technology consulting, operation and demonstration services and other suggention according to your application requirements.

We offer technical support to you by phone or online communication and help you solve problems such as testing, installation.

Response to your quesetion will be given within 24 working hours and your problem will be solved as soon as possible.

As one of the leading suppliers in IoT (Internet of Things), RAKINDA, oriented by clients demand, is devoted to the development and innovation of intelligent firmware products and enjoys rich experience and resources in IoT and the big data area.


keep it simple and profound promise, that is :your satisfaction is our pursuit.As for any product sold by our company,we can promise the quantity,We always provide most suitable customized products and services according to the actual needs of customers,and always be a customers' trustworthy company.



Q1: Warranty time?

A7: 1 year

Q2: Do you provide EVK for barcode scanner module?

A8: Yes,but not free.

Q3: Product OEM?

A9: Yes, the cost need to be added separately.

Q4: Customer service?

A10: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
