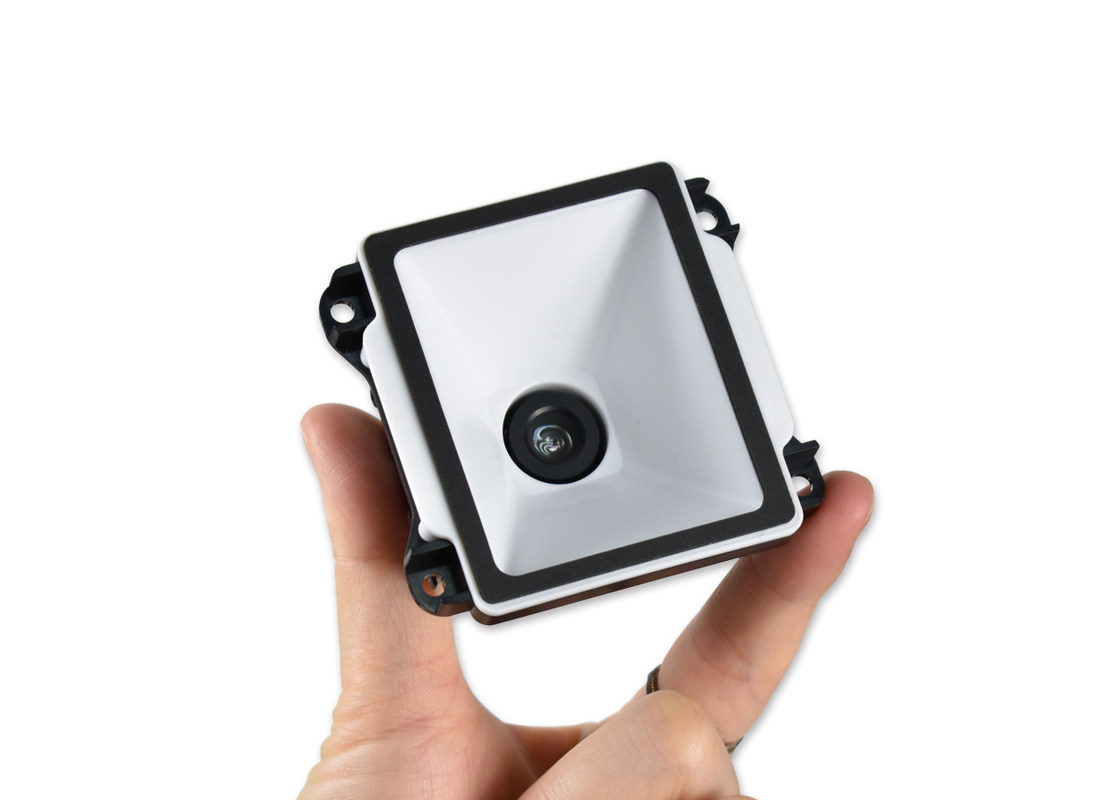

White LED Light Barcode Scanner Module 5Mil Resolution Low Power Consumption

Basic Information
Place of Origin: China
Brand Name: RAKINDA
Certification: FCC,CE,Rosh
Model Number: LV4200.01
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: 14*11*8.5cm
Payment Terms: Western Union, T/T, paypal
Supply Ability: 10000 pcs per month
Name: 1D 2d OEM Barcode Scanner Module Image Sensor: 752×480 CMOS
Symbologies: 1D2D Resolution: 5mil
Symbol Contrastof Field: ≥30% Reflectance Difference Scan Angle: Roll: 360°, Pitch: ±40°, Skew: ±40°
Field Of View: Horizontal 80°, Vertical 56°
High Light:

2d barcode module


barcode engine

White LED Light Barcode Scanner Module 5Mil Resolution Low Power Consumption



1D2D CMOS barcode scanner reader  standing bank atm machine/kiosk with cash dispenser and cash acceptor


Snappy On-Screen Barcode Capture

The LV4200 can capture on-screenbarcodes effortlessly even when the screen is covered with protective film orset to its lowest brightness level.


Multiple Interfaces

The LV4200 supports USB and TTL-232 interfaces to meet diverse customer needs.

Two-In-One Design

Seamlessintegration of image sensor and decoder board makes the scan engine small, lightweightand easy for integration.


Low Power Consumption

Theadvanced technology incorporated inthe scan engine promises low power consumption and prolonged service life.


Application Scenarios (as an accessory)

Self-servicecabinets used in e-commerce, express delivery services and smart homes; ATMs;kiosks; queue machines; lottery machines; certificate makers.White LED Light Barcode Scanner Module 5Mil Resolution Low Power Consumption 0

White LED Light Barcode Scanner Module 5Mil Resolution Low Power Consumption 1

Performance Image Sensor 752×480 CMOS
Light Source White LED
Symbologies 2D PDF417, QR Code (QR1/2, Micro), Data Matrix (ECC200, ECC000,
050, 080, 100, 140)
  1D Code128, UCC/EAN-128, AIM-128, EAN-8, EAN-13, ISBN/ISSN,
UPC-E, UPC-A, Interleaved 2 of 5, ITF-6, ITF-4, Matrix 2 of 5,
Industrial 25, Standard 25, Code 39, Codabar, Code 93, Code 11,
Plessey, MSI-Plessey, GS1-DataBarTM(RSS), (RSS-14, RSS-Limited,
Resolution ≥5mil
Typical Depth of Field EAN-13 10mm-55mm (13mil)
  PDF 417 15mm-35mm (6.67mil)
  Data Matrix 15mm-40mm (10mil)
  QR Code 10mm-50mm (15mil)
Symbol Contrast ≥30% reflectance difference
Scan Angle** Roll: 360°, Pitch: ±40°, Skew: ±40°
Field of View Horizontal 80°, Vertical 56°
Mechanical/ Interface TTL-232, USB (HID-KBW, COM Port Emulation, HID-POS)
Electrical Operating Voltage 3.0~5.5VDC
  Current@5VDC Operating 160mA
    Sleep 12mA
  Dimensions 65.1(D)×61.1(W)×43.6(H)mm
  Weight 41.5g
Environmental Operating Temperature -20℃~+60℃ (-4°F~140°F)
Storage Temperature -40℃~+80℃(-40°F~176°F)
Humidity 5%~95% (non-condensing)
Ambient Light 0~100000lux (natural light)
Accessories USB Cable Used to connect the LV4200 to a host device.


Q: Can I get some samples? Are they free?
A: We support 1pc sample order. Samples should be paid.
Q: Can I get extra cables for the scanners?
A: Yes you can. We will provide according to your request.
Q: How can I buy?
A: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
