Place of Origin: | Shenzhen, Guangdong, China |
---|---|
Brand Name: | RAKINDA |
Certification: | CE, RoHS |
Model Number: | RD4500I |
Minimum Order Quantity: | 1 pcs |
Price: | Negotiation |

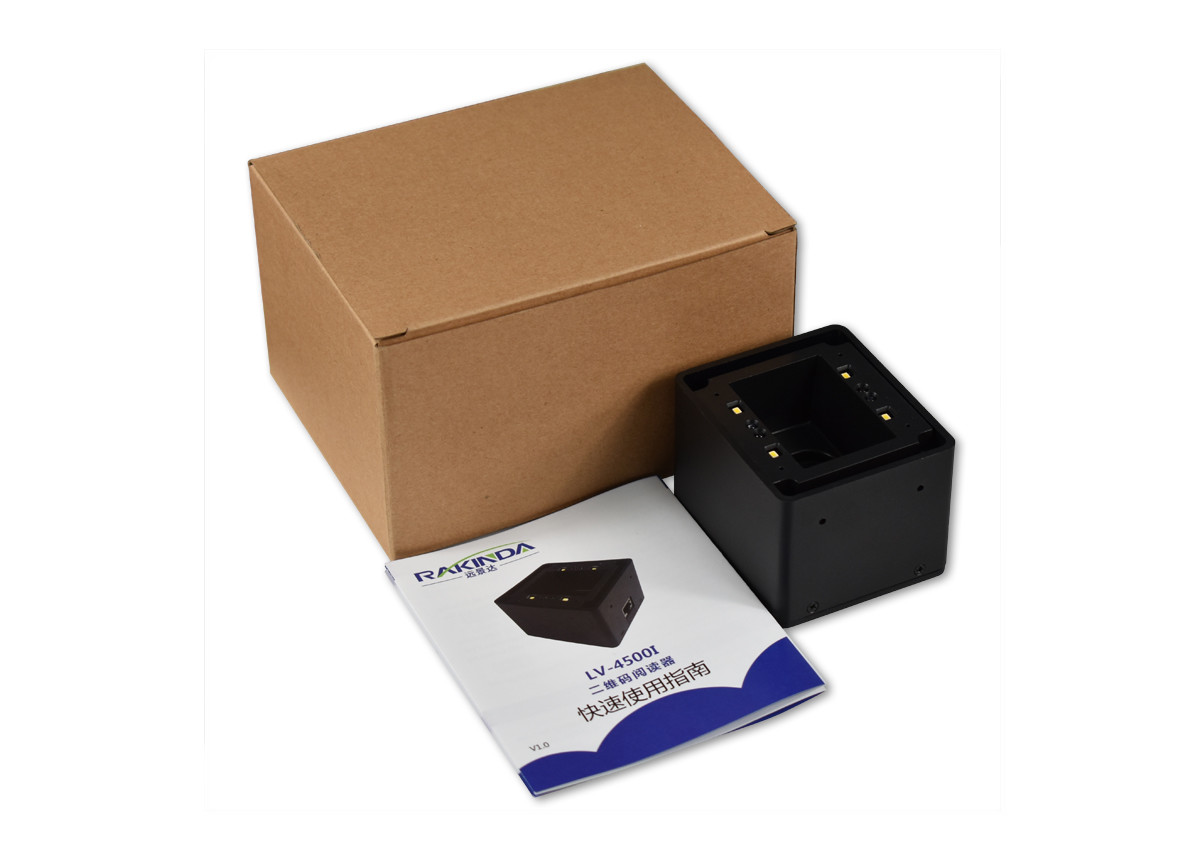

Packaging Details: | barcode scanner+USB/RS232 Cable+ Power Adaptor(for RS232 only). Normal craft paper and foam. |
Delivery Time: | within 5 working days after receiving the balance |
Payment Terms: | Western Union, T/T, paypal |
Supply Ability: | 1000 PCS/ week |
Item Name: | 2D Barcode Scanner Module | Scan Mode: | Sense Mode |
---|---|---|---|
Resolution: | 10 Mil | Light Source: | White LED |
Weight: | 280g | Size: | 71mm(L) X 61mm (W) X 50mm(H) |
Humidity: | 5% - 95% ( Non-condensing ) | Color: | Black |
High Light: | barcode scanner oem module,oem barcode module |
Data Matrix CMOS Barcode Scan Engine 5% - 95% Humidity for Access Control
Features
1. Digital Barcode Data Capture
Capable of reading 1D and 2D barcodes off mobile phones.
2. Printed Barcode Data Capture
Capable of reading 1D and 2D barcodes printed on paper.
3. Swift Scanning
Delivers effortless, snappy and accurate reading of barcodes on various mobile phone LCD screens with different contrast ratios, colors and reflectance.
4. Easy to Use
Simple configuration by scanning the programming barcodes provided in the user guide.
5. Durable Metal Housing
The scanner uses a durable metal housing, making it ideal for self-service applications.
6. Outstanding Power Efficiency
The advanced NLDC technology incorporated in the scanner helps reduce the power consumption and prolong the service life of the device.
Technical Specifications of RD4500I 2D barode Scanner Module
Performance | |||
Processor | IOTC 0370 CHIP | ||
Image Sensor | 752×480 CMOS | ||
Interface | RS-232 (9.6~115.2Kbps) / USB 1.1 (HID-KBW, HID-POS) | ||
Symbologies | 2D | PDF417, Data Matrix, QR Code | |
1D | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey | ||
Scan Mode | Sense mode | ||
Resolution | 10mil | ||
Light Source | White LED | ||
Scan Window | 38.3mm×60.4mm | ||
PCS | ≥30% | ||
FOV | Diagonal: 85°, Horizontal: 63.7°, Vertical: 70° | ||
Mechanical/Electrical | |||
Power Consumption | 1.75W (max.) | ||
Notification | Beep | ||
Dimensions (L x W x H) | 71×61×50mm | ||
Weight | 280g | ||
Environmental | |||
Operating Temperature | -10°C - +50°C | ||
Storage Temperature | -20°C - +60°C | ||
Humidity | 5% - 95% (non-condensing) | ||
Ambient Light | 0 ~ 100,000 LUX | ||
Certifications | |||
FCC Part15 Class B, CE EMC Class B |
Why bar code for access control?
1. There are many problems in traditional access control.
The traditional access control guard the door by the “mechanical lock”, users often need to use a special mechanical key to open the door, and it has the main problems. First of all, managers can not check the door effectively. They can not know who enters the door and get the relevant data at that time causing the potential security risk. Secondly, there are too many keys. Each door corresponds to a key, the members, with a large number of office, often need to match a large number of mechanical keys. Thirdly, it’s hard to carry. Generally, mechanical keys are metal, which will affect the look and make people uncomfortable if hang the metal keys on the waist or put into the pocket. Fourthly, it’s hard to control missing. If lost mechanical key, we could not prevent people who pick up from opening and stealing the door maliciously or other phenomena.
Barcode Scanner FAQ
Q1: Can I get some samples? are they free?
A1: Of course, but samples are not free.
Q2: What's the delivery time?
A2: Depend on product and quantity of your order,sample could be sent to you in 3 work days after receiving balance.
Q3: What about payment?
A3: Payment terms: T/T,West Union and L/C etc.
Q4: Can you list the product of your company?
A4: Barcode Scanner Module, Desktop Barcode Scanner, Handheld Barcode Scanner, Portable Barcode Scanner Module, Bluetooth RFID Scanner, POS Terminal, Android Mainboard etc.
Q5: What's the OS of the POS?
A5: Android and Windows,details please refer to the technical data of the Product.
Q6: Where can we download the SDK/user manual for some of your products?
A6: SDK/User manual will be sent to you by email after the sample order.
Q7: Warranty time?
A7: 1 year
Q8: Do you provide Evaluation Kit for testing barcode scanner module?
A8: Yes, but you need to pay for EVK separately.
Q9: Product OEM?
A9: Yes, but it requiries the certain MOQ and the cost need to be added separately.
Q10: Customer service?
A10: Any questions of product after your receipt, please contact us,we'll reply you in 24 hours.
