| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE FCC ROHS |
| Model Number: | LV4500I Barcode Reader Module |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiation |
| Packaging Details: | package in carton; |
| Delivery Time: | 3-10 working days |
| Payment Terms: | Western Union, T/T, paypal |
| Supply Ability: | 1000 piece for a week |
| Name: | Barcode Reader Module | Experience: | 17-year Supplier Of Barcode Scanner |
|---|---|---|---|
| Interface: | USB | Weight: | 300g |
| Resolution: | 10mil | Power Consumption: | 1.75W(max) |
| High Light: | 2d barcode module,2d barcode engine |
||

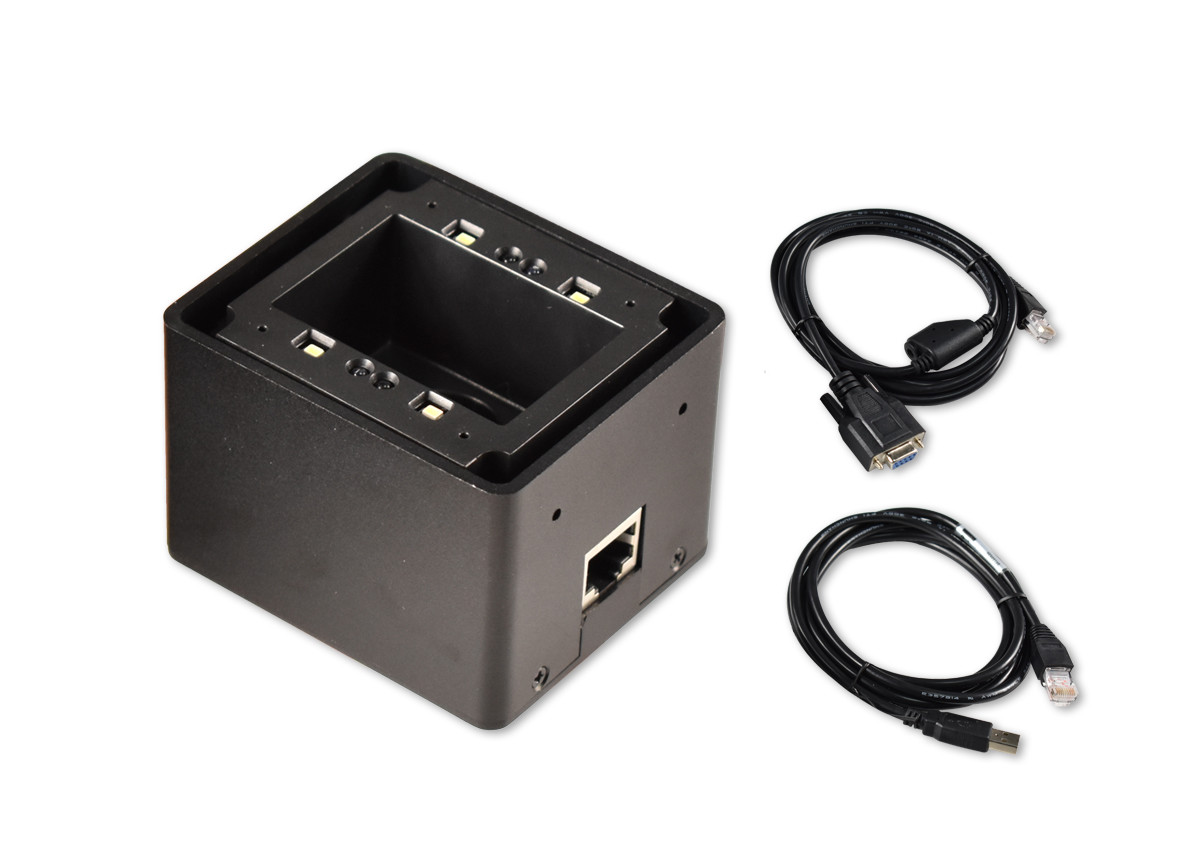

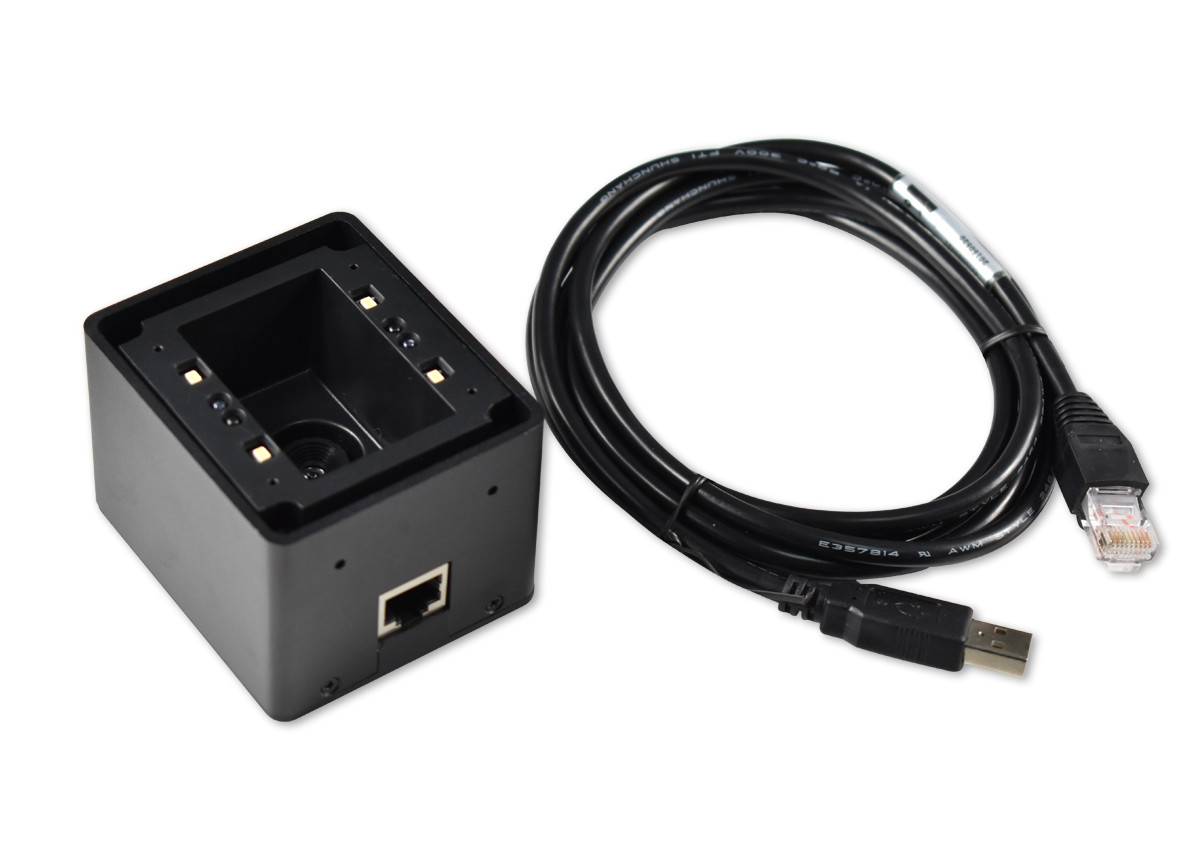

Barcode Reader Module qr barcode reader kiosk for Vending Machine, kiosk
| Model | LV4500I barcode reader |
| Interface | RS232 |
| Scan Rate | Up to 300 scans/sec |
| Image Sensor | 752×480CMOS |
| Decode Rate | 200 scans/sec |
| Resolution | 5mil |
| Light Source | White LED |
| Scan Window | 0 ~ 100,000 LUX |
| Scan Window | 38.3mm×60.4mm |
| Print Contrast Signal | ≥30% |
| Power Consumption | 1.75W(max) |
| Notification | Beep |
| Dimensions | 78.2L×67.2W×62Hmm |
| Weight | 300g |
| Operating Temperature | -20°C - +60°C |
| Humidity | 5% - 95% (non-condensing) |
| Certificates | FCC Part15 Class B, CE EMC Class B |
1. Digital barcode data capture
Capable of reading 1D and 2D barcodes off mobile phones.
2. Printed barcode data capture
Capable of reading 1D and 2D barcodes printed on paper.
3. Swift scanning
Delivers effortless, snappy and accurate reading of barcodes on various mobile phone LCD screens with different contrast ratios, colors and reflectances.
4. Easy to use
Simple configuration by scanning the programming barcodes provided in the user guide.
As one of the leading suppliers in IoT (Internet of Things), RAKINDA, oriented by clients demand, is devoted to the development and innovation of intelligent firmware products and enjoys rich experience and resources in IoT and the big data area.
