| Place of Origin: | China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE FCC |
| Model Number: | RD4500L |
| Minimum Order Quantity: | 1 PC |
| Price: | negotiation |
| Packaging Details: | packing in carton |
| Delivery Time: | 1-3 work days |
| Supply Ability: | 100 pcs per week |
| Type: | Long Range Barcode Scanner | Brand Name: | Rakinda |
|---|---|---|---|
| Scan Speed:: | 300 Scans/sec | Interface: | USB/ RS232 |
| Color: | Black | Processor: | Chip |
| Operating Temperature: | -10°C- +50°C | Storage Temperature: | -20°C- +60°C |
| High Light: | RS232 Digital Barcode Scanner,2D Digital Barcode Scanner,2D Barcode Scanner Module |
||

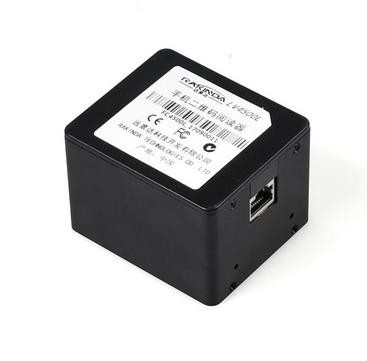

Long Distance RS232 Digital Barcode Scanner Module For Self Service Kiosk
4500L long range scanner-Specification.pdf
Products Introduction:
Shenzhen rakinda RD4500L fixed mount scanner 2D barcode scanner module, Now RD4500L long range scanner will be a good solution for you. Its cost is reasonable and affordable, while its low cost does not compromise its good performance in scanning mobile phone screen.
Products Features:
1. Snappy On-screen Barcode Capture
Armed with rakinda latest technology, the scanner excels at reading on-screen barcodes even when the screen is covered with protective film or set to its lowest brightness level.
2. Durable Metal Housing
The scanner uses a durable metal housing, making it ideal for self-service applications.
3. Outstanding Power Efficiency
The advanced NLDC technology incorporated in the scanner helps reduce the power consumption and prolong the service life of the device.
4. High-capacity Barcode Reading Capability
Equipped with a sizable scan window, the scanner has the ability to scan barcodes containing large amounts of data.
Application Scenarios:
Self-service cabinets used in e-commerce, express delivery services and smart homes; ATMs; kiosks; queue machines; lottery machines; certificate makers
| Model | RD4500L |
| Interface | RS232/USB |
| Processor | IOTC 0370 CHIP |
| Image Sensor | 752×480 CMOS |
| Scan Mode | Sense mode |
| Resolution | 10mil |
| Light Source | White LED |
| PCD | ≥30% |
| Power Consumption | 1.75W(max) |
| Notification | Beep |
| Dimensions | 82 mm(L) X 72mm (W) X 52mm(H) |
| Weight | 300g |
| Operating Temperature | -10°C- +50°C |
| Storage Temperature | -20°C- +60°C |
With over 18 years of experience in barcode scan technology industry area, Rakinda has achieved some important success by enormous effort. The scanner products are certified by CE, FCC and RoHS etc.
Rakinda sticks to "born to challenge" to deliver best products and services to our customers. Rakinda does the best to be your reliable business partner.
