| Place of Origin: | Shenzhen, Guangdong, China |
|---|---|
| Brand Name: | RAKINDA |
| Certification: | CE, RoHS |
| Model Number: | LV4700pro |
| Minimum Order Quantity: | 1 pcs |
| Price: | Negotiation |
| Packaging Details: | Normal craft paper and foam |
| Delivery Time: | Within 5 working days after receiving the balance |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 200PCS/Week |
| Interface: | RS-232, USB | Weight: | 2KG |
|---|---|---|---|
| Light Source: | White LED | Image Sensor: | 1280*800 CMOS |

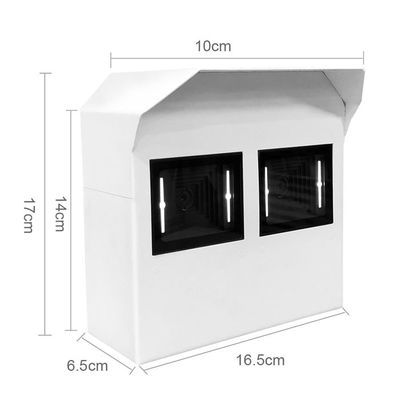

| Symbol Contrast: | 30% | Dimensions: | 6.5(W)×10-16.5(D)×14-17(H)cm(max.) |
| High Light: | 150cm Industrial Fixed Barcode Scanner,150cm QR Code Scanner,RS-232 Mobile Payment QR Scanner |
||
RS-232 150cm Industrial Fixed Barcode Scanner QR Code Scanner LV4700pro
Rakinda latest LV4700pro is long distance QR scanner, can fast scan phone screen barcode for parking lot or high-speed toll station payment, support USB and RS232 port, for bulk order, we can customize your logo.
Main features:
1: support scanning in dark environment
2: support scanning under strong light
3: Wide Windows design, fast reading phone screen
4: scanning distance range is 70cm-150cm
5: low power consumption
Product Parameters
| Product Name | Long Distance Mobile Payment QR Scanner | ||
| Performance | Image Sensor | 1280 * 800 CMOS | |
| Light Source | White LED | ||
| Indicator Light | Various colors are adjustable (default Alipay blue, WeChat green, other red) | ||
| Decoding Successful Prompt | Buzzer Output, Adjustable Sound | ||
| Symbologies | 2D | QR Code | |
| 1D | Code 128 | ||
| Resolution | ≥5mil | ||
|
Typical Depth of Field |
Alipay | 20mm-1500mm | |
| 20mm-1500mm | |||
| Symbol Contrast | 30% | ||
| Scan Angle** | Roll: 360°, Pitch: ±40°, Skew: ±45° | ||
| Field of View | Horizontal 40.4°, Vertical 25.9° | ||
| Mechanical | Interface | RS-232, USB | |
| Electrical | Power Adapter | 5V power adapter, with data cable to power the device | |
| Operating Voltage | 12 pin FPC horizontal socket: 3.3-5 VDC±5% | ||
| 4 pin DuPont socket USB interface: 3.3-5 VDC±5% | |||
| Dimensions | 6.5(W)×10-16.5(D)×14-17(H)cm(max.) | ||
| Weight | 2KG | ||
| Environmental | Operating Temperature | -40℃~+70℃ | |
| Storage Temperature | -40℃~+80℃ | ||
| Humidity | 5%~95% (non-condensing) | ||
| Ambient Light | 0~100000lux (natural light) | ||
| Accessories | Cable |
USB Used to connect a host device. |
|
