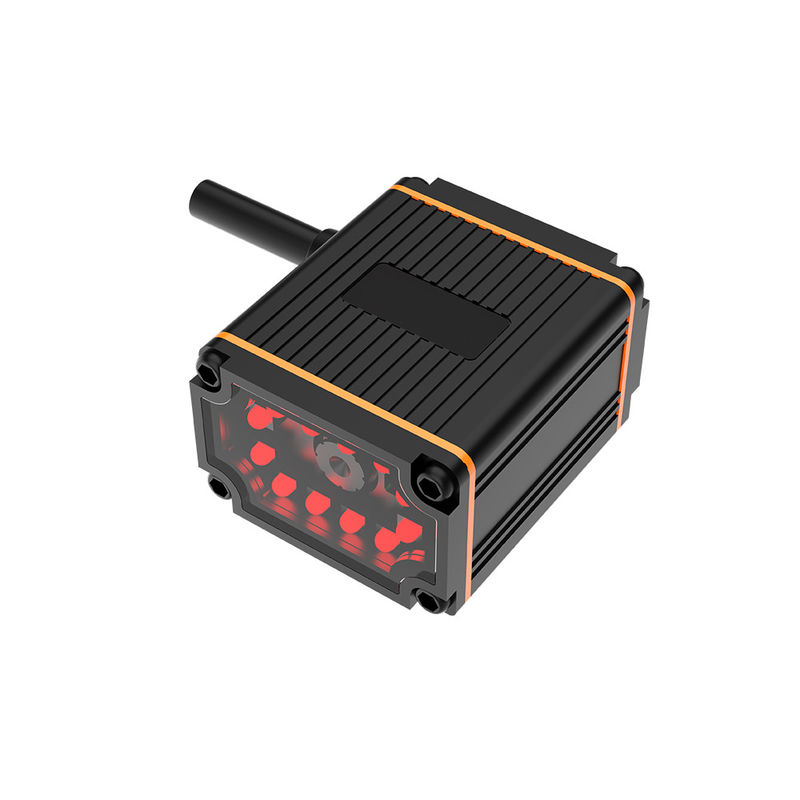

TCP IP USB Interface 2D Barcode Scanner Module PDF417 Data Matrix

Basic Information
Place of Origin: China
Brand Name: RAKINDA
Certification: CE, FCC, Rohs
Model Number: RK65
Minimum Order Quantity: 2pcs
Price: USD 275
Packaging Details: carton package
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 1000PCS PER MONTH
Interface: USB, Serial, TCP/IP Resolution: 1280*800
Voltage: 5-36VDC Sealing: IP65
Smallest Code: 2mm*2mm Moving Speed: 0.5m-1m/s
High Light:

USB Interface 2D Barcode Scanner Module

,

PDF417 2D Barcode Scanner Module

,

PDF417 qr reader module

1. RK65 Industrial 2D Fixed Mount Scanner Description

RK65 model 2D scanner has excellent performance in scanning various codes. Armed with smart illumination adjusting function, it can scan various code in demanding environment, such as code on reflection surface, curved surface, and color surface.



2. RK65 Industrial Level 2D Barcode Scanner Advantages

RK65 scanner has flexible I/O extensible interfaces. The scanner comes with I/O box. The scanner can realize 1 way out photoelectric coupled
isolate input (NPN / PNP /relay) and two ways out photoelectric coupled isolate output (Good ; NG). It can control the external device.

It is a low cost choice for replacement of Cognex or Dataman high end industrial scanners.



3. RK65 Barcode Scanner Module Specifications

Performance Image Sensor   1280*800
Illumination   High brightness red light/High brightness white light
Aiming   Green LED aiming
Symbologies 2D PDF417, Data Matrix, QR code, Chinese Sensible Code, AZTEC
1D Code128, EAN-13, EAN-8, Code39,UPC-A, Interleaved 2 of 5
Resolution   ≥3mil
Mechanical/Electrical Interface   RS232,USB (HID ; CDC),Ethernet(TCP/UDP/Modbus)
Working Current@5VDC   Working current 300 mA ±5%(typical), 450 mA ±5%(Max)
Standby current 100 mA ±5%
Operating Voltage   5-36 VDC
Dimensions   36(W)×43(D)×24(H)
Working Temperature   minus 20℃~to 50℃



TCP IP USB Interface 2D Barcode Scanner Module PDF417 Data Matrix 0

TCP IP USB Interface 2D Barcode Scanner Module PDF417 Data Matrix 1



4. RAKINDA Company Profile

Shenzhen Rakinda Technologies Co., Ltd, established in 2000, has been focusing on providing innovative IOT products for clients based on barcode scanner module, facial recognition and RFID technology. Our main products include LV30 series small 2D barcode scan engine, 4500 series fixed mount qr code scanner module for vending machine, turnstile and Kiosk, LV3000H fixed mount barcode scanner module for kiosk to scan paper printed code and MRZ on passport, as well as F2/F3 series facial recognition with temperature measure function devices. Our products enjoy a good reputation worldwide. Please kindly contact us to know more about products and company partnership.
