Raspberry Pi 1D CCD OEM Barcode Scanner Module Reading EAN JAN UPC

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE/ROHS/FCC
Model Number: LV12
Minimum Order Quantity: 1
Price: USD+30-45$+1pcs
Packaging Details: Paper Carton package
Payment Terms: T/T, Paypal, Credit card
Supply Ability: 1000+pcs+per week
Product Name: 1D Barcode Scanner Module Image Sensor: Linear CCD Sensor
Decode Rate: 200 Decodes/sec (default) Interface: TTL232/USB/RS232
Light Source: 632nm Visible Red Light Depth Of Field: 3-70cm
Work Voltage: DC3.3V-5V Dimensions: (L) 32.2 X (W) 44.15 X (H) 20mm
High Light:

OEM Barcode Scanner


1D CCD Barcode Scanner


raspberry pi barcode scanner

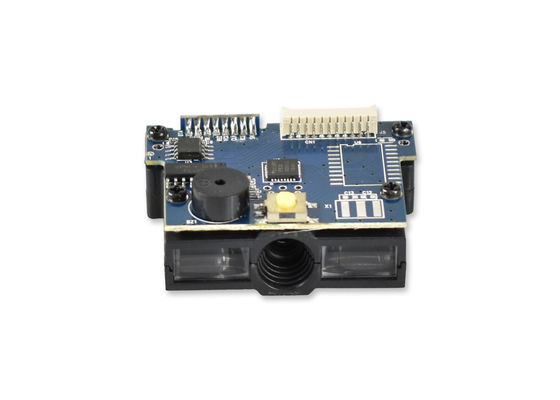

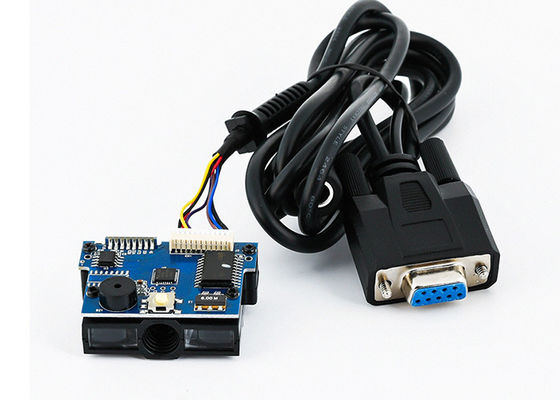

Raspberry Pi 1D CCD OEM Barcode Scanner Module Reading EAN JAN UPC


Low Cost Raspberry Pi 1D CCD OEM Barcode Scanner Module Reading EAN/JAN/UPC


LV12 barcode scanner description:

LV12 is a sort of utilitarian embedded barcode reading engine. Applying to Computerized CCD

Image Recognition System, it ensures the fast scanning and decoding accuracy on popular 1D barcodes.

This module is specialized to be integrated into OEM equipment to provide solutions for all kinds of lockers,
and medical facilities. Integrated core components guarantee the reliability and stability of the product, and decrease
the rate of failure of the scanner.


LV12 Scanner engine main features:

1: Linear barcode scanning: fast and easy to scan print code, paper code, screen code,
and have nice performance in scanning abrasion code, fuzzy code and even damaged code.
2: Multiple interfaces support: support USB,TTL-RS232,RS232,PS2,USB-COM.
3: USB fast transmission:to improve work efficiency, for better user experience.
4: Wide application area: apply to all kinds of lockers, MCU development and for medical and
scientific research


LV12 Scanner Engine Application scenarios:

Traditional self-service devices, like kiosk or vending machines.


Compatible OS: Android, Windows, Linux


LV12 scanner module Parameters:

Product name 1D barcode scanner module
Item number LV12
Interface RS232/ USB/ KB
Image Sensor Linear CCD Sensor
Processor Type C8051 compatible
Operating Freq. 24.5 MHz (Internal)
Scan Rate 100 scans/sec ±10%
Reading Distance 230mm@20mil/0.5mm, PCS90%
Print Contrast Ratio PCS45%@4mil/0.1mm
Resolution 5mil/0.127mm@PCS90%
Reading Angle Test Conditions : Code 39, 10mil/0.25mm, PCS90%
Pitch Angle 5°~70° (±5°)
Skew Tolerance 5°~60° (±5°)
Light Source Visible Red light 632nm LED
Ambient Light 5000 Lux Max.
Weight 17g
Dimensions 44(W)mm*30(D)mm*19.2(H)mm
Operating Temperature 0 ℃ to + 50 ℃
Storage Temperature -20 ℃ to + 70 ℃
Relative Humidity 20% - 95% ( non-condensing )
Decode Capability EAN-8, EAN-13, Codabar, CODE11, CODE 39, CODE 93, CODE128,China
Post, GS1-128, GS1 Limited, GS1 Omnidirectional, UPC-A, UPC-E,
ISBN/ISSN, ISBT , Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, MSI,
Plessey, ITF14.
Environmental parameters
Operating Temperature -20℃ to 50℃
Storage Temperature -40℃ to 70℃
Relative humidity 5% to 95%(Non-condensing)
Drop test 1.2meter,100times

Raspberry Pi 1D CCD OEM Barcode Scanner Module Reading EAN JAN UPC 0Raspberry Pi 1D CCD OEM Barcode Scanner Module Reading EAN JAN UPC 1Raspberry Pi 1D CCD OEM Barcode Scanner Module Reading EAN JAN UPC 2Raspberry Pi 1D CCD OEM Barcode Scanner Module Reading EAN JAN UPC 3Raspberry Pi 1D CCD OEM Barcode Scanner Module Reading EAN JAN UPC 4
