RD4500-20 USB Wiegand 2D Fixed Mount Barcode Scanner For Indoor Outdoor

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE FCC ROHS
Model Number: RD4500-20
Minimum Order Quantity: 1pcs
Packaging Details: 1pcs/box
Supply Ability: 500pcs per week
Barcode Scanner: 1D 2D QR Datamatrix PDF417 Material: Plastic
Interface: RS232 USB Weigand Output Name: Fixed Mount Barcode Scanner
Power Consumption: 1.75W (max) Light Source: White LED
High Light:

RD4500-20

,

2D Fixed Mount Barcode Scanner

,

Wiegand Fixed Mount Barcode Scanner

RD4500-20 USB Wiegand 2D Fixed Mount Barcode Scanner For Indoor Outdoor



Rakinda RD4500-20 USB RS232 Wiegand 2D Fixed Mount

Mobile QR Code Barcode Scanner for Access Control and Kiosk



The auto-adaptive scanning parameters of RD4500-20 fixed mount barcode scanner optimizes the ambient light immunity of up to 100,000 lux and create an extraordinary extended working range for easy scanning of barcodes from near to far. This feature helps customer complete barcode scanning task from indoor to outdoor applications, under any lighting condition.



Enclosed by an IP65-rated and ruggedized housing and integrated with an aggressive area image scan engine, RD4500-20 2D Square Imager Barcode Scanner is designed to enhance your efficiency and productivity for all kinds of applications. Due to its multiple mounting options and flexible design RD4500-20 Fixed Mount 2D Imager Barcode Scanner is suitable for both stand-alone and embedded applications. The built-in infrared sensor and high quality CMOS sensor also ensure your 2D barcode scanning tasks can be conducted under any lighting conditions.

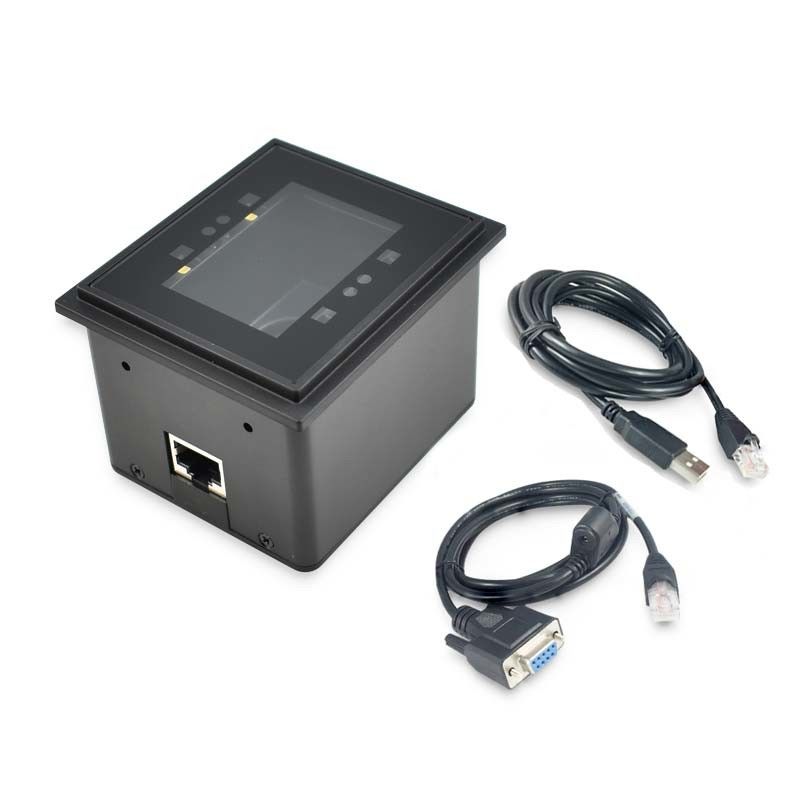

RD4500-20 Fixed Mount 2D Barcode Scanner, thanks in part to two extra mounting brackets that come with the product, is also capable of being mounted in various positions including straight, tilted, and right-angled direction, making it possible to fit into the most tightest space, preventing equipment re-design.

RD4500-20 Embedded 2D OEM Barcode Scanner Module to Scan QR code, DM, and PDF417.



Product Description

Rakinda RD4500-20 USB RS232 Wiegand 2D Fixed Mount Mobile QR Code Barcode Scanner ROHS Free Spare Parts 1-year 32 Bit Repair FCC

Product Specification:

Interface

RS232/ USB

Image Sensor

752 x 480CMOS

Symbologies

2D: PDF417, Data Matrix, QR Code

1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey

Precision

5 mil

Light Source

White LED

Scan Window

38.3mm*60.4mm

Depth of Field*

40mm-430mm

Print Contrast Signal

≥ 30%

Illumination

0 ~ 100,000 LUX

Power Consumption

1.75W (max)

Power Adaptor

Output: DC5V, 0.5A, Input: AC100~240V, 50~60Hz

Weight

300g

Dimensions

79mm(L) X 68mm (W) X 56mm(H)

Certification

FCC Part15 Class B, CE EMC Class B



Rakinda RD4500-20 USB RS232 Wiegand 2D Fixed Mount Mobile QR Code Barcode Scanner ROHS Free Spare Parts 1-year 32 Bit Repair FCCRakinda RD4500-20 USB RS232 Wiegand 2D Fixed Mount Mobile QR Code Barcode Scanner ROHS Free Spare Parts 1-year 32 Bit Repair FCCRakinda RD4500-20 USB RS232 Wiegand 2D Fixed Mount Mobile QR Code Barcode Scanner ROHS Free Spare Parts 1-year 32 Bit Repair FCCRakinda RD4500-20 USB RS232 Wiegand 2D Fixed Mount Mobile QR Code Barcode Scanner ROHS Free Spare Parts 1-year 32 Bit Repair FCCRakinda RD4500-20 USB RS232 Wiegand 2D Fixed Mount Mobile QR Code Barcode Scanner ROHS Free Spare Parts 1-year 32 Bit Repair FCCRakinda RD4500-20 USB RS232 Wiegand 2D Fixed Mount Mobile QR Code Barcode Scanner ROHS Free Spare Parts 1-year 32 Bit Repair FCC

Application Case:

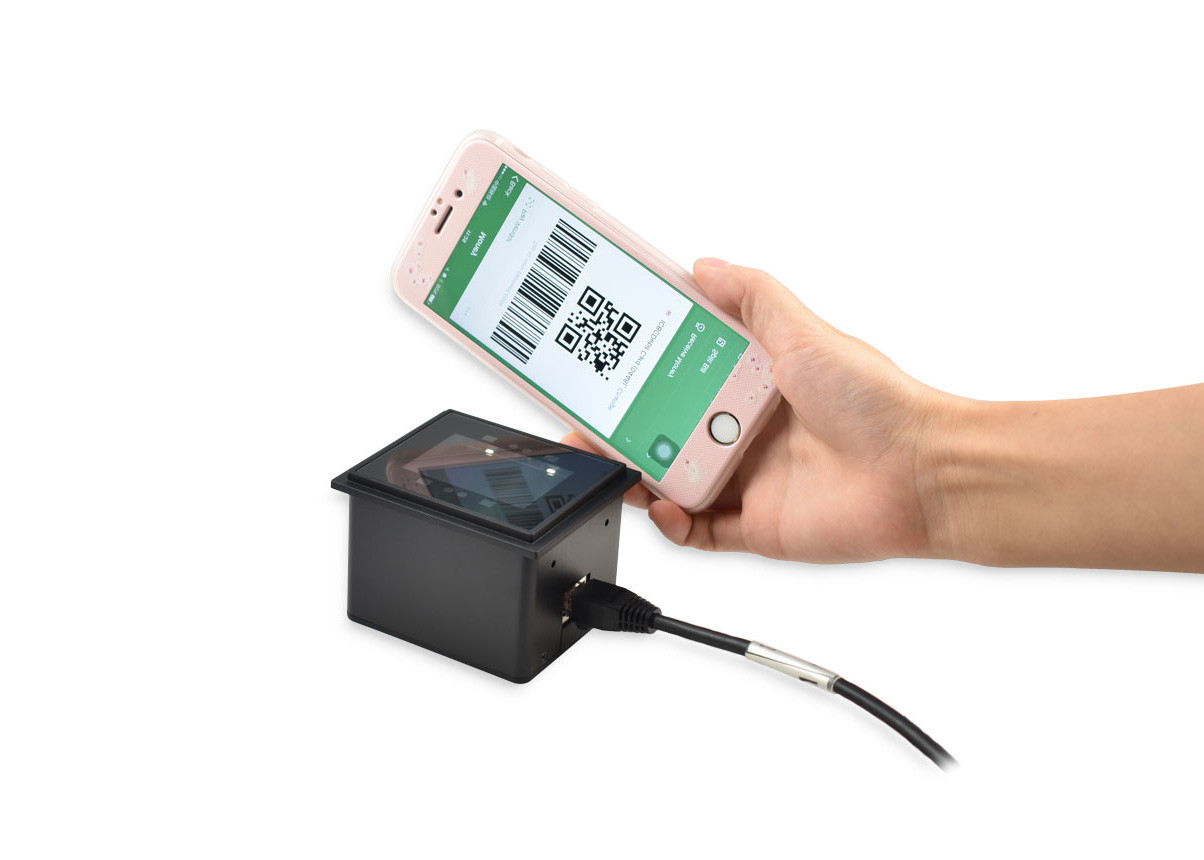

RD4500-20 fixed mount barcode scanner is designed primarily for such applications as electronic tickets/coupons, mobile marketing, mobile payment, kiosk, turnstile, and office automation, the series fixed mount barcode scanner is able to read barcodes on paper and mobile phones.

Compatible OS: Windows, Linux, Android, Arduino, Raspberry Pi. Plug and Play


Projects: Turnstile, Kiosk, ATM, Payment Terminal, Ticketing Validator, etc.

Rakinda RD4500-20 USB RS232 Wiegand 2D Fixed Mount Mobile QR Code Barcode Scanner ROHS Free Spare Parts 1-year 32 Bit Repair FCC
