| Place of Origin: | China |
|---|---|
| Brand Name: | Rakinda |
| Certification: | CE,FCC, ROHS |
| Model Number: | RD800 |
| Minimum Order Quantity: | 1PCS |
| Price: | Negotiation |
| Packaging Details: | Normal craft paper and foam |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs/month |
| Highlight: | LCD Monitor Face Recognition Thermometer Terminal,32 Inch Face Recognition Thermometer Terminal,touchless temperature screening kiosk |
||
|---|---|---|---|

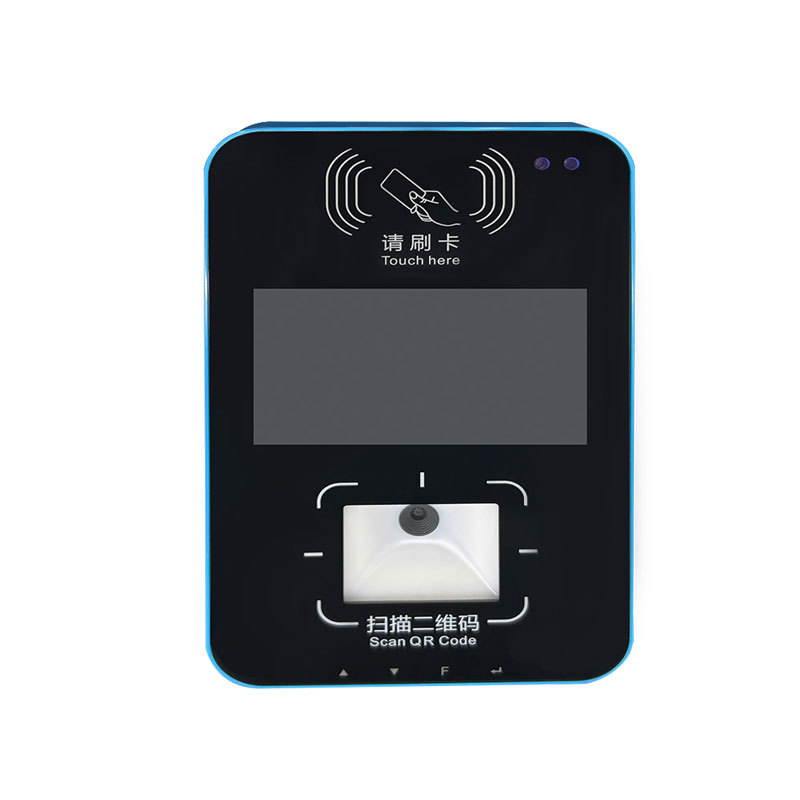

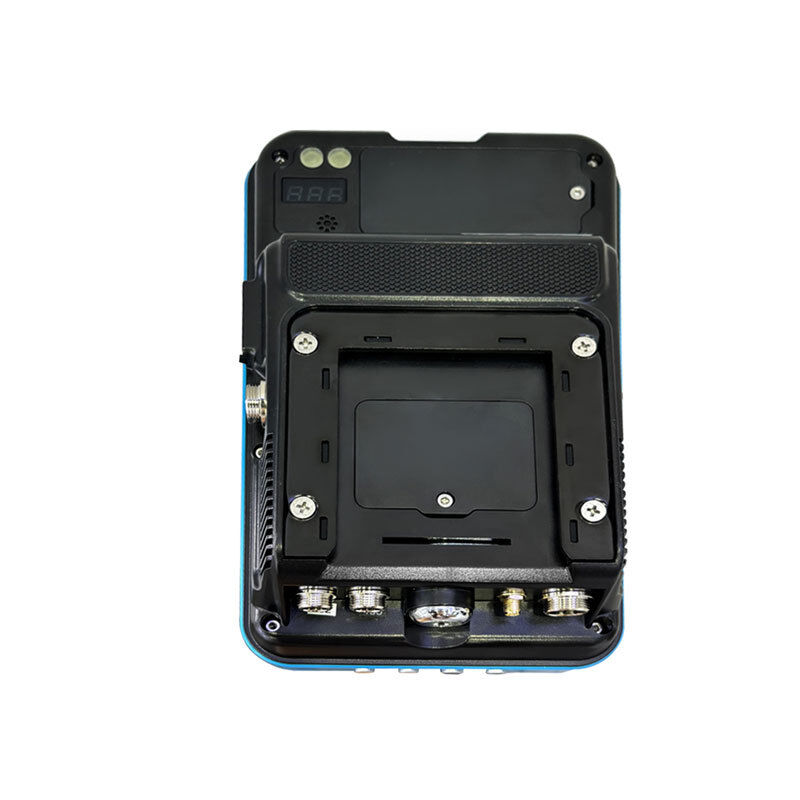

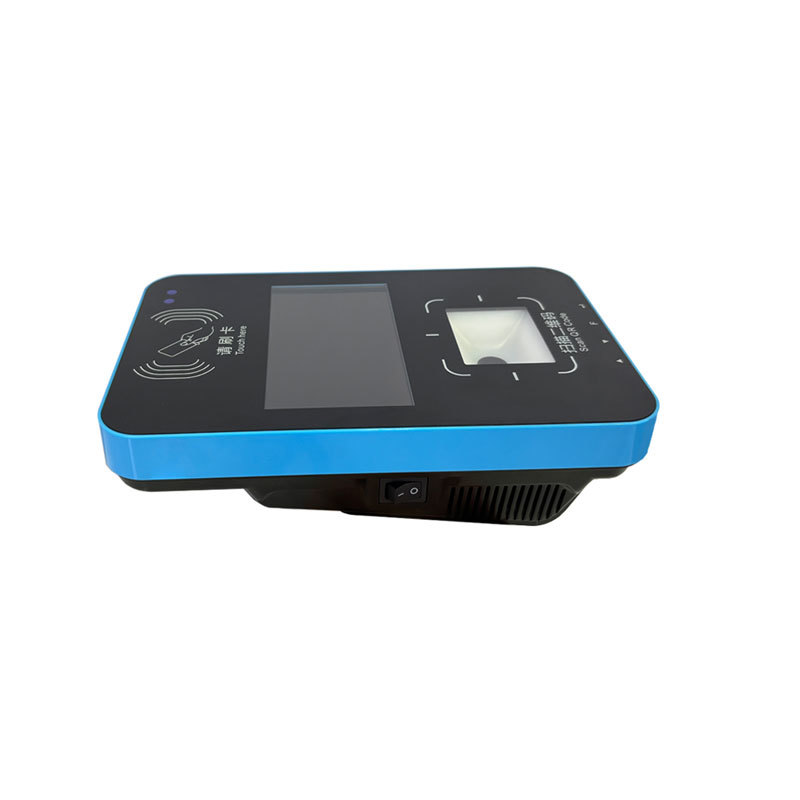

Search top-rated IP54 rugged transit POS — Rakinda RD800 onboard ticketing machine engineered to withstand harsh vehicle operation environments for long-term public transport deployment. This heavy-duty bus card reader features an IP54 dustproof & waterproof shell with 9–36V wide DC voltage protection, operating reliably in extreme temperatures ranging from -20°C to +70°C while resisting continuous road vibration and heat buildup. Built with ultra-high industrial reliability: over 1 million card read-write cycles and 100,000 durable button presses eliminate frequent maintenance costs for transit fleets. The compact, lightweight design (only 1000g) supports fast wall/mount bracket installation with minimal wiring work, ideal for retrofitting old bus fare collection systems. Integrated RTC backup battery, dual status indicators, built-in speaker and buzzer complete the human-machine interaction system, while industrial-grade serial communication ports ensure seamless data linkage with backend transit management platforms.
Parameters of Integrated Biometric Validator
| Basic module | |
| Processor | Eight-core processor (4 Cortex-A53 2.0GHz cores + 4 Cortex-A53 1.5GHz cores) |
| Memory | RAM: 2GB / ROM: 32GB (non-volatile memory ≥ 8KB) |
| Operating System | |
| Communication network | Supports 4G LTE Full Network Support |
| WIFI/ PDA | IEEE 802.11 b/g/n 2.4G, supports Bluetooth 4.0 |
| Positioning | Supports GPS/Beidou dual-mode positioning |
| Display screen | 5-inch color LCD screen with a resolution of 720*1280 |
| Slot extension | Supports 4*PSAM cards and 1*SIM card |
| Payment module | Card reader: Supports ISO 14443 TYPE A/B, 2.4G RF-SIM (optional),and ID card (optional) |
| Scan the QR code (QR 1/2, Micro) with 360-degree rotation and ±40° tilt recognition | |
| Interfaces | |
| Serial interface | 1* RS232 (Ŏ12mm) small keyboard, 1* RS232 (Ŏ16mm), 1* RS485/232 (Ŏ12mm) |
| USB | 1xUSBport(on the side) |
| Human-computer interaction | 4 function keys (Up, Down, Back, Confirm), 2 status indicators, 1 three-digit display |
| Audio output | 1* Speaker (4Ω 3W), 1* Buzzer |
| Power supply specifications | |
| Power input | DC 9-36V (Ŏ12mm aviation connector) |
| Clock battery | RTC battery capacity:≥210mAh |
| Installation and Environment | |
| Size | 235 (L) * 145 (W) * 77 (H) mm(without bracket) |
| 235 (L) * 145 (W) * 118.7 (H) mm (with fixed bracket) | |
| Weight | Approximately 1000 grams |
| Work environment | Temperature: -20°C to +70°C; Humidity: 15% to 95% RH (no condensation) |
| Product Property | |
| Reliability | IP54; ≥1 million read/writeoperations; over 100,000 button presses |
