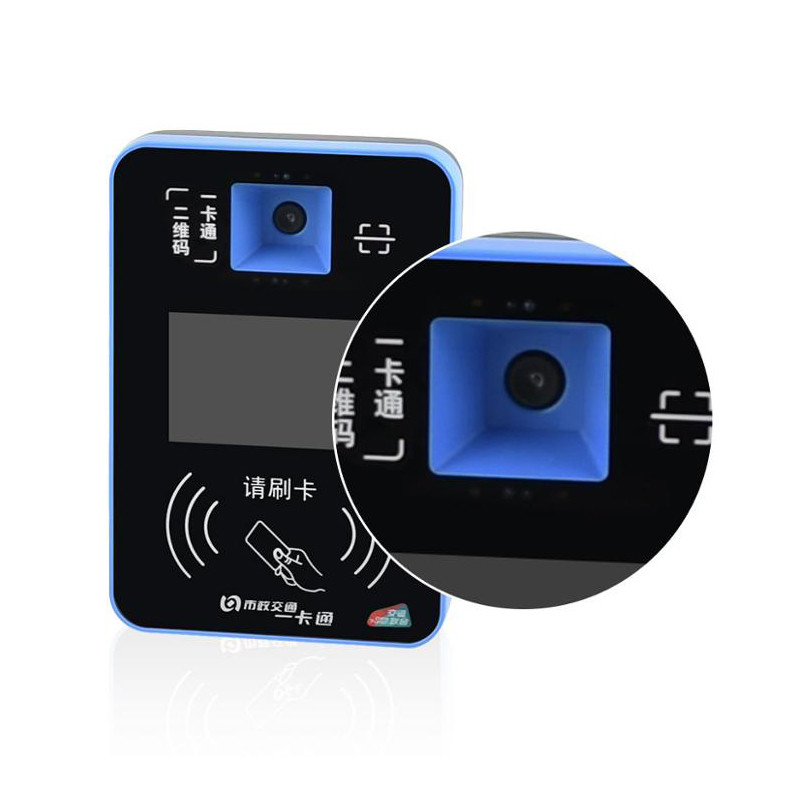

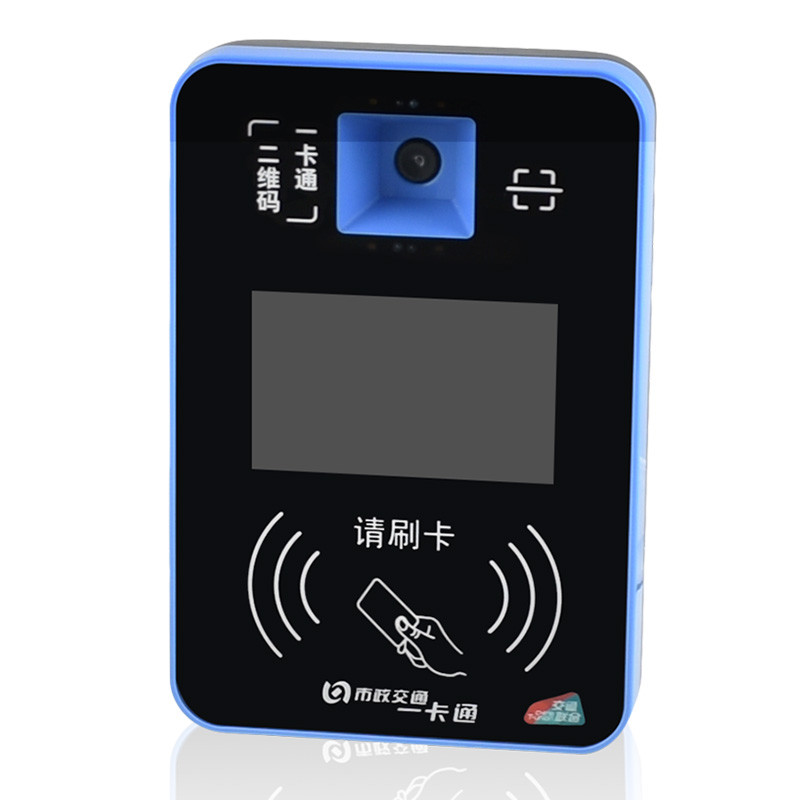

NFC Card Reader QR Code 120MHz RS485 2D Barcode Scanner

Basic Information
Place of Origin: Shenzhen, Guangdong, China
Brand Name: RAKINDA
Certification: CE, RoHS
Model Number: RD300
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Normal craft paper and foam
Delivery Time: Within 5 working days after receiving the balance
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 200PCS/Week
Processor: 32 Bit ARM, 120MHz Display: 5 Inch TFT Color Display
Interface: RS232, RS485 Memory: 64Kb FRAM. 8Mb+1Gb DataFlash
Product Size: 233mm×170mm×64mm
High Light:

RS485 2D Barcode Scanner

,

120MHz 2D Barcode Scanner

,

NFC Barcode Qr Code Scanner

RD300 NFC Access Control Card Reader 2D Barcode QR Code Scanner



Barcode QR Code Scanner Functions

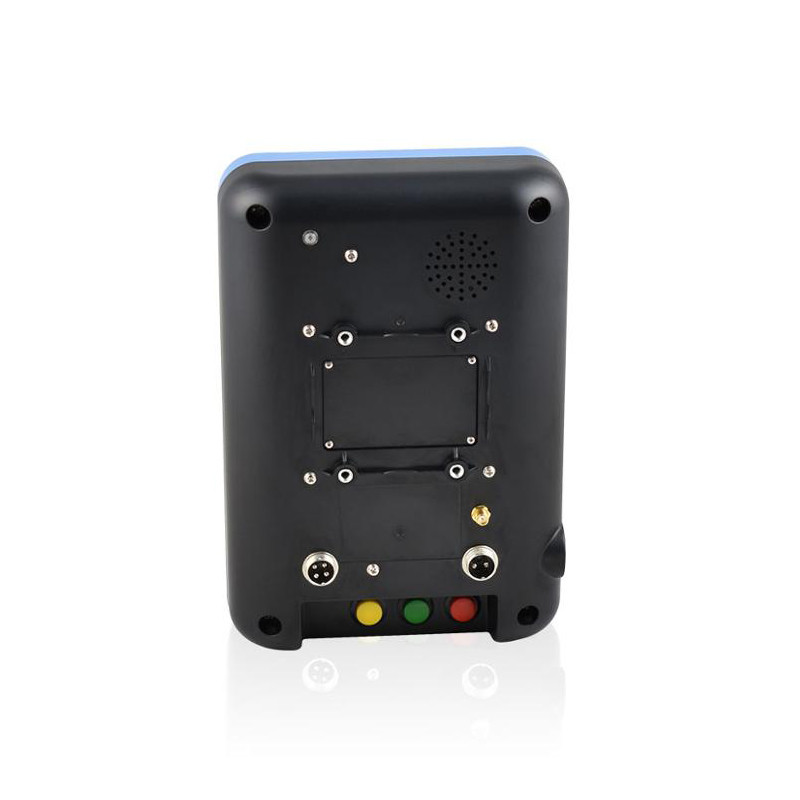

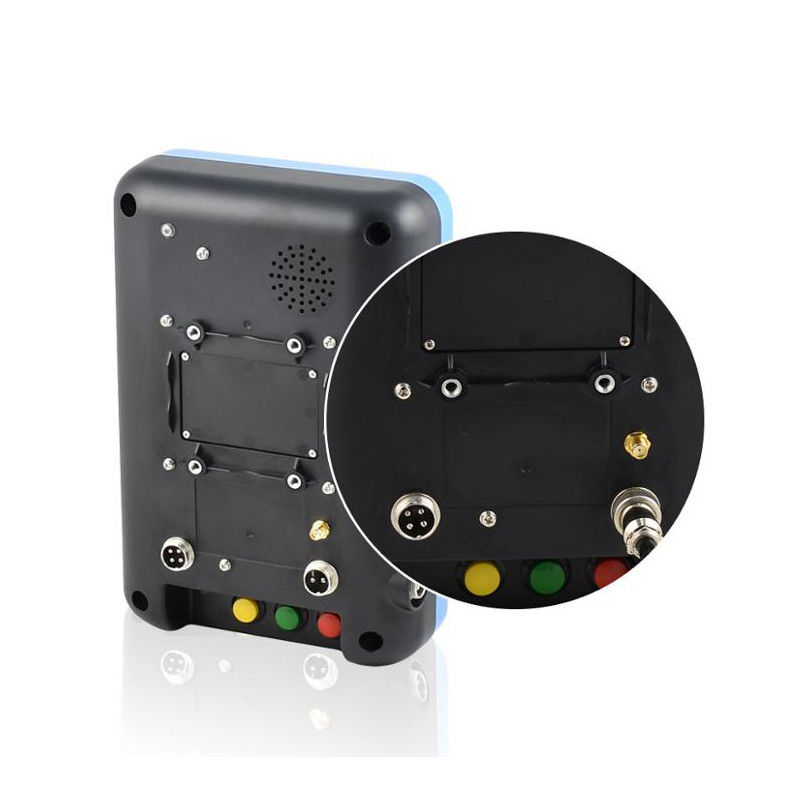

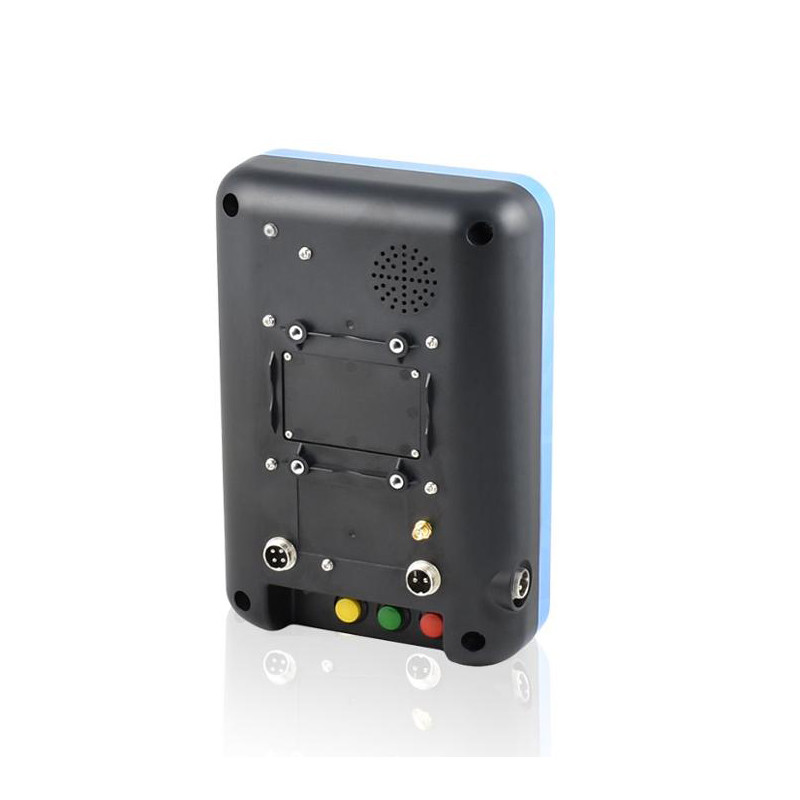

A.Burning program

After power is off, press button 1; turn on power and it will enter burning program interface
B.Burning voice file
After the machine is working normally, pressing button 1 for a long time, and it will enter into voice file burning interface
C.Inquiry
After the machine is working normally, press the button 2 for a short time, you can inquire the POS info, transaction records etc.
D.Rate, driver card and ticket seller card
After the machine is working normally, press the button 3 for a long time and then you can set the rate, read the driver or ticket seller card.
(Note: the functions of three buttons can be customized)



Product Parameters

Items
Processor 32 bit ARM, 120MHz
Memory 64Kb FRAM. 8Mb+1Gb DataFlash



Contact less Card Scanning

1D, 2D barcode payment; support ISO14443 card, CPU card such as Mifare 1 S50/S70, MifarePro, IC card, 13.56 sim card etc.
Sim Support four ISO7816 sim cards
Voice It can store 265 pcs of voice, and the voice can be updated through software and no need to dismount the machine.
Display 5 inch TFT color display
Power 9V-36V,it has protection for over-voltage, over-current, converse connection, under-voltage.
Interface RS232, RS485
Wireless Communication (optional)

TDD-2TG/FDD-LTE/wcomA/TD-SCDMA/GSM/GPRS/

EDGE/WIFI/zigbee

RD300 Bus Machine Manual.pdf



NFC Card Reader QR Code 120MHz RS485 2D Barcode Scanner 0NFC Card Reader QR Code 120MHz RS485 2D Barcode Scanner 1NFC Card Reader QR Code 120MHz RS485 2D Barcode Scanner 2NFC Card Reader QR Code 120MHz RS485 2D Barcode Scanner 3NFC Card Reader QR Code 120MHz RS485 2D Barcode Scanner 4NFC Card Reader QR Code 120MHz RS485 2D Barcode Scanner 5NFC Card Reader QR Code 120MHz RS485 2D Barcode Scanner 6NFC Card Reader QR Code 120MHz RS485 2D Barcode Scanner 7

User Notice
A.Operate with care;
B.Do not touch power cable when your hands are wet;
C.Do not plug out the power cable brutally;
D.Do not use damaged or loosen power cable and power outlet;
E.Do not drag the antenna



Maintenance
Toubleshooting

Can not scan the card successfully: turn off the machine and turn on again; try to scan the employee card. If not solved, contact the manufacturer;
Successful scanning but no beep: contact manufacturer for repair;
Scan not scan the 2D code: bring the 2D code closer to the scan window.


NFC Card Reader QR Code 120MHz RS485 2D Barcode Scanner 8NFC Card Reader QR Code 120MHz RS485 2D Barcode Scanner 9NFC Card Reader QR Code 120MHz RS485 2D Barcode Scanner 10NFC Card Reader QR Code 120MHz RS485 2D Barcode Scanner 11
