| Place of Origin: | China |
|---|---|
| Brand Name: | RAKINDA |
| Certification: | CE,FC,ROHS |
| Model Number: | S900 |
| Minimum Order Quantity: | 1PCS |
| Price: | $38~35USD/pcs |
| Packaging Details: | A box contains a scanner and accessory USB/RS232 cable |
| Delivery Time: | 3 to 5 days |
| Payment Terms: | T/T, D/P,Paypal |
| Supply Ability: | 20000pcs/Month |
| Type: | QR Code Scanner Module | Scan Element Type: | CMOS |
|---|---|---|---|
| Scan Speed: | 200 Scans/s | Interface Type: | USB,RS232 |
| Model Number: | S900 | Scanning Light Source: | Natural Light+LED |
| Highlight: | HID KBW QR Code Scanner,HID KBW square box code scanner,PDF417 QR Code Scanner |
||

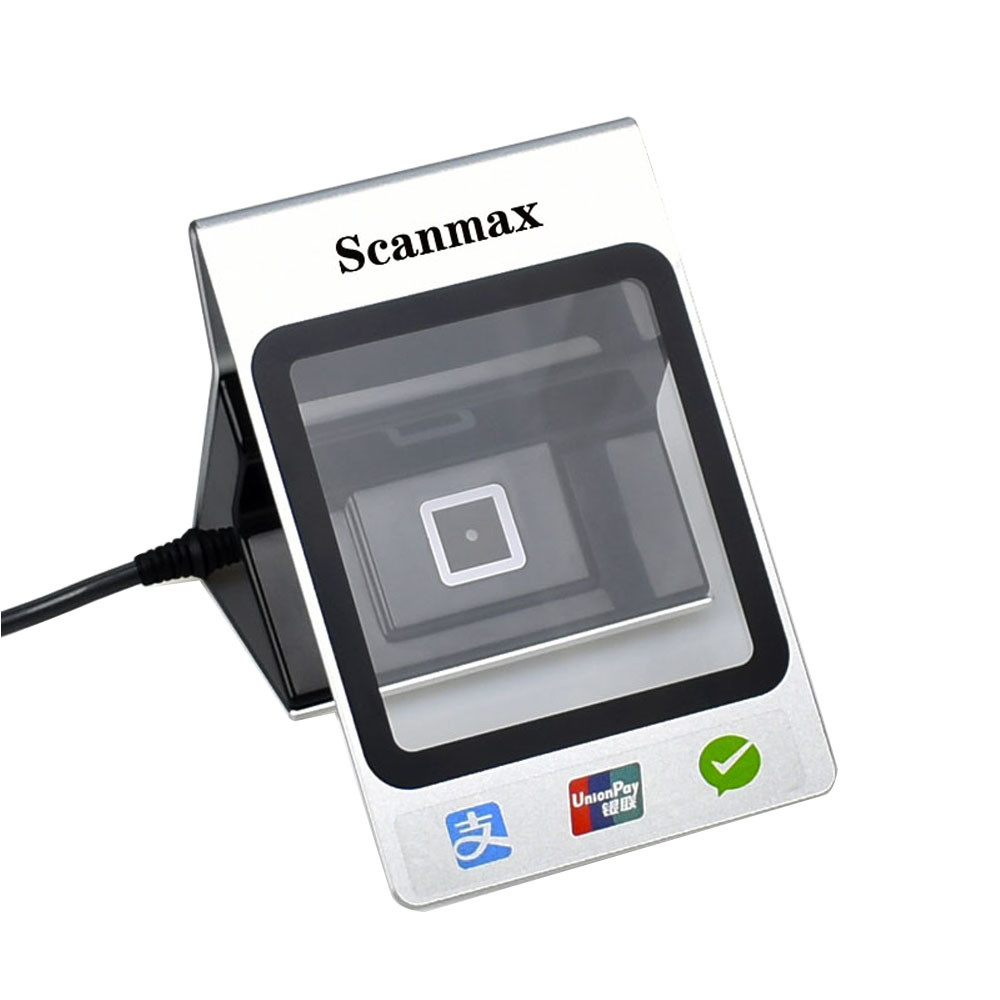

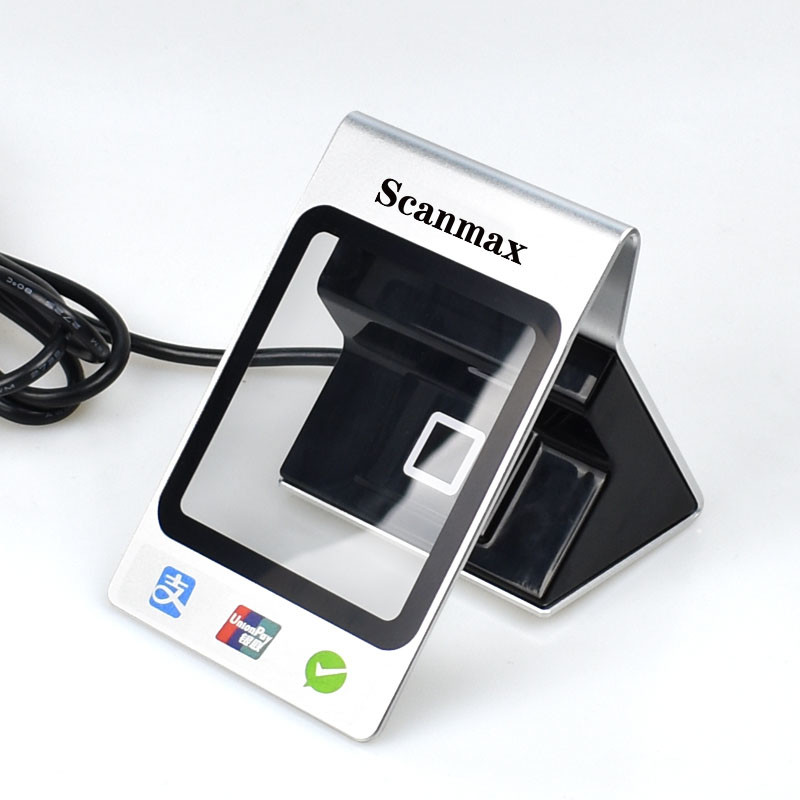

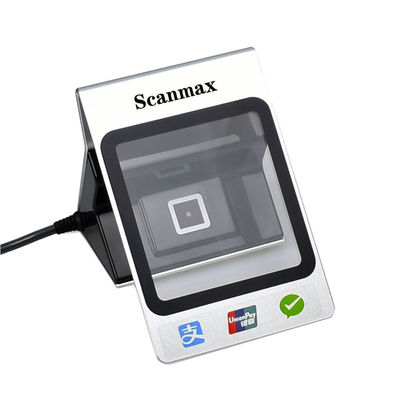

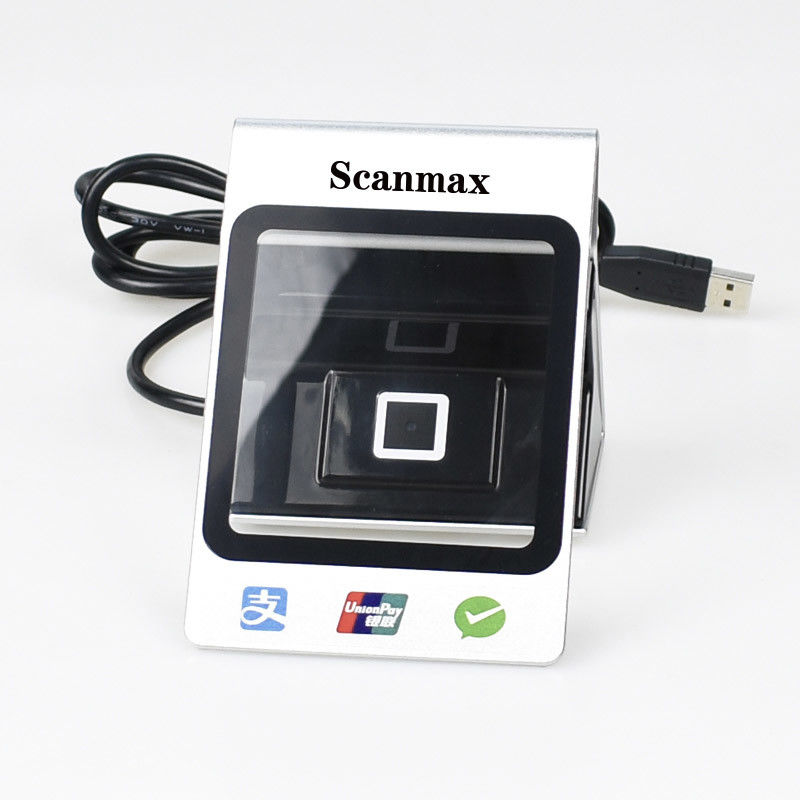

Desktop Payment HID KBW QR Square Box Code Scanner Alipay 2D Code Reader
QR Code Scanner Features:
1. It can read both printed and phone screen 1D/2D barcodes.
2. Designed with IR sensor, it can read even in total darkness.
3. White LED light source protects users' eyes.
4. Instant reading and decoding within 0.3 sec.
5. Outstanding Power Efficiency.
6. The advanced technology incorporated in the scanner helps to reduce the power consumption and prolong the service life of the device.
7. USB/TTL232 Cable connector.
8. It has metal housing and it's industrial grade IP54.
9. It reads close printed or screen bar codes with 5 to 10mil precision.
QR Code Scanner Parameters:
| Performance | |||
| Processor | IOTC 0370 CHIP | ||
| Image Sensor | 640×480 CMOS | ||
| Interface | RS232 / USB 1.1 (HID-KBW, HID-POS) | ||
| Symbologies | 2D | PDF417, Data Matrix, QR Code | |
| 1D | EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey | ||
| Scan Mode Type | Sense mode | ||
| Resolution | 10mil | ||
| Light Source | White LED | ||
| PCS | ≥30% | ||
| FOV | Diagonal: 85°, Horizontal: 63.7°, Vertical: 70° | ||
| Mechanical/Electrical | |||
| Power Consumption | 1.75W (max.) | ||
| Notification | Beep | ||
