TTL232 Fixed Mount Barcode Scanner For Light Bus Payment Terminal

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE, FCC,Rohs
Model Number: LV4300
Minimum Order Quantity: 2pcs
Price: USD 75
Packaging Details: cartoon package
Delivery Time: 3-5 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 3000pcs per month
Name: Industrial Fixed Barcode Scanner Interface: USB Or TTL232
Scan Mode: Auto Sense Beep: Support
Customized: Support Stock: New
High Light:

TTL 232 Fixed Mount Barcode Scanner

,

PDF417 Fixed Mount Barcode Scanner

,

TTL 232 industrial fixed barcode scanner

TTL232 Fixed Mount Barcode Scanner For Light Bus Payment Terminal



1. Product Description

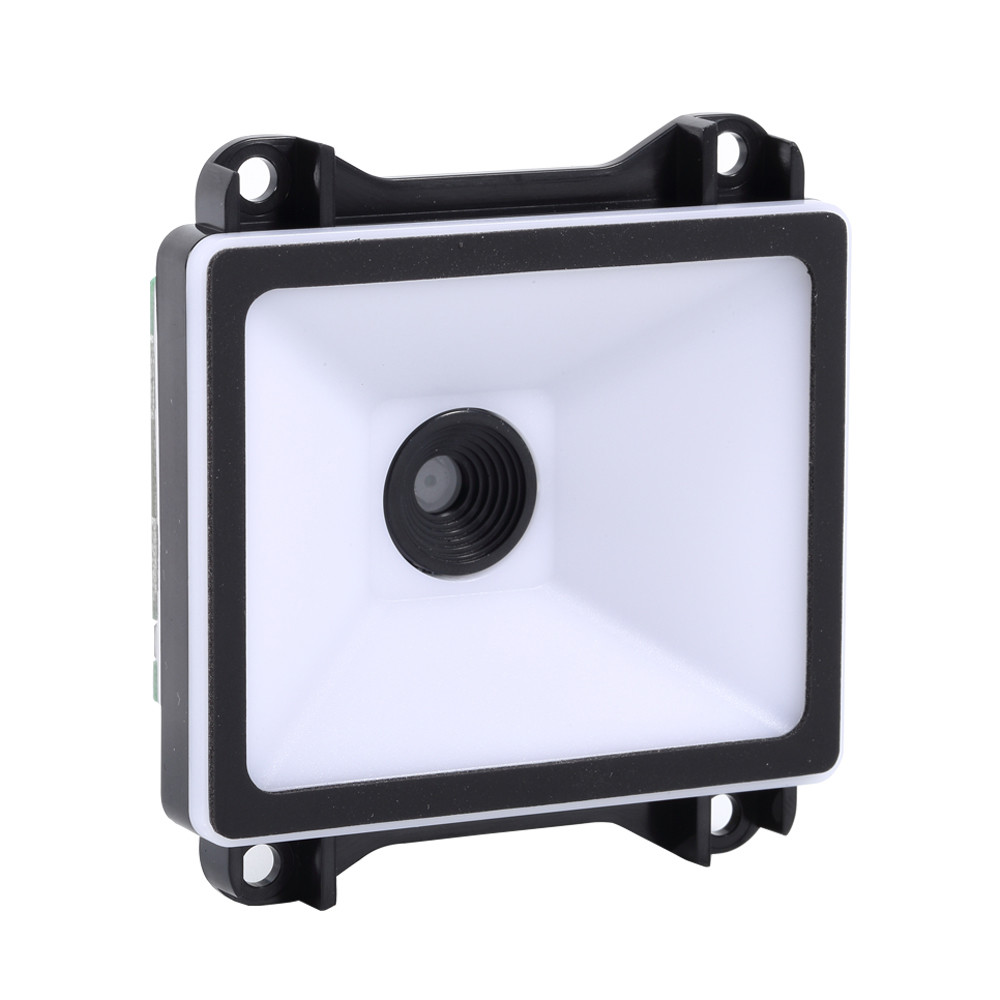

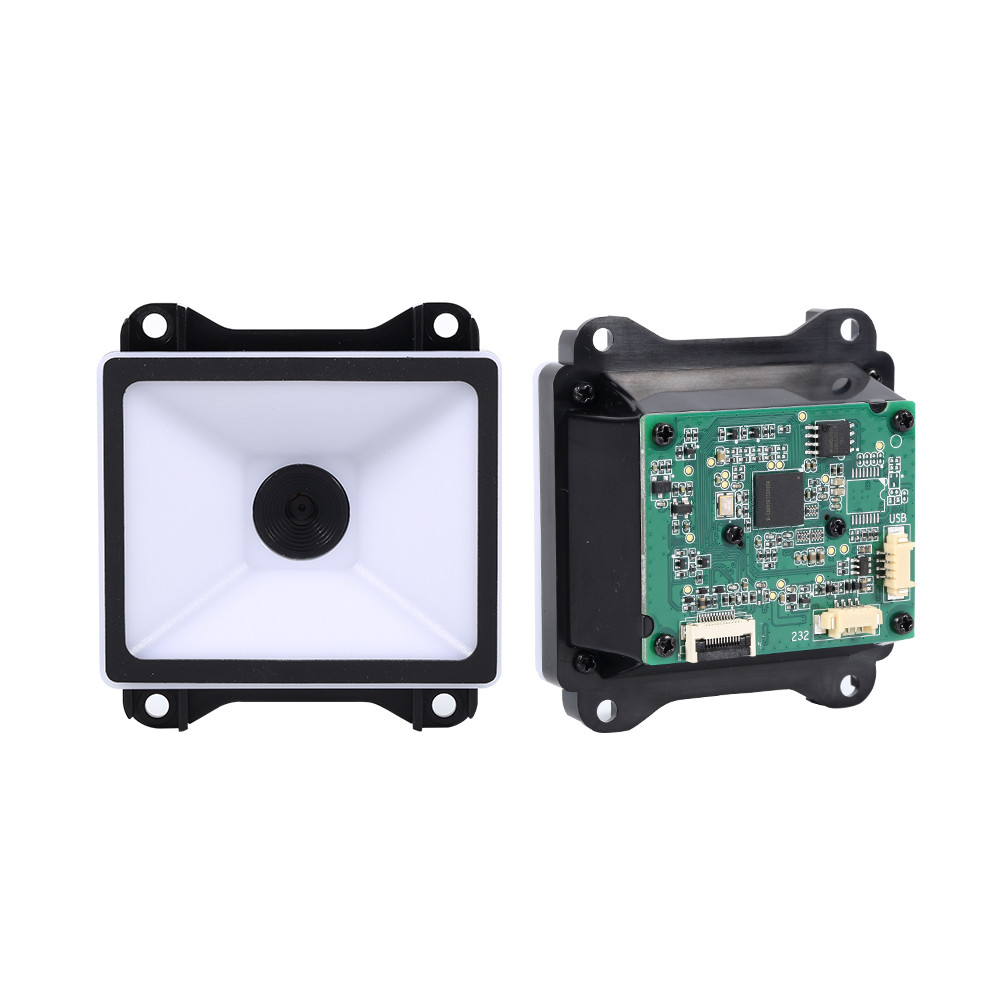

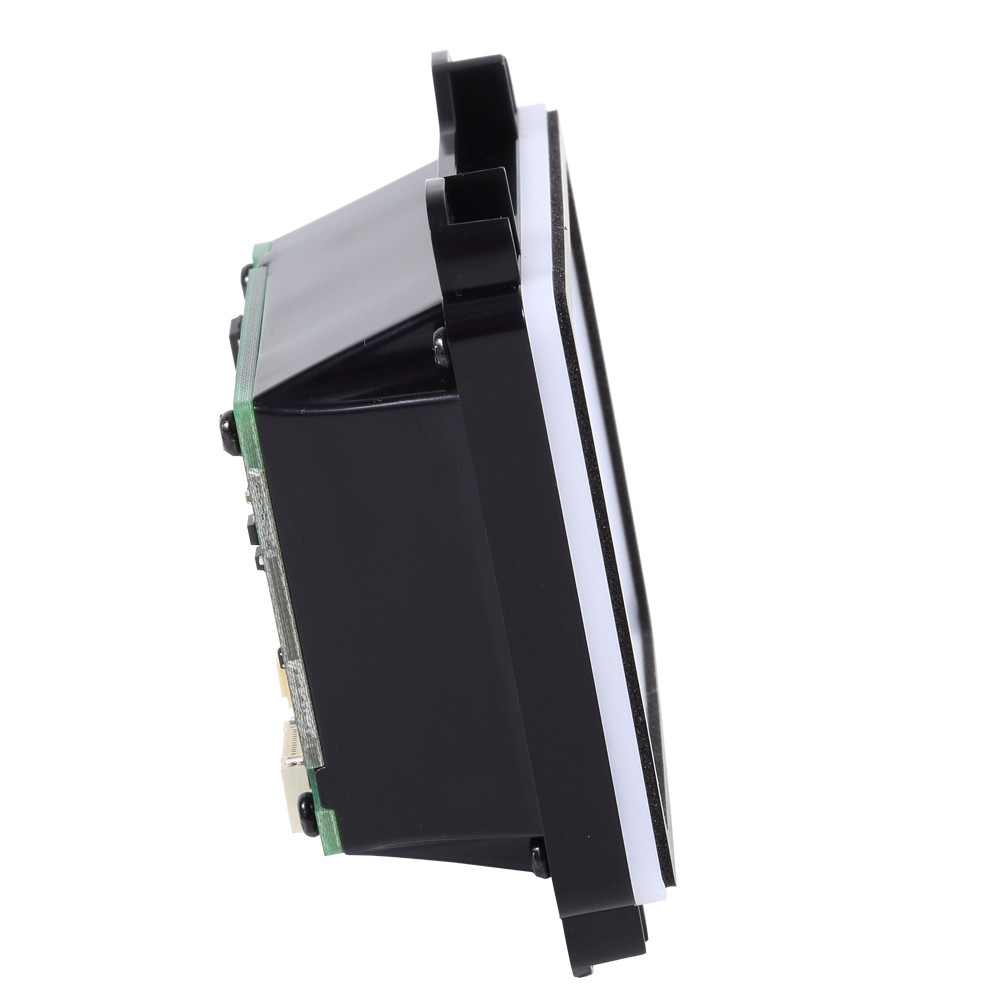

LV4300 USB cable fixed qr code scanner module can easily scan code on phone screen, cards and plastic. It is widely used in bus payment kiosk, self-service Kiosk, ATM etc.

Now it has successful application in many application project. Bus payment terminal is an important application area. Because qr code is getting more and more popular for traffic. People no longler need to carry coins or IC cards when taking buses or Metro. The application of qr code scanner in traffic greatly improve people' living quality and it is a mark of time changing also.

TTL232 Fixed Mount Barcode Scanner For Light Bus Payment Terminal 0

TTL232 Fixed Mount Barcode Scanner For Light Bus Payment Terminal 1



2. LV4300 Fixed QR Code Scanner Feature

2.1 Fast scanning speed;

2.2 Support USB, TTL232 interfaces, easy for integration

2.3 Small size and light weight, easy for installation

3. LV4300 Barcode Scanner Module Specifications

Performance Image Sensor   640*480
Illumination   White LED
Operating Temperature   -40°C to 60°C
Symbologies 2D PDF417, Data Matrix, QR code, Chinese Sensible Code
1D Code128, EAN-13, EAN-8, Code39,UPC-A, Interleaved 2 of 5
Resolution   ≥5mil
Mechanical/Electrical Interface   TTL-232, USB
Rated Power Consumption   1103mW (typical)
Operating Current   335mA (typical), 479mA (max.)
Dimensions   61.5(W)×65.5(D)×31.9(H)mm (max.)
Weight   33g



4. LV4300 Barcode Scanner Module Applications

It is widely used in bus payment terminal, metro turnstile, kiosk, ATM etc

5. LV4300 qr code scanner advantages

5.1 Fast Scanning speed

5.2 Easy scanning phone screen code

5.3 Rakinda can provide oen and customized service based on strong software and hardware team

5.4 Low cost due to large quality stock and stable sales
