Self Machine OCR MRZ LV3000U Fixed Mount Barcode Scanner

Basic Information
Place of Origin: China
Brand Name: Rakinda
Certification: CE FCC Certificate
Model Number: LV3000U
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: Normal craft paper and foam
Delivery Time: Within 5 working days after receiving the balance
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 200PCS/Week
Image Sensor: 1280*800CMOS Resolution: 3mil
Symbologies: 1D 2D OCR MRZ Aztec Light Source: White LED Laser Diode Or Green LED
Reading Mode: Sense Mode, Continuous Mode, Level Mode,Pulse Mode Certificate: CE FCC ROHS
High Light:

LV3000U Fixed Mount Barcode Scanner


OCR Fixed Mount Barcode Scanner


OCR MRZ Barcode Scanner

Self Machine OCR MRZ LV3000U Fixed Mount Barcode Scanner


LV3000U 1D 2D QR Datamatrix OCR MRZ Passport Reader for Self Machine

Auto Senser Fast Decoding LV3000U QR Scanner Product introduction:

LV3000U fixed mount scanner adopts a unique fully integrated design, which fully integrates image acquisition, lighting aiming, etc., which is small, light and powerful. Suitable for use in products embedded in various industries, such as cash registers, data collectors, meter reading equipment, ticket checking machines, etc.


2D CMOS Fixed Mount QR Scanner LV3000U Features:
1. IR/Light Triggers
2. Automatic Exposure Control (AEC)
3. IP54-sealed Housing
4. Unmatched Reading Performance
5. Highly Visible Laser Aimer
6. 1.5m Drop Resistance


Product Parameters

Product name

Fixed Mount 2D Barcode Scanner
Item number LV3000U
Interface RS232/ USB
Image Sensor 1280x 800CMOS

2D: PDF417, Data Matrix, QR Code, Aztec, CSC, Maxicode, Mircro QR, Micro PDF417, GM, Code One, etc.

Codabar, Code 128, Code 93, ITF-6, ITF-14,
Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5,
Matrix 2 of 5, GS1 Databar (RSS-Expand,
RSS-Limited, RSS-14), Code 39, Code 11,
MSI-Plessey, Plessey

Precision 3 mil
Light Source

White LED

Laser Diode or green LED

Scan Mode Sense Mode, Continuous Mode, Level Mode,Pulse Mode
Drop 1.5m
Power Consumption 1622mW (Typical)
Weight 75g
Dimensions 41.5 mm(L) X 49.5mm (W) X 24.3mm(H)
Notification Beep, LED Indicator
Operating Temperature -20 ℃ to +60 ℃
Storage Temperature -40 ℃ to +70 ℃
Humidity 5% - 95% ( non-condensing )
Sealing IP54
Certification FCC Part15 Class B, CE EMC Class B

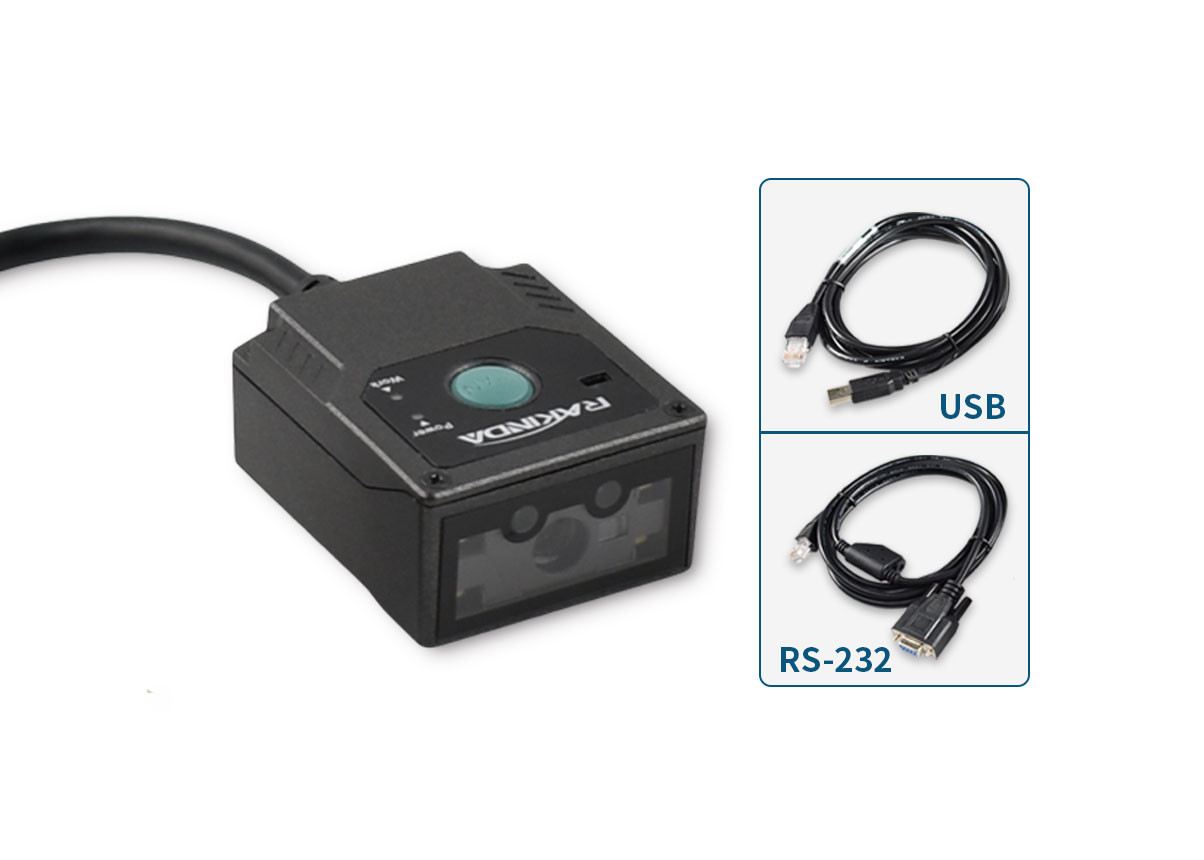

Self Machine OCR MRZ LV3000U Fixed Mount Barcode Scanner 0

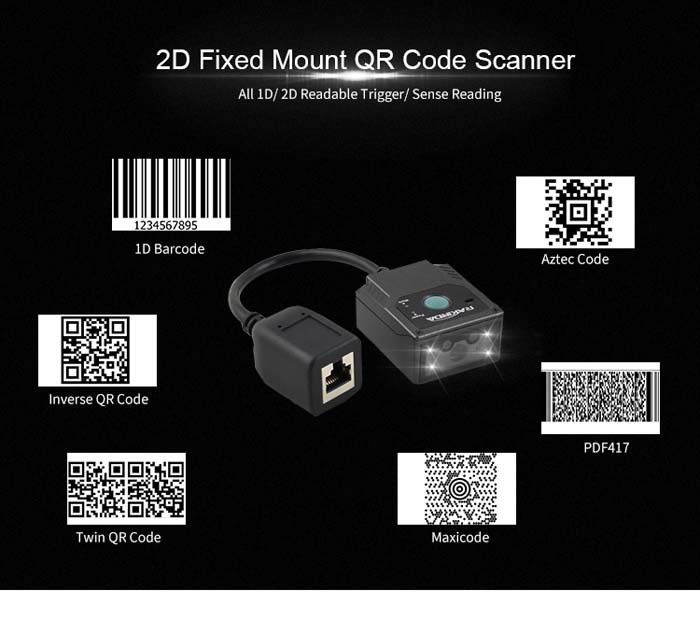

Self Machine OCR MRZ LV3000U Fixed Mount Barcode Scanner 1

LV3000U Fast Decoding Fixed Mount OCR MRZ Barcode Scanner Application Cases:

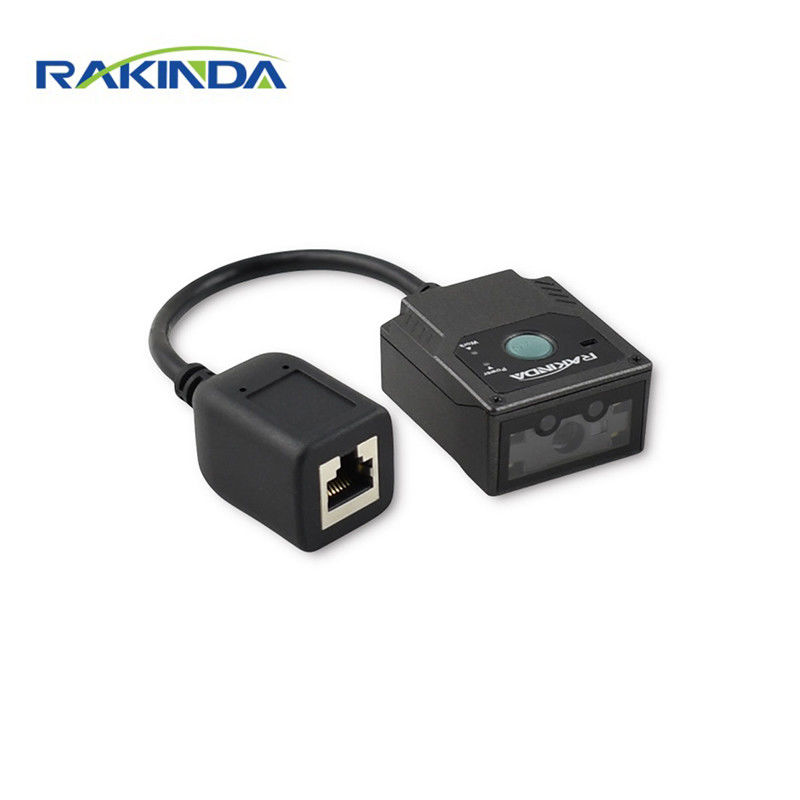

Self Machine OCR MRZ LV3000U Fixed Mount Barcode Scanner 2

Company Profile:

Shenzhen RAKINDA Technology Co., Ltd. is specialized in the development of smart card hardware and software systems, production, sales and operations in one of the national high-tech enterprises. Products are widely used in city card, park area, retail businesses, parking fees, government platforms and other consumer areas. With years of focus on management, innovation and development, the company in the industry
Has a wide range of customer base and industry reputation, to achieve the city card applications and urban bus intelligent scheduling management.RAKINDA engaged in barcode technology research and development for more than 18 years, we have a mature R & D team and overseas markets, we can help you quickly and easily realize unattended dream.

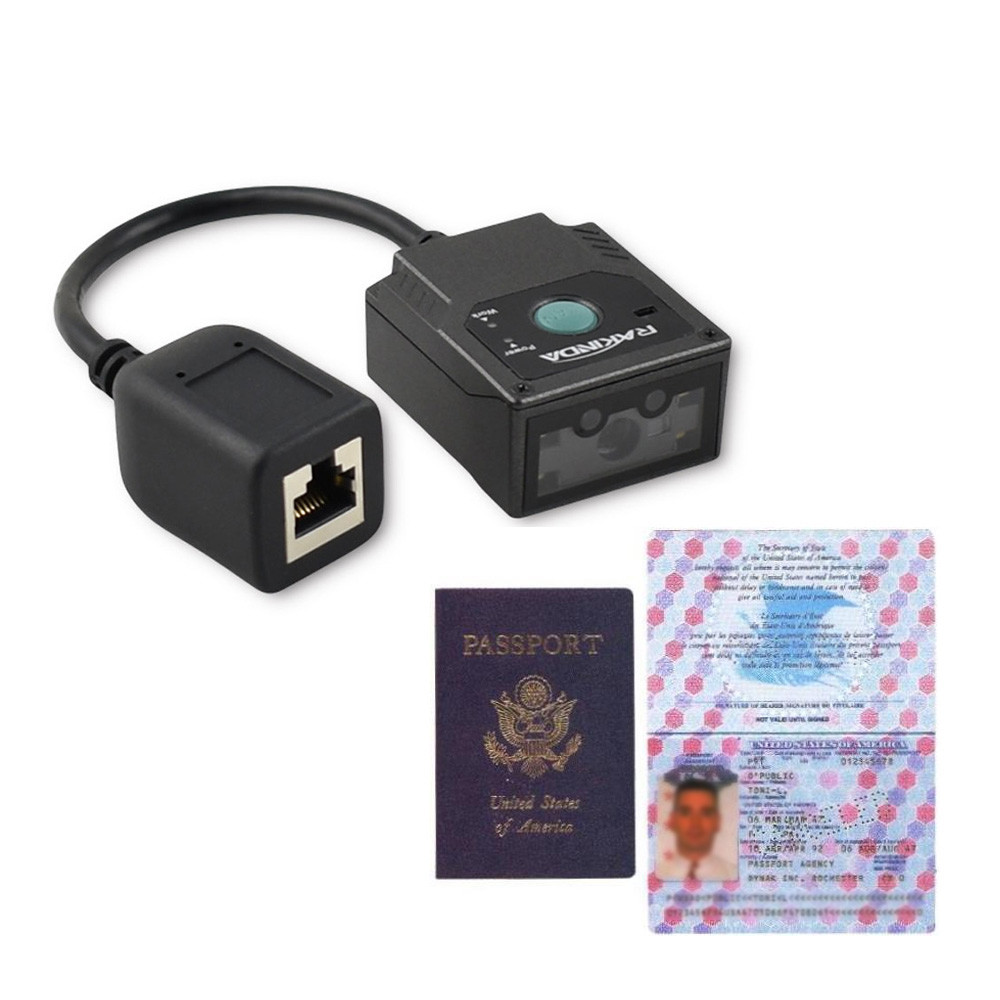

Self Machine OCR MRZ LV3000U Fixed Mount Barcode Scanner 3Self Machine OCR MRZ LV3000U Fixed Mount Barcode Scanner 4

Q: Can I get some samples? Are they free?
A: We support 1pc sample order. Samples should be paid.
Q: Can I get extra cables for the scanners?
A: Yes you can. We will provide according to your request.
Q: How can I buy?
A: We are trade assurance supplier at Alibaba. You can start online order directly. Or pls contact us first according to the contact info. We will send you proper link directly.
Q: What is your payment method?
A: We accept online credit card, TT, Paypal, Western Union.
Q: Can I visit your factory:
A: Yes, you are warmly welcome.
Q: How long is your warranty time:
A: 1 Year.
Q: Where can we download the user manual of the scanners?
A: We will send by email after you get samples.
Q: What's the lead time?
A: For sample, it is typically within 3 days. For bulk order, it depends on quantity and model you order.
Q: Can you provide OEM service?
A: Yes. We need further discuss about details.
Q: How do you ship the scanners usually?
A: Since it is light and compact, we usually use DHL, UPS, Fedex, TNT and post air mail.
