QR Code CMOS USB RS232 RD4500R 2D Scan Engine OEM Barcode Scanner Module for Payment Terminal

Basic Information
Place of Origin: China
Brand Name: RAKINDA
Certification: CE,FC,ROHS
Model Number: RD4500R
Minimum Order Quantity: 1PCS
Price: Negotiate
Packaging Details: A box contains a scanner and accessory USB/RS232 cable
Delivery Time: 3 to 5 days
Payment Terms: T/T, D/P,Paypal
Supply Ability: 1000pcs/Month
Type: Barcode Reader Scan Element Type: CMOS
Scan Speed: 200 Scans/s Interface Type: USB, RS232
Model Number: RD4500R Novelty: New
Scanning Light Source: Natural Light+LED Size: 82mm(L) X 72mm (W) X 52mm(H)
High Light:

RS232 Barcode Scanner Module

,

RD4500R

,

RD4500R Barcode Scanner Module

QR Code CMOS USB RS232 RD4500R Barcode Scanner Module



CMOS USB RS232 Interface QR Code Scanner Barcode Reader Module



Note: Please indicate whether you want RS232 or USB Version, thanks.

RD4500R 2d scanner-Specification.pdf


QR Code Scanner Features:

1. It can read both printed and phone screen 1D/2D barcodes.
2. Designed with IR sensor, it can read even in total darkness.
3. White LED light source protects users' eyes.
4. Instant reading and decoding within 0.3 sec.
5. Outstanding Power Efficiency.
6. The advanced technology incorporated in the scanner helps to reduce the power consumption and prolong the service life of the device.

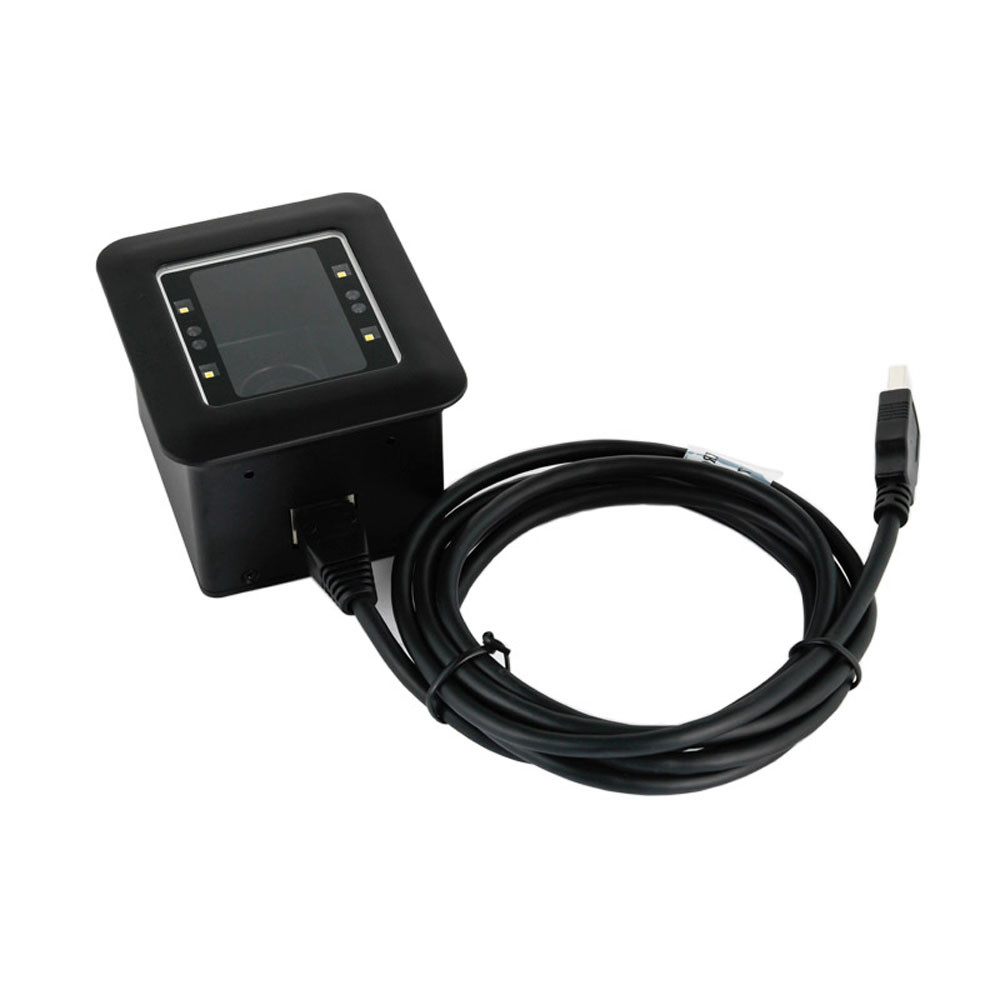

7. USB/RS232 Cable Power Adaptor.

8. It has metal housing and it's industrial grade IP54.

9. It reads close printed or screen bar codes with 5 to 10mil precision.



QR Code Scanner Parameters:

Performance
Processor IOTC 0370 CHIP
Image Sensor 752×480 CMOS
Interface RS-232 (9.6~115.2Kbps) / USB 1.1 (HID-KBW, HID-POS)
Symbologies 2D PDF417, Data Matrix, QR Code
1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 2 of 5, Standard 2 of 5, Matrix 2 of 5, GS1 Databar (RSS-Expand, RSS-Limited, RSS-14), Code 39, Code 11, MSI-Plessey, Plessey
Scan Mode Type Sense mode
Resolution 10mil
Light Source White LED
Scan Window 38.3mm×60.4mm
PCS ≥30%
FOV Diagonal: 85°, Horizontal: 63.7°, Vertical: 70°
Mechanical/Electrical
Power Consumption 1.75W (max.)
Notification Beep
Size (L x W x H) 84×74×50mm
Weight 300g







LV-4500R详情页_02LV-4500R详情页_03

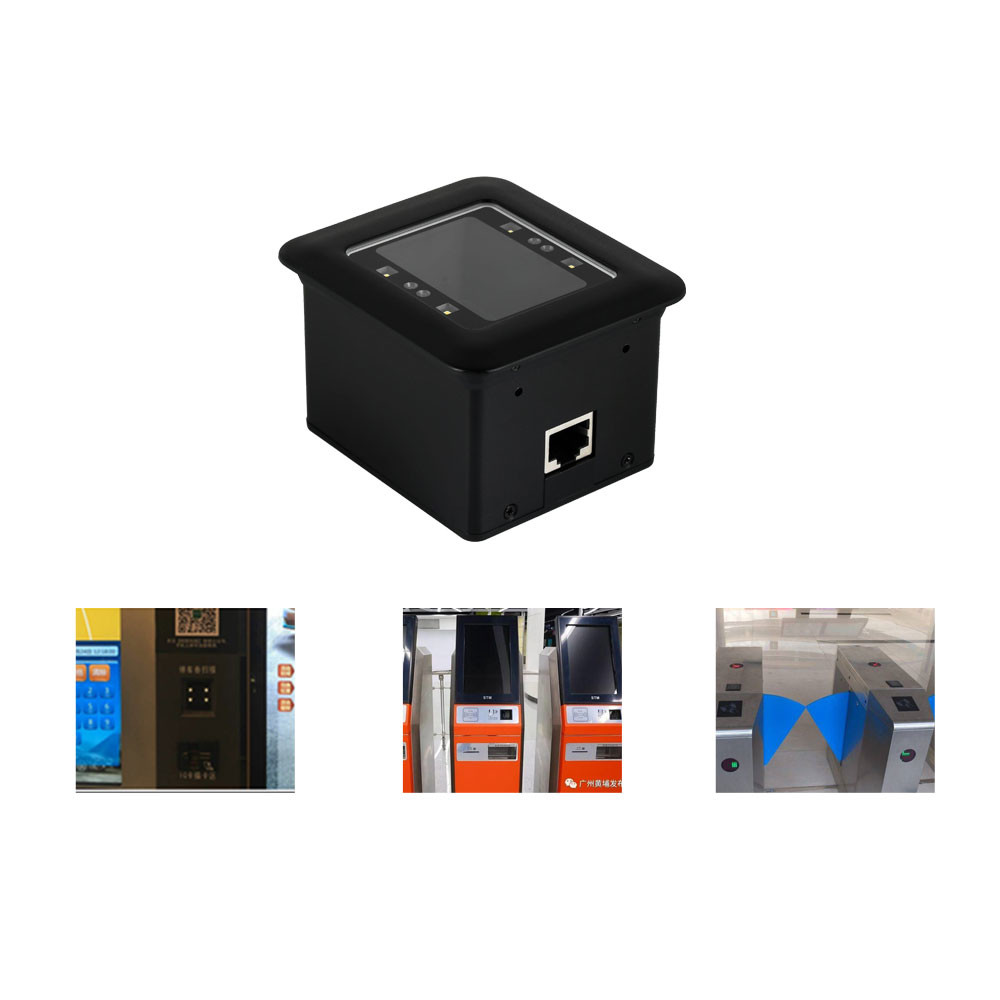

QR Code Scanner Application:

At the same time,small streamlined design makes it perfect for embedding in the various types of self-service machines to use,like Kiosk,Turnstile and Vending machine,very nice.

Compatible OS:Android, Windows, Linux.

Projects:Turnstile, Kiosk, ATM, Payment Terminal, Ticketing Validator, etc.



FAQ:

Q1: Can I get some samples? Are they free?

A1: Of course you can get sample for testing before bulk order, but samples are not free.

Q2: What's the delivery time?

A2: Depend on product and quantity of your order. Usually, samples can be sent to you in 3 work days after your payment.

Q3: What about payment methods?

A3: Payment terms: Online payment, T/T,West Union and Paypal, etc.

Q4: Can you list the product of your company?

A4: Barcode Scanner Module, Bluetooth Barcode/RFID Scanner, Desktop/Handheld Barcode Scanner.

Q5: Where can we download the user manual of your products?

A5: User manual will be sent to you by email after the sample order.

Q6: Warranty time?

A6: 1 year.

Q7: Do you provide Evaluation Kit for testing barcode scanner modules?

A7: Yes,but EVK should be purchased separately.

Q8: Product OEM?

A8: Yes, but it requires certain MOQ and the cost need to be added separately.

Q9: Customer service?

A9: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.

Q10: What shiping methods do you have?

A10: Since our products are very small, the common shiping methods are post air mail or fast express.
